Loc-Line 1/4" modular manifold

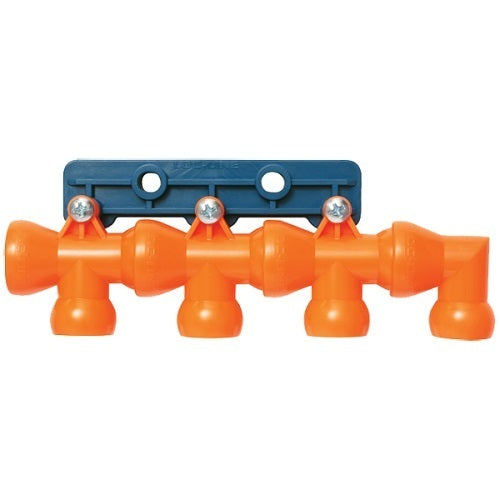

Loc-Line 21199 is the 1/4" modular manifold for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). the range pack list is three 1/4" T's, one 1/4" elbow, one 1/4" manifold bracket and three mounting screws.

The manifold bracket is a separate pack of 2 (21195) and the 1/4" total flow control manifold (21198) as a separate part. A Prop 65 warning applies to 21199 (see the specification).

Where this product is used

• Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
• Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning

Features

• Pack list: (3) 1/4" T's, (1) 1/4" Elbow, (1) 1/4" Manifold Bracket, (3) Mounting Screws
• Made for the 1/4" Loc-Line modular hose system
• Warning printed against 21199: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• System: 1/4" Loc-Line modular hose

Key specifications

Supplied with

• 3 x 1/4" T's
• 1 x 1/4" Elbow
• 1 x 1/4" Manifold Bracket
• 3 x Mounting Screws

Choosing the right option

Choose 21199 when you want the 1/4" fittings, bracket and mounting screws for a manifold in one part number. The 1/4" total flow control manifold (21198) is a different part: its pack list names a modular manifold and five in-line valves. Match the manifold to the hose system: a 1/4" part does not fit hose from another system.

1/4" manifold parts: 1/4" total flow control manifold kit (21198), 1/4" manifold brackets (21195).

1/4" valves and fittings: 1/4" in-line valves (21194, 29454), 1/4" male NPT valves (21192, 29452), 1/4" T fittings.
