Loc-Line 1/8" acid resistant NPT connector, 4
The price shown is for the pack.
Available

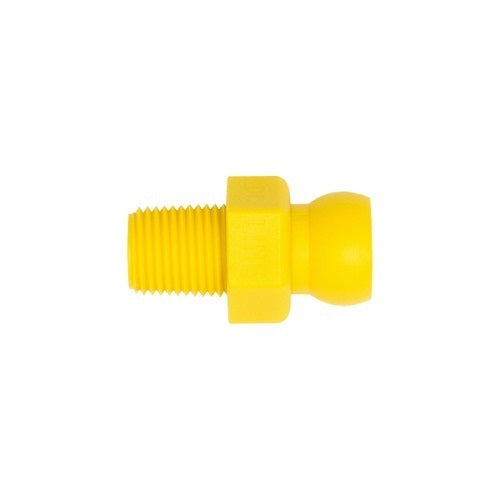

Loc-Line 45405 and 46425 are the 1/8" acid resistant NPT connector in two pack sizes for the 1/4" Loc-Line modular hose system (Lockwood Products, USA). 45405 is a pack of 4 and 46425 is a pack of 50.
These parts are in the 1/4" acid resistant section. Polyester products have a maximum operating temperature of 170 °F and a melting point of 475 °F.
Where this product is used
- Part of the 1/4" acid resistant range, alongside the hose, hose kit, round nozzles, NPT connectors, flare nozzle, socket x FNPT, elbow, T, Y, double socket and swivel nozzles
- Rinsing cycles in plating operations
Features
- Pack of 4 (45405) or pack of 50 (46425): NPT connectors
- For the 1/4" acid resistant system
- Polyester temperature data: maximum operating temperature 170 °F, melting point 475 °F
- Compatibility for polyester products: acids below 150 °F yes, above 150 °F no, strong bases no
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loc-Line |
| Part numbers | 45405 and 46425 |
| System | 1/4" Loc-Line acid resistant modular hose |
| Pack contents | 45405: (4) NPT Connectors, 46425: (50) NPT Connectors |
| Material | Polyester |
| Maximum operating temperature | 170 °F |
| Melting point | 475 °F |
| Chemical compatibility (polyester column) | Acids below 150 °F: yes, acids above 150 °F: no, strong bases: no |
| Pack quantity | 4, 50 |
Choosing the right option
Choose 45405 for a pack of 4 or 46425 for a pack of 50. A 1/4" system part does not fit 1/2" hose.
Other 1/4" acid resistant parts: acid resistant 1/4" NPT connectors (45406, 46426), acid resistant 1/4" hose kit (45463), acid resistant 1/4" hose, 50 ft coil (46421).
Standard (acetal) equivalent: standard 1/8" NPT connectors (41405, 49425).
| Option | Part number | SKU |
|---|---|---|
| 4 | 45405 | A0107200 |
| 50 | 46425 | A0107202 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Loc-Line 1/8" Acid Resistant NPT Connector for 1/4" Modular Hose: 4
SKU: A0107200 | Model: 45405
Loc-Line 45405: 1/8" acid resistant NPT connector for 1/4" hose, pack of 4. Polyester; maximum operating temperature 170 °F.
