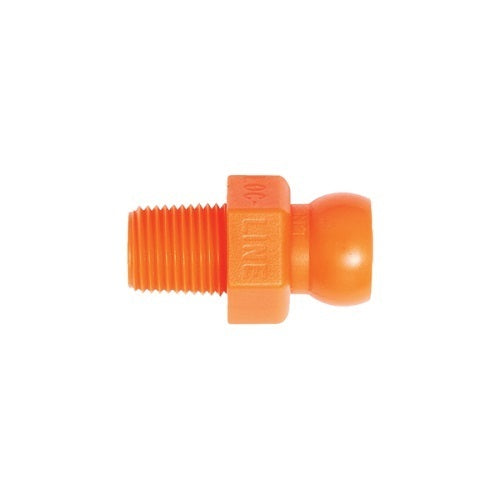

Loc-Line 41405 1/8" NPT Connector for 1/4" Modular Hose, Pack of 4
Available
The 1/8" NPT connector for the 1/4" Loc-Line modular hose system (Lockwood Products, USA) is listed here as 2 variants: 41405 (pack of 4) and 49425 (pack of 50). The catalogue prints it in the connectors section of the 1/4" system. The 1/4" NPT connector (41406 and 49426) is the other NPT size in this system.
Line pressure, flow rate and acetal temperature figures for the 1/4" system are in the specification table (manufacturer-stated).
Where this product is used
- 1/4" system part for machine tool coolant supply: the catalogue says Loc-Line was made to apply liquid coolant at the point of contact between the cutting tool and the target metal (manufacturer-stated).
- Other uses the catalogue names: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning (manufacturer-stated).
Features
- 1/8" NPT connector for the 1/4" Loc-Line modular hose system
- Pack contents: 41405: (4) NPT connectors; 49425: (50) NPT connectors
- The catalogue prints -BLK (black), -G (grey) and -W (white) against the bulk number 49425 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| System | 1/4" Loc-Line modular hose system |
| Part type | 1/8" NPT connector |
| Pack contents | 41405: (4) NPT connectors; 49425: (50) NPT connectors |
| Colour suffixes printed | -BLK (black), -G (grey) and -W (white) against 49425 (manufacturer-stated) |
| Line pressure, 1/4" system | 55 PSI standard; up to 110 PSI with element clamps on all joints, fully tightened (manufacturer-stated) |
| Flow rate, 1/4" system | 250 gal/hr (manufacturer-stated) |
| Acetal temperature data | Maximum operating temperature 170 °F, melting point 329 °F (manufacturer-stated) |
Key specifications
| Part number | Pack contents | Colour suffix |
|---|---|---|
| 41405 | (4) NPT connectors | none printed for this number |
| 49425 | (50) NPT connectors | base number; -BLK, -G, -W printed (manufacturer-stated) |
Pack contents and colour suffixes are taken from the Loc-Line catalogue (2019).
Selecting the right option
The catalogue lists an NPT and a BSPT connector for this size; this is the NPT connector. BSPT is British Standard Pipe Thread (catalogue footnote). Check the thread on your machine fitting before you choose. Pack quantities in this listing: pack of 4: 41405; pack of 50: 49425. The catalogue prints -BLK (black), -G (grey) and -W (white) against the bulk number 49425 (manufacturer-stated); this listing has the base numbers only. Match the part to the hose system: a 1/4" system part does not fit hose from another system.
Related products
Same size, BSPT thread: 1/8" BSPT connectors. Other 1/4" system connectors: 1/4" NPT connectors and 1/4" BSPT connectors. Matching 1/4" system parts: 1/4" hose, 50 ft coil, 1/4" round nozzles, 1/4" male NPT valves and 1/4" assembly pliers. Acid resistant equivalent: acid resistant 1/8" NPT connectors.
