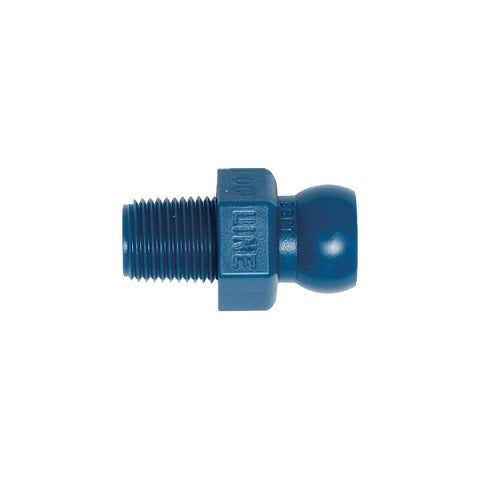

Loc-Line 41417 1/8" BSPT Connector for 1/4" Modular Hose, Pack of 4

The 1/8" BSPT connector for the 1/4" Loc-Line modular hose system (Lockwood Products, USA) is listed here as 2 variants: 41417 (pack of 4) and 49437 (pack of 50). The catalogue prints it in the connectors section of the 1/4" system. The catalogue marks BSPT as British Standard Pipe Thread. The 1/4" BSPT connector (41418, 49438 and 49438-BLK) is the other BSPT size in this system.

Line pressure, flow rate and acetal temperature figures for the 1/4" system are in the specification table (manufacturer-stated).

Where this product is used

• 1/4" system part for machine tool coolant supply: the catalogue says Loc-Line was made to apply liquid coolant at the point of contact between the cutting tool and the target metal (manufacturer-stated).
• Other uses the catalogue names: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning (manufacturer-stated).

Features

• 1/8" BSPT connector for the 1/4" Loc-Line modular hose system
• Pack contents: 41417: (4) BSPT connectors; 49437: (50) BSPT connectors
• The catalogue prints -BLK (black) and -G (grey) against the bulk number 49437 (manufacturer-stated)

Common specifications

Key specifications

Pack contents and colour suffixes are taken from the Loc-Line catalogue (2019).

Selecting the right option

This is the BSPT connector (British Standard Pipe Thread, catalogue footnote); the catalogue also lists an NPT connector for this size. Check the thread on your machine fitting before you choose. Pack quantities in this listing: pack of 4: 41417; pack of 50: 49437. The catalogue prints -BLK (black) and -G (grey) against the bulk number 49437 (manufacturer-stated); this listing has the base numbers only. Match the part to the hose system: a 1/4" system part does not fit hose from another system.

Related products

Same size, NPT thread: 1/8" NPT connectors. Other 1/4" system connectors: 1/4" BSPT connectors and 1/4" NPT connectors. Matching 1/4" system parts: 1/4" hose, 50 ft coil, 1/4" round nozzles, 1/4" male NPT valves and 1/4" assembly pliers.
