Loc-Line 60533 3/4" Fixed Mount, Pack of 2, Orange

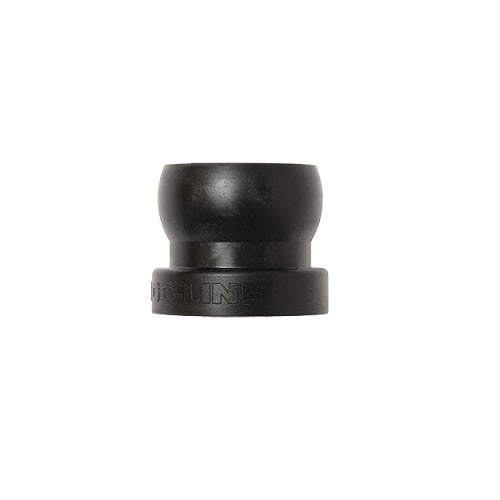

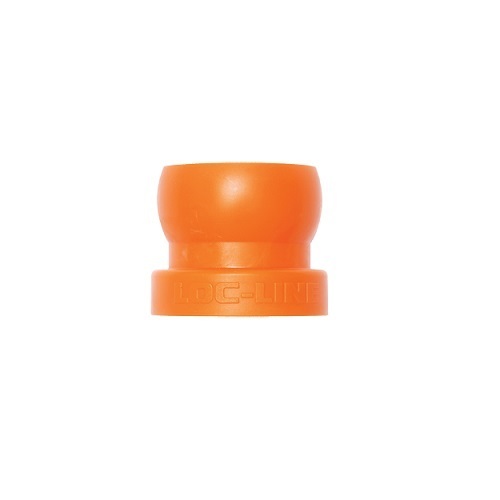

Loc-Line 60533 and 69563 are 3/4" fixed mounts for the 3/4" Loc-Line modular hose system (Lockwood Products, USA): the catalogue lists 60533 for the pack of 2 and 69563 for the pack of 20. This listing has three variants: 60533 in orange (pack of 2), 69563 in orange (pack of 20) and 69563-BLK in black (pack of 20). Orange is the store colour option for the base part number; black comes from the -BLK suffix (manufacturer-stated).

The catalogue prints the note "Mounts with 1/4" bolt, not included" against the 3/4" fixed mount (manufacturer-stated). It prints -BLK (black) and -G (grey) suffixes against the pack of 20 number 69563 (manufacturer-stated). The catalogue also says the 3/4" assembly pliers (78004) will not assemble the 3/4" fixed mount (manufacturer-stated).

Where this product is used

• Machine tool coolant supply: the catalogue says Loc-Line was made to apply liquid coolant at the point of contact between the cutting tool and the target metal (manufacturer-stated).
• Other uses the catalogue names: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning (manufacturer-stated).

Features

• 3/4" fixed mount: 60533 is the pack of 2 and 69563 the pack of 20
• Catalogue note: "Mounts with 1/4" bolt, not included" (manufacturer-stated)
• Colours in this listing: black and orange (orange is the store colour option for the base part number)
• Colour suffixes printed for 69563: -BLK (black) and -G (grey) (manufacturer-stated)

Common specifications

Key specifications

Pack contents and colour suffixes are taken from the Loc-Line catalogue (2019). Orange is the store colour option for the base part number.

Selecting the right option

This listing has three variants: 60533 in orange (pack of 2), 69563 in orange (pack of 20) and 69563-BLK in black (pack of 20). Choose the colour and the pack: 60533 is the pack of 2 and 69563 the pack of 20; the catalogue prints the colour suffixes against 69563 (manufacturer-stated). The 3/4" fixed mount belongs to the 3/4" system. The catalogue note says the 1/4" bolt is not included. The 3/4" assembly pliers (78004) will not assemble this fixed mount (manufacturer-stated).

Related products

Other 3/4" system parts: 3/4" magnetic base (60532), 3/4" male NPT valves (61516, 69556), 3/4" in-line valves (61518, 69558) and 3/4" hose assembly pliers (78004).
