Loc-Line 1/2" modular hose
Available

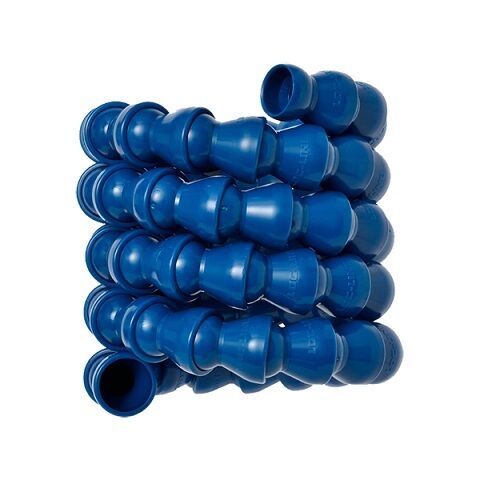

Loc-Line 59859 is a 5 ft coil of 1/2" modular hose. It belongs to the 1/2" Loc-Line modular hose system (Lockwood Products, USA), where 1 segment counts as 6 elements. This is the base part number 59859, with no colour suffix.
The hose is a ball and socket assembly with enough friction between the parts for it to stay in position once set. The 1/2" system has a standard line pressure of 30 PSI with a flow rate of 478 gal/hr, and up to 75 PSI with element clamps on all joints, fully tightened. every application has variables that affect the maximum hose pressure; testing is recommended whenever possible. Standard acetal parts, which include the blue, black, grey and white colours, with a maximum operating temperature of 170 °F and a melting point of 329 °F.
Where this product is used
- Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
- Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning
Features
- Ball and socket hose that stays in position once set
- Contents (1) 5 ft coil, the range counts 1 segment as 6 elements
- Standard line pressure 30 PSI at 478 gal/hr for the 1/2" system, up to 75 PSI with element clamps on all joints, fully tightened
- Acetal: maximum operating temperature 170 °F, melting point 329 °F
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loc-Line |
| System | 1/2" Loc-Line modular hose |
| Pack contents | (1) 5 ft coil |
| Hose construction | 1 segment = 6 elements |
| Colour suffixes | -BLK (black), -G (grey) and -W (white) |
| Line pressure, 1/2" system | 30 PSI standard, up to 75 PSI with element clamps on all joints, fully tightened |
| Flow rate, 1/2" system | 478 gal/hr |
| Acetal temperature data | Maximum operating temperature 170 °F, melting point 329 °F |
Choosing the right option
It is available in the base part number only. The colour suffixes for this hose are -BLK (black), -G (grey) and -W (white), added to the part number when ordering. Match every nozzle, fitting and clamp to the hose system: a 1/2" system part does not fit hose from another system. Use element clamps on all joints if you want to work above the standard line pressure.
Other 1/2" hose parts: 1/2" hose, 50 ft coil (59861), 1/2" hose segments, bulk 25 ft (59860), 1/2" hose segments, pack of 2 (51801).
Matching 1/2" system parts: 1/2" round nozzles, 3/8" round nozzles, 1/2" NPT connectors.
Acid resistant 1/2" hose parts: acid resistant 1/2" hose, 50 ft coil, acid resistant 1/2" hose segment pack.
