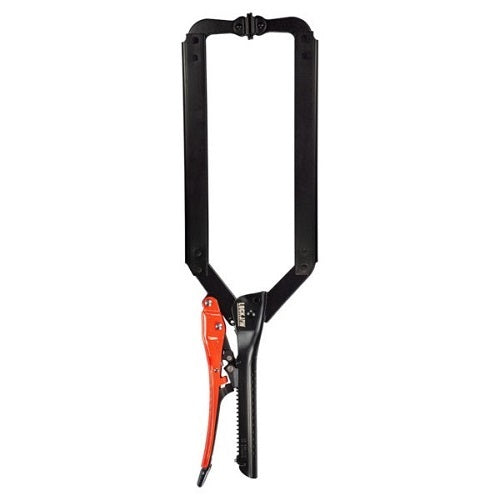

Lockjaw L2160480 480mm (19" )C Clamp Swivel Pad Chrome Molybdenum

The Lockjaw L2160480 is the longest Lockjaw locking C-clamp: 455mm, with swivel pads and a 220mm jaw opening. The deep throat reaches into large panels and frames, and the swivel pads let the clamp sit flat on angled work without denting or gouging delicate surfaces. It suits fabricators, welders and maintenance crews holding big work. A locking C-clamp is a locking plier built in a C shape. It holds work like a clamp, hands free, until you squeeze the release lever.

Ordinary locking pliers need two hands to set the jaw opening for each job. Lockjaw pliers adjust themselves: set the clamp pressure once with the Set and Forget screw, from slight to extreme, and the jaws then close on thick or thin work with the same grip, one-handed. To choose: the same size without swivel pads is the L2150480, also 220mm opening. For smaller jobs, the 330mm swivel pad C-clamp L2140275 opens to 80mm.

Where this product is used

• Clamping large panels, frames and fabrications
• Holding work flat on angled surfaces without marking it
• Hands-free holding while you weld, drill or assemble

Features

• 455mm extended reach C-clamp with swivel pads
• 220mm jaw opening
• Swivel pads allow parallel clamping and prevent denting or gouging on delicate surfaces
• Jaws lock automatically with the highest tip pressure, with no adjusting needed
• Set and Forget pressure control sets the clamp pressure from slight to extreme
• Chrome Vanadium steel for durability and rust prevention
• 15% thinner handle for easier grip and more power
• No pinch, easy squeeze release lever stays locked until you release it

Key specifications
