Loctite 222 Low Strength Threadlocker 10ml

$18.19

Inc. GST

Available

Loctite 222 is a one-component, purple, low strength anaerobic threadlocker. It locks and seals threaded fasteners that need easy disassembly with standard hand tools.

Henkel lists it for the adjustment of set screws and for small-diameter or long-engagement fasteners. It is a thixotropic liquid that fluoresces under UV light.

Where this product is used

Threaded fasteners that need easy disassembly with standard hand tools
Adjustment of set screws
Small-diameter fasteners
Long-engagement fasteners

Features

Low strength, removable with standard hand tools
One component, no mixing
Purple liquid with positive fluorescence under UV light, useful for inspection
Low viscosity, thixotropic
Anaerobic cure, with an activator as secondary cure
Breakaway torque 6 N·m on M10 steel nuts and bolts

Key specifications

Specification	Detail
Chemical type	Dimethacrylate ester
Colour	Purple liquid, fluorescence positive under UV light
Viscosity (Brookfield RVT, spindle 3, 25 °C, 20 rpm)	900 to 1,500 mPa·s
Viscosity (Brookfield RVT, spindle 3, 25 °C, 2.5 rpm)	At least 3,500 mPa·s
Specific gravity	1.05 at 25 °C
Breakaway torque (M10 steel nuts and bolts, 24 h at 22 °C, ISO 10964)	6 N·m
Prevail torque (M10 steel)	4 N·m
Breakloose torque (pre-torqued to 5 N·m)	14 N·m
Compressive shear strength (ISO 10123, steel pins and collars)	At least 2.5 N/mm²
Secondary cure	Activator (SF 7471 or SF 7649)
Storage	8 °C to 21 °C, unopened, dry
Technical data sheet	Henkel TDS May 2022 (Reference 0.5)

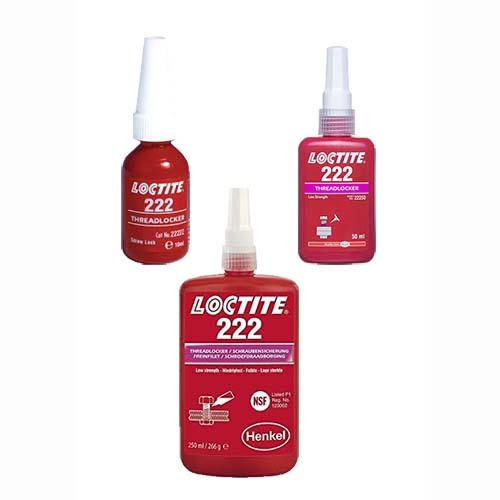

Available sizes

Size	SKU

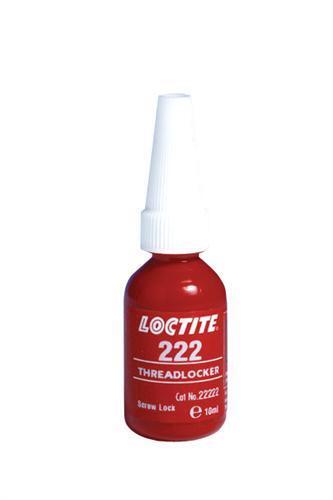

10 ml	A0049857

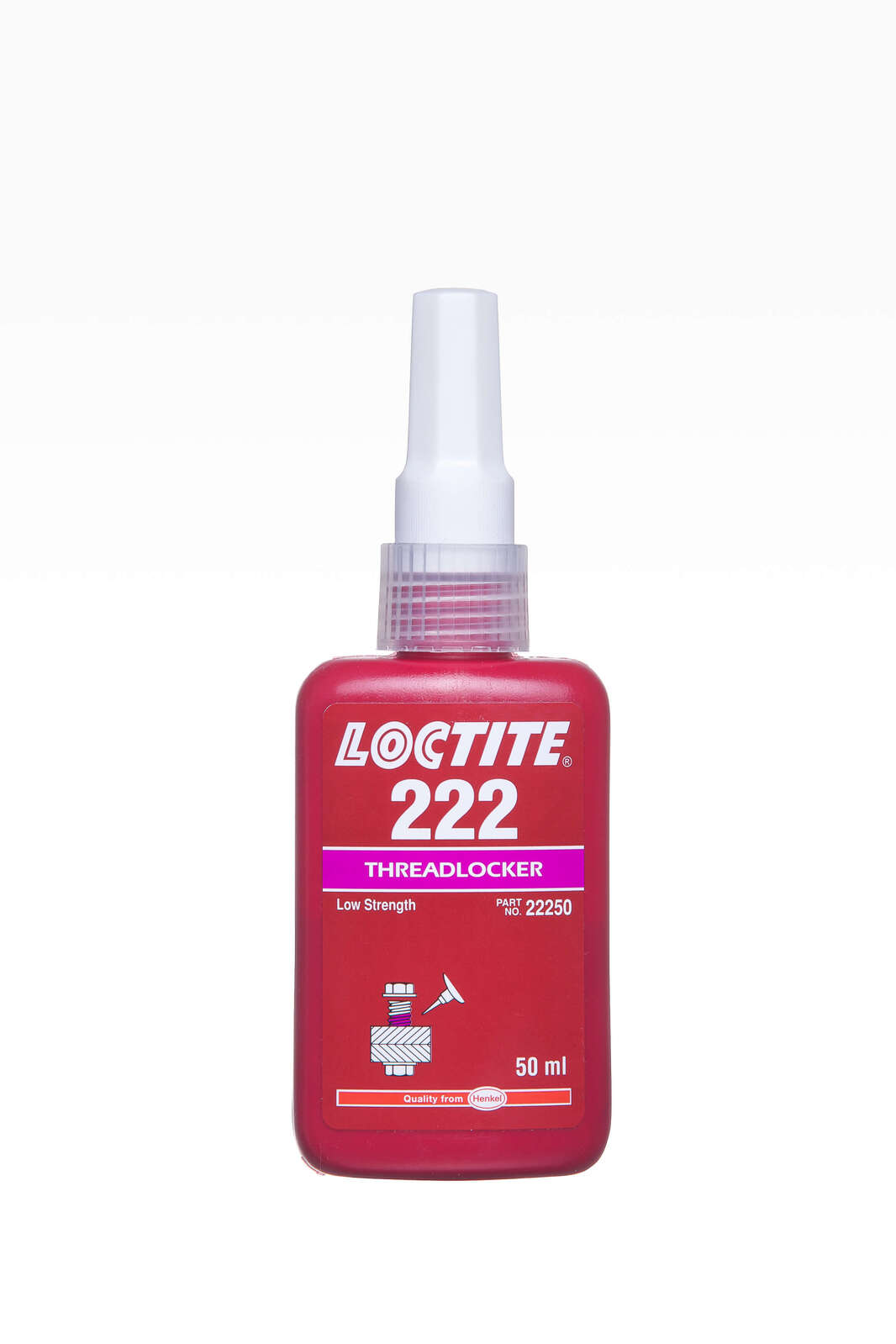

50 ml	A0049855

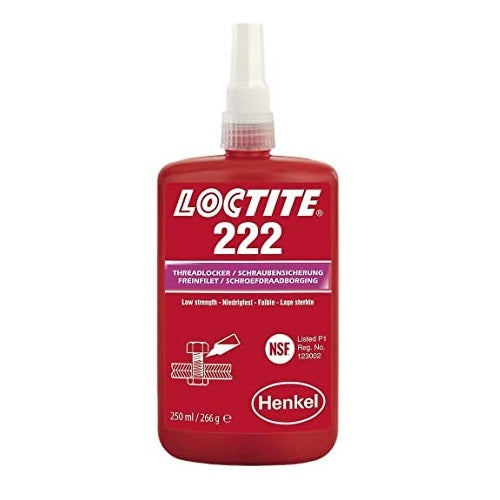

250 ml	A0049846

Selecting the right option

Loctite 222 is the low strength grade. For medium strength see Loctite 243 Medium Strength Threadlocker or Loctite 242 Threadlocker Anaerobic Adhesive Blue 50ml; for high strength see Loctite 263 High Strength Threadlocker.

Using it

Henkel designs Loctite 222 for fasteners that need easy disassembly with standard hand tools. For bigger threads and voids, adjust the amount of product accordingly.

Cure speed depends on the materials, the gap and the temperature; the cure-speed graphs are in the Henkel data sheet.

Remove with standard hand tools. Rarely, localised heat to approximately 250 °C is needed.

Storage and handling

Store unopened in a dry location. Optimal storage is between 8 °C and 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidising materials. Plastics can stress crack, and compatibility should be checked after aqueous washes.

Frequently asked questions

How strong is Loctite 222?

It is a low strength threadlocker: breakaway torque 6 N·m and prevail torque 4 N·m on M10 steel nuts and bolts after 24 hours at 22 °C (ISO 10964).

Can small screws be removed without damage?

Henkel designs Loctite 222 for fasteners that need easy disassembly with standard hand tools, and lists it for set screws and small-diameter fasteners.

What colour is Loctite 222?

Purple, and it fluoresces under UV light, which helps with inspection.

How fast does Loctite 222 cure?

Cure speed depends on the materials, the gap and the temperature. The breakaway strength against time graphs are in the Henkel data sheet.

Does Loctite 222 have any approvals?

The current Henkel data sheet lists no approvals; contact AIMS if you need a certificate for a specific application.

How do I remove Loctite 222?

With standard hand tools. Rarely, localised heat to approximately 250 °C is needed.
