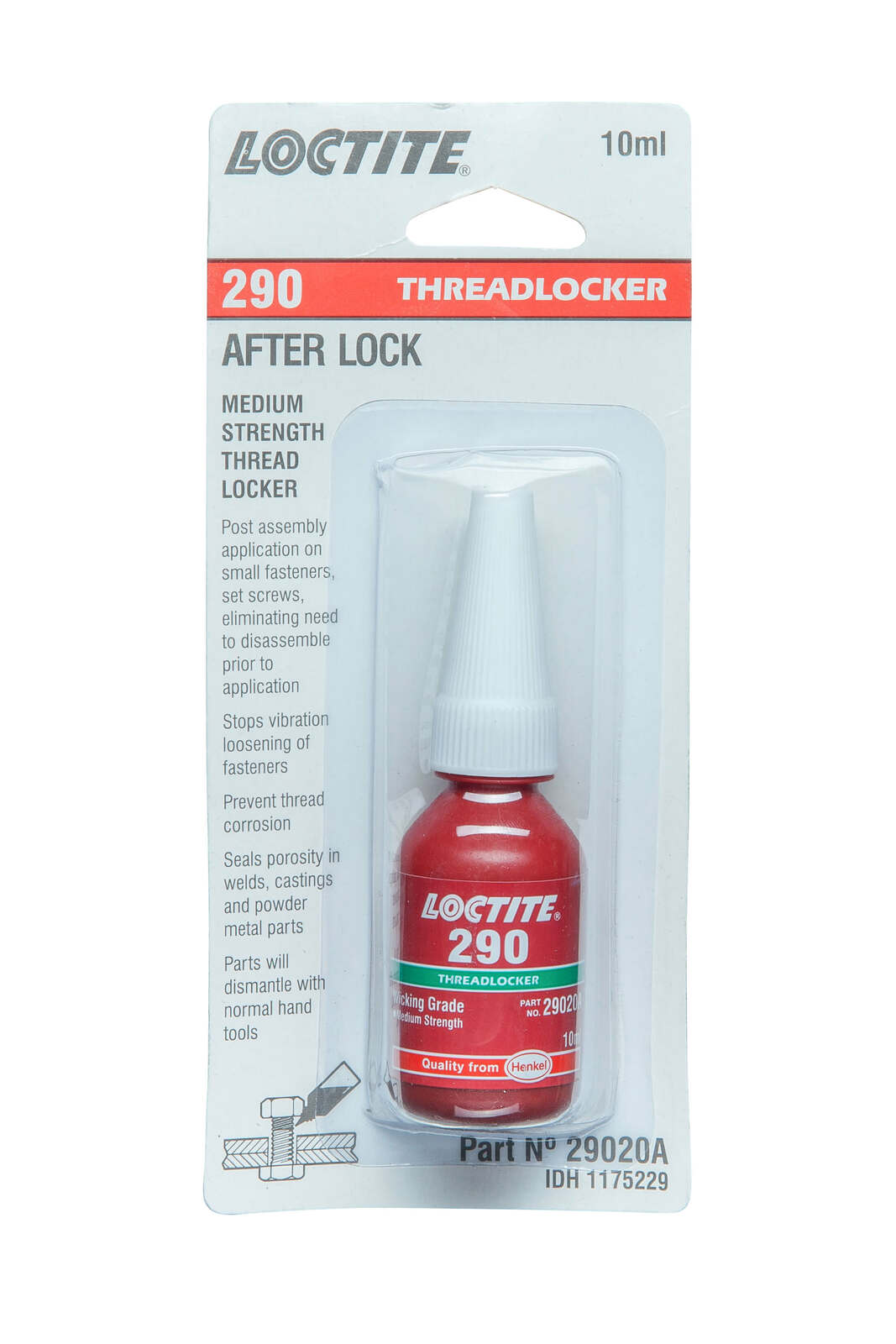

Loctite 290 Medium to High Strength Threadlocker 10ml

Loctite 290 is a one-component, green, medium to high strength anaerobic threadlocker (dimethacrylate ester) with a low viscosity. Henkel describes it for threadlocking and sealing pre-assembled threaded fasteners.

Capillary action draws it between engaged threads, so the fastener does not need to be taken apart. It can also fill porosity in welds, castings and powdered metal parts.

Where this product is used

• Locking and sealing pre-assembled threaded fasteners without taking them apart
• Through-hole fasteners, with several drops applied at the screw and body juncture
• Filling porosity in welds, castings and powdered metal parts
• Assemblies already built, where applying a liquid before assembly is not an option

Features

• Medium to high strength
• Low viscosity, 20 to 55 mPa·s, wicks between engaged threads by capillary action
• One component, no mixing
• Green liquid with positive fluorescence under UV light
• Anaerobic cure, with an activator (SF 7471 or SF 7649) as a secondary cure
• 10 N·m breakaway and 29 N·m prevail torque on M10 steel
• At least 5.4 N/mm² compressive shear on steel pins and collars

Key specifications

Available sizes

Selecting the right option

Use Loctite 290 when the fastener is already assembled. If you can apply the product before assembly, compare Loctite 243 Medium Strength Threadlocker (medium strength) and Loctite 263 High Strength Threadlocker (high strength).

Using it

For through holes, apply several drops at the screw and body juncture. Avoid touching the bottle tip to the metal surface.

An activator (Loctite SF 7471 or SF 7649) can be used as a secondary cure.

Cure speed depends on the materials, the gap and the temperature; the cure-speed graphs are in the Henkel data sheet. The data sheet gives no fixture time and no maximum gap; cure was tested at 0.05 and 0.15 mm gaps.

Henkel states no operating temperature range. Hot strength is graphed from 0 to 150 °C, and heat ageing at 100, 120 and 150 °C.

Storage and handling

Store unopened in a dry location. Henkel gives 8 °C to 21 °C as the optimal range. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidisers. Not normally recommended for plastics, as stress cracking can occur. Check compatibility after aqueous washes.

Frequently asked questions

Can Loctite 290 be used on fasteners that are already assembled?

Yes. Because of its low viscosity and capillary action it wicks between engaged threads, so the fastener does not need to be taken apart.

What is the viscosity of Loctite 290?

20 to 55 mPa·s (Brookfield RVT, 25 °C, spindle 1, 50 rpm).

Does Loctite 290 seal porosity?

Henkel states it can fill porosity in welds, castings and powdered metal parts.

Is Loctite 290 medium or high strength?

Henkel lists medium to high strength. On M10 steel nuts and bolts after 24 hours at 22 °C, breakaway is 10 N·m and prevail torque is 29 N·m (ISO 10964).

What temperature can Loctite 290 handle?

The Henkel data sheet states no operating temperature range. Hot strength is graphed from 0 to 150 °C, so check that graph against your service temperature.

What approvals does Loctite 290 list?

Tested to the lot requirements of Mil-S-46163A, which Henkel calls a regional approval, and ASTM D5363 for lots produced in North America.
