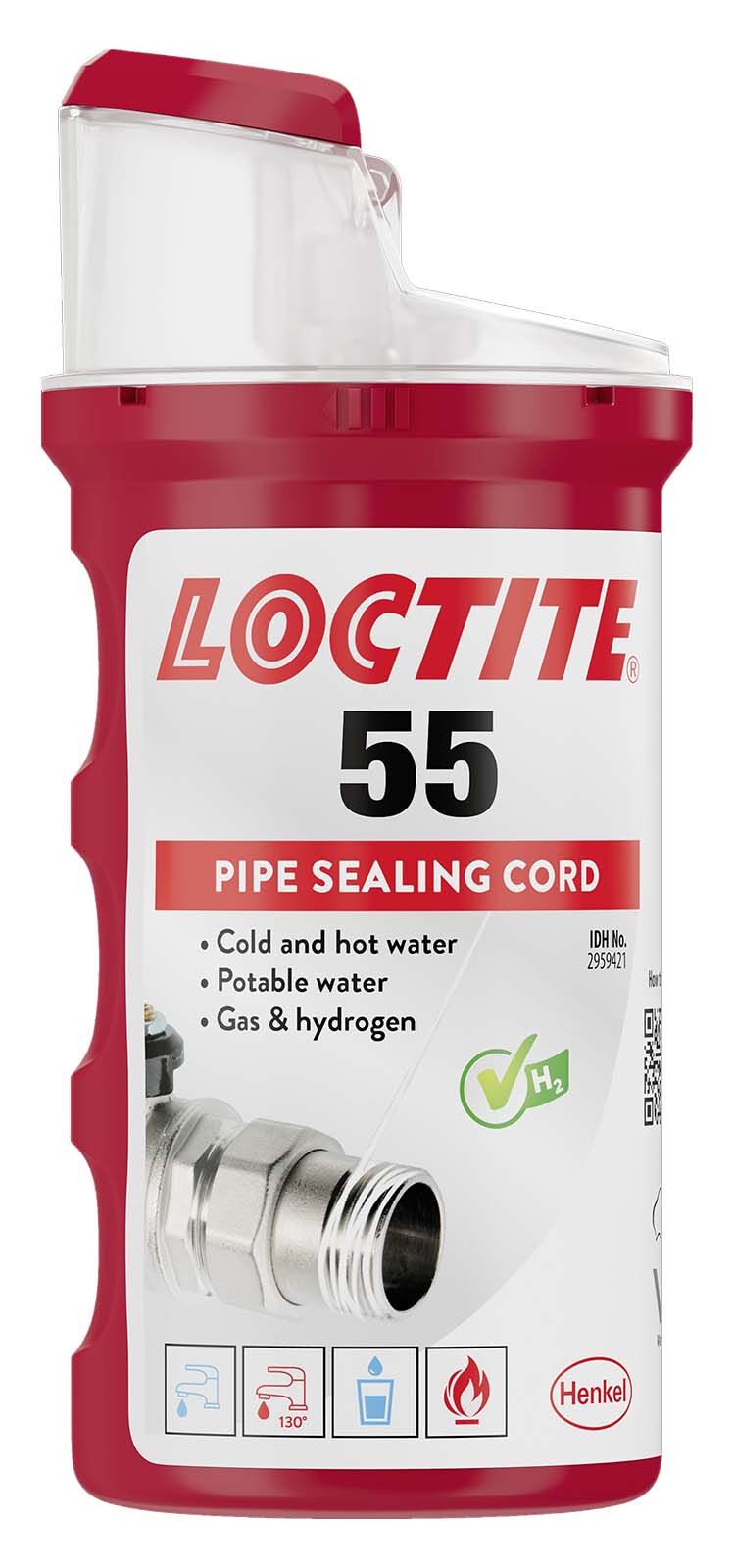

Loctite 55 Pipe Sealing Cord 150m

Loctite 55 is a white, non-curing pipe sealing cord. It is a polyamide thread coated with an inert proprietary paste, wound from the dispensing package onto the threads.

Henkel lists it for metal and plastic tapered pipe threads and fittings up to 4 inch NPT, in industrial use with aqueous and non-aqueous fluids. It suits assemblies that need immediate use and may need slight readjustment: the joint can be adjusted up to 45 degrees after tightening.

Where this product is used

• Tapered metal and plastic pipe threads and fittings up to 4 inch NPT
• Industrial pipework carrying aqueous and non-aqueous fluids
• Assemblies needed for immediate use that may be readjusted slightly
• Cold water and compressed air on plastic pipe threads
• Gas, hot water and potable water joints where a regional approval applies (see the specification)

Features

• White coated cord, non-curing
• Polyamide thread with inert proprietary paste
• Wound from the dispensing package straight onto the threads
• Joint can be adjusted up to 45 degrees after tightening
• Pressure resistance and sealability to 69 MPa hydraulic at 23 °C (ASTM D1599, 3/8 NPT steel tees and plugs)
• Steam tested on 1.5 inch NPT at 0.17 MPa and 130 °C for 1,000 hours
• Typically used in applications up to 149 °C

Key specifications

Selecting the right option

Loctite 55 is a non-curing cord, so it does not lock the thread. For an anaerobic liquid or paste sealant on metal threads see Loctite 577 Medium Strength Thread Sealant or Loctite 567 PST Low Strength Thread Sealant. For a sealant made for plastic pipe, see Loctite 5331 Plastic Pipe Sealant 100ml.

Using it

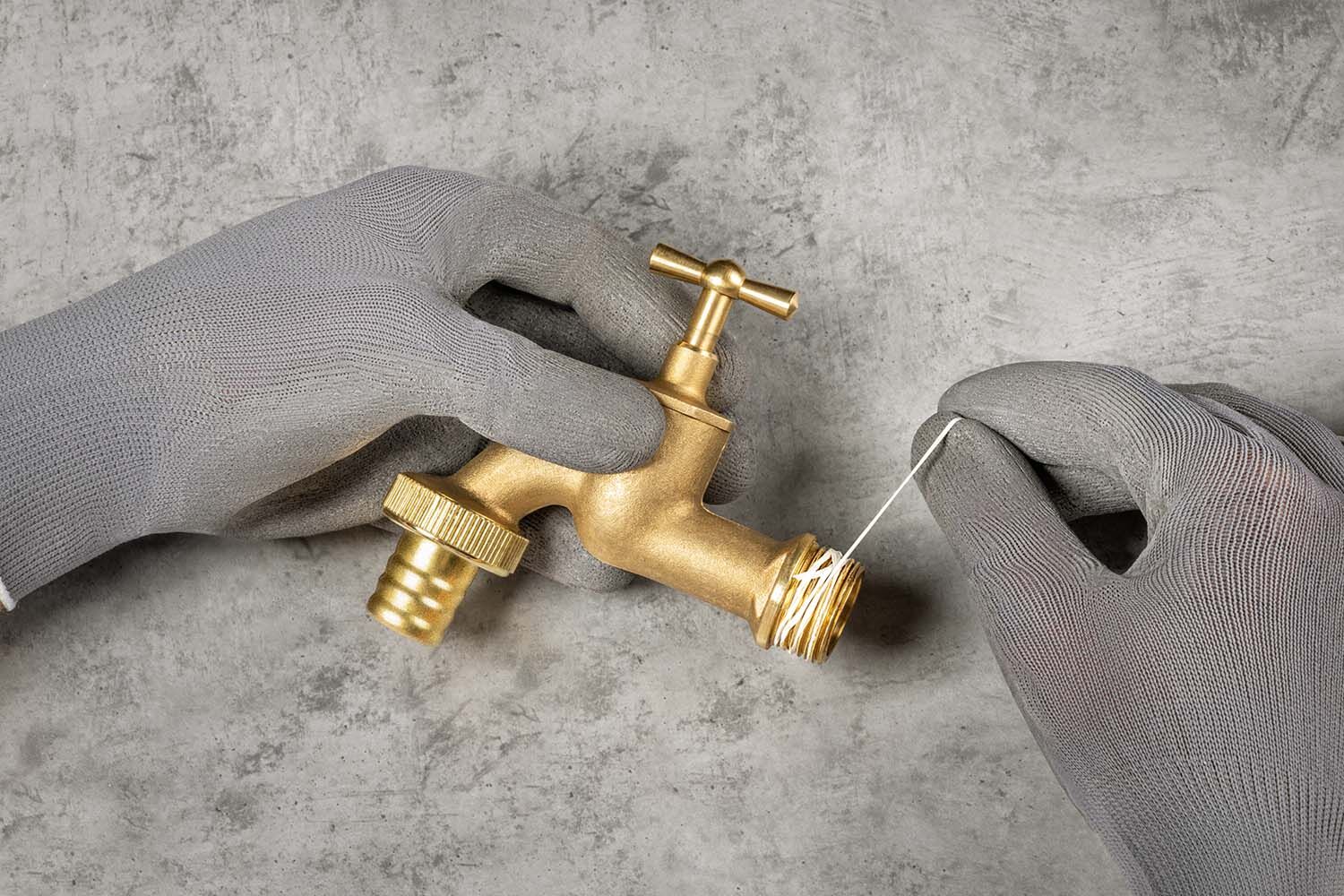

Wind the cord from the dispensing package onto the threads. The cord does not cure, so the joint can be adjusted up to 45 degrees after tightening.

Henkel says approvals marked regional should be confirmed with its local Technical Service Center for your application.

Storage and handling

Store unopened in a dry location. Optimal storage is between 8 °C and 21 °C. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidisers. The Henkel data sheet marks the NSF, AGA, hydrogen and other approvals as regional, so confirm them for your application. Read the safety data sheet before use.

Frequently asked questions

Can the joint be adjusted after tightening with Loctite 55?

Yes. Loctite 55 can be adjusted up to 45 degrees after tightening.

What temperature can Loctite 55 be used at?

Henkel states it is typically used in applications up to 149 °C. The Australian Gas Association certificate gives a working temperature of -10 to 150 °C.

What pressure was Loctite 55 tested to?

69 MPa (690 bar) hydraulic at 23 °C, ASTM D1599, on 3/8 NPT steel tees and plugs pre-torqued to 27 N·m.

Is Loctite 55 approved for potable water?

The data sheet lists NSF/ANSI 61 for potable water not exceeding 82 °C, and a BS 6920 potable water approval that meets the WRC and BGA KTW specifications for cold and hot water. These are regional approvals, so confirm for your application.

Can Loctite 55 be used on gas and hydrogen lines?

Henkel lists EN 751-2 class ARp with DVGW approval, Australian Gas Association certificate 3207 (Class III, 2,000 kPa) and hydrogen conformity to GASTEC QA AR-214. All are regional approvals, so confirm them for your application.

Does Loctite 55 work on plastic pipe threads?

Henkel states it provides sealing against cold water and compressed air on plastic pipe threads when applied properly in sufficient amount.

Related products

See also: Loctite 5331 Plastic Pipe Sealant 100ml, Loctite 577 Medium Strength Thread Sealant, Loctite 567 PST Low Strength Thread Sealant, Loctite 565 PST Thread Sealant 50ml, Loctite 542 Medium Strength Thread Sealant.
