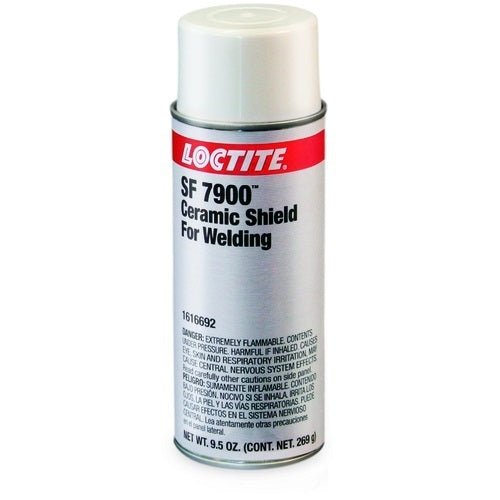

Loctite SF 7900 Ceramic Shield Anti-Spatter for Welding 270g

Loctite SF 7900 Ceramic Shield, also known as Loctite Ceramishield, is a ceramic dry-film protective coating for MIG/MAG welding processes. It is a silicone-free boron nitride coating supplied as a 270 g spray with a propane/butane propellant.

Applied to contact tips and welding nozzles, it prevents spatter adhesion and gives significantly longer processing times without cleaning, with reduced downtime. It also protects jigs, fixtures or fittings, power cables, sensors, metal components and the jaws of spot welding systems.

Where this product is used

• Contact tips and welding nozzles on MIG/MAG welding equipment
• Jigs, fixtures and fittings near the weld
• Power cables and sensors
• Jaws of spot welding systems
• Plasma torch or cutter tips, with the air purge kept on during application
• Other metal components that need protection from spatter

Features

• Ceramic dry-film coating based on boron nitride
• Silicone-free
• Translucent liquid that leaves a white film as the solvents evaporate
• Dries in 5 to 10 seconds at room temperature; thicker films need longer
• Once welding begins, the film hardens on the equipment surface from the heat
• Surfaces not exposed to extra heat can be used straight after drying
• Spray application from about 10 to 15 cm

Key specifications

Selecting the right option

To clean and degrease the surface before spraying, see Loctite SF 7063 General Purpose Cleaner - 400ml Aerosol or Loctite SF 7840 Biodegradable Cleaner Degreaser.

Henkel's data sheet describes this product for MIG/MAG welding processes.

Using it

Clean and degrease the surface. Shake the can for at least 1 minute, then spray from about 10 to 15 cm. Apply sparingly, as excessive thickness causes the film to flake off.

Apply at temperatures below 65 °C. On a plasma torch or cutter tip, keep the air purge on during application.

The film dries within 5 to 10 seconds at room temperature; thicker films need longer. Once welding begins, the film hardens on the equipment surface from the heat generated.

Storage and handling

Store in the unopened container in a dry location. Henkel gives 8 °C to 21 °C as the optimal range. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.

Limits and safety

Not recommended for pure oxygen or oxygen-rich systems, and not to be selected as a lubricant for chlorine or other strong oxidising materials. Read the safety data sheet before use.

Frequently asked questions

How long does Loctite SF 7900 take to dry?

It dries by solvent evaporation within 5 to 10 seconds at room temperature. Thicker films need longer.

Does Loctite SF 7900 contain silicone?

No. Henkel states it is silicone-free.

How do I apply Loctite SF 7900?

Clean and degrease the surface, shake the can for at least 1 minute, and spray from about 10 to 15 cm. Apply sparingly because excessive thickness flakes off, and apply at temperatures below 65 °C.

What welding process is Loctite SF 7900 for?

Henkel describes it as a ceramic dry-film coating for MIG/MAG welding processes. It protects contact tips and nozzles, and also jigs, fixtures, power cables, sensors and the jaws of spot welding systems.

How long does one coat of Loctite SF 7900 last?

Henkel's data sheet gives no figure. It says the coating allows significantly longer processing times without cleaning and reduced downtime.

Does Loctite SF 7900 have any approvals?

The current Henkel data sheet lists no approvals; contact AIMS if you need a certificate for a specific application.
