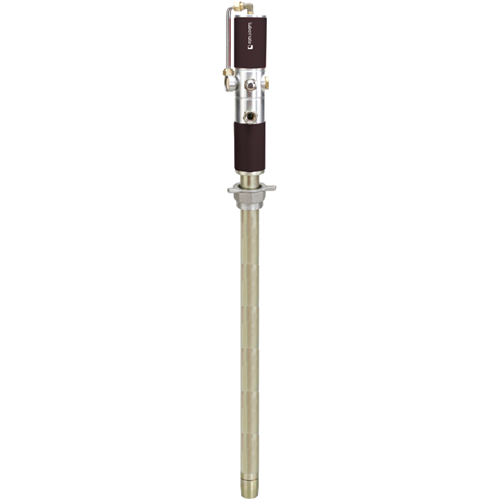

Lubemate 44 gallon Air Operated Oil Pump | AIMS Industrial

Product Features

• 1:1 ratio gives higher flow rate where delivery distance is short
• Up to 40 LPM output, dependent on viscosity
• Handles oils and anti-freeze up to SAE 80
• Wide air pressure range (30-150 psi) suits most workshop compressors
• Air lubricator included for clean air motor operation

Applications

• Oil transfer from 205L drums over short distances
• Anti-freeze and coolant transfer up to SAE 80 viscosity
• Workshop oil top-up where high flow is more important than long delivery distance
• Service vehicle oil dispensing from drum-mounted setups

Technical Specifications

• 1:1 Ratio pumps offer a higher flow rate but limited in delivery distance from drum transfer over short distances
• Suitable for oils or anti-freeze up to SAE 80 viscosity
• Output up to 40LPM, depending on viscosity
• Min/Max air pressure: 30/150psi, air inlet 1/4” BSP(F)
• Pump outlet 1/2” BSP(F), pump inlet 1” BSP(F)
• Wetted materials: steel, brass, aluminum, nitrile rubber, polyurethane and turcite
• Note: Air lubricator supplied
