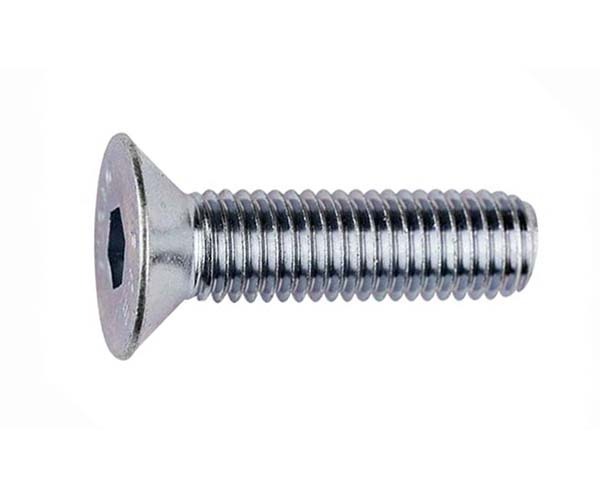

M4 x 8 Flat Head Socket Screw Plain G10.9 - Box of 100
Available
Bremick is an Australian-owned fastener manufacturer and distributor supplying bolts, nuts, screws, washers, threaded rods, socket screws, and anchoring products to construction, engineering, fabrication, and industrial maintenance operations across Australia. This listing is the M4 x 8 Flat Head Socket Screw Plain G10.9 - Box of 100: pitch 0.7mm (coarse thread, calculated), clearance hole (medium fit) 4.5mm (calculated), tapping drill 3.3mm (calculated).
Where this product is used
- Fixture and tooling plates where the work face has to stay flat
- Machine covers and wear plates where a raised head would foul a moving part
- Replacing flat head (countersunk) socket screws of the same thread form, diameter and length
- Workshop jobs where the part is protected by its surroundings
- There is one item, M4 x 8mm, so the table and the part number are the only choices to check.
Choosing the finish
Plain steel carries no protective coating apart from a light oil film, which is why it rusts quickly if it gets wet.
That makes it a good fit for dry indoor work, machinery, and assemblies that are painted, oiled or enclosed after fitting. For anything outdoors or damp, choose a hot dip galvanised or 316 stainless option instead.
Plain alloy steel socket screws are the normal choice for tooling and machine building, where the parts are usually oiled or enclosed.
Thread and strength
For load-critical, structural or lifting joints, confirm the fastener against the engineer's specification. Fasteners are not lifting rated unless marked.
Features
- Uncoated plain steel: paint, oil or enclose it for protection
Key specifications
| Specification | Detail |
|---|---|
| Size | M4 x 8 |
| Grade | G10.9 |
| Finish | Plain (Self Colour) |
| Pack Quantity | 100 pc |
Selecting the right option
Select flat head (countersunk) socket screws by thread form, diameter and length. Length is measured overall, including the head, so allow for the countersink depth in the part being fixed.
