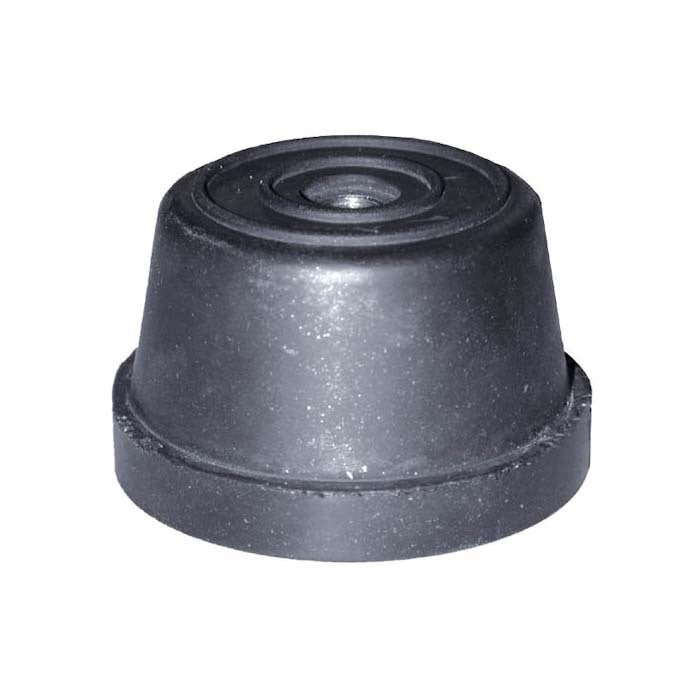

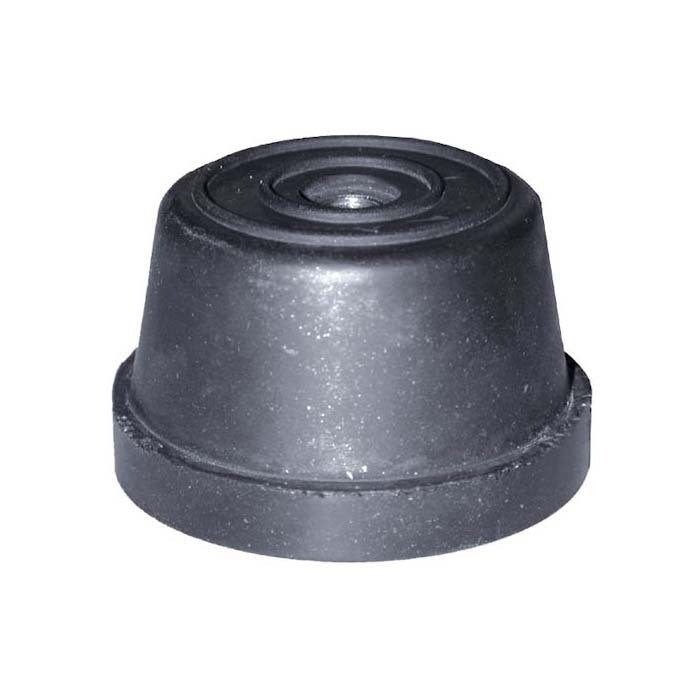

Mackay Conflex Foot Isolator M112235M8

Mackay Conflex Foot Isolator M112235M8 is a free-standing foot isolator. It is similar in style to its existing Conflex range but is supplied without the two-hole fixing flange, so it needs no fixing to the floor: you attach it to the equipment and lower it into position.

It is Duro 35, 58mm wide at the base, 46mm wide across the top and 35mm high, with an M8 thread.

Where this product is used

• Small portable petrol or diesel driven equipment
• Pumps
• Air conditioning units
• Free-standing isolation under a wide range of equipment

Features

• Supplied without the two-hole fixing flange
• Free-standing: no fixing to the floor is needed
• Attaches to the equipment through an M8 thread, then lowers into position
• Base width (A): 58mm

Key specifications

Choosing the right option

Check the equipment weight against the 80kg load, remembering the weight is shared across all the feet you use. The foot sits on the floor unbolted, so it suits equipment that can be left to rest in place. It needs an M8 threaded fixing on the equipment side and about 35mm of height. All properties are nominal. If you want a flanged version that can be bolted down, see the Conflex isolators linked below.
