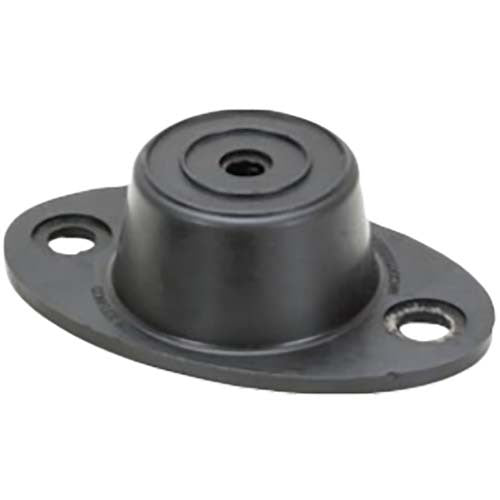

Mackay Conflex isolator, 30kg, 80 x 50 x 28mm
Available
Mackay Conflex isolator is a two-hole elliptical-base machine foot that works in static or mobile installations. Conflex isolators are designed to meet almost all machinery installations within their load range. Available as two Conflex sizes with eight variants. The M1111 series (M111135 to M111165) is 80 x 50 x 28mm with an M8 thread and 6mm deflection; the M1112 series (M111235 to M111265) is 100 x 60 x 32mm with an M10 thread and 6mm deflection.
Where this product is used
- Mobile or static machinery installations within their load range
- Standing equipment on the rubber base without bolting it to the floor: Mackay designs the underside as an anti-skid surface
- Stationary mounting with a centre bolt and nut, gives an easy-to-install machine footing
Features
- Elliptical base with two mounting holes
- Rubber base for anti-skid when used without bolting the base to the floor
- Four rubber hardnesses: Duro 35, 45, 55 and 65
- Mobile mounting uses a bolt and nut with a steel washer and a rubber washer, Mackay does not supply the washers
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Foot Vibration Isolator |
| M1111 series (M111135 to M111165) | 80 x 50 x 28mm, hole spacing 60mm, mounting hole diameter 8.5mm, head diameter 31mm, M8 thread, 6mm deflection, 0.08kg each |
| M1112 series (M111235 to M111265) | 100 x 60 x 32mm, hole spacing 76mm, mounting hole diameter 8.5mm, head diameter 46mm, M10 thread, 6mm deflection, 0.15kg each |
| Hardness options (Duro) | 35, 45, 55 and 65 |

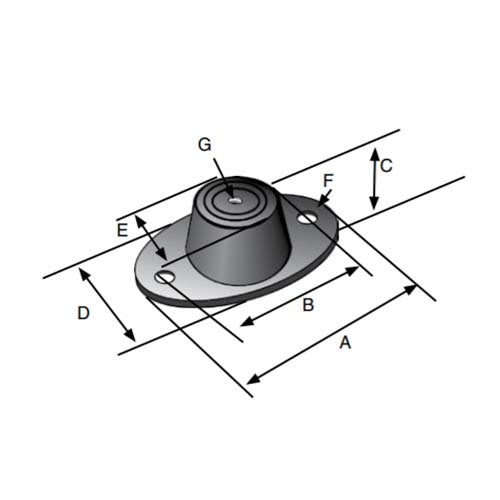

| Size (A x D x C, mm) | 80 x 50 x 28mm, 100 x 60 x 32mm |
| Duro | 35 to 65 |
| Load (kg) | 90 to 160 |
| Deflection (mm) | 6 |
| Thread (G) | M8, M10 |
| Weight (kg) | 0.08, 0.15 |
Choosing the right option
Then check the base against your frame: hole spacing 60mm (M1111) or 76mm (M1112), hole diameter 8.5mm. Mackay does not supply the bolt, nut or washers.
Related Mackay products: Mackay Conflex Isolator Small HD 80 x 50 x 38mm, Mackay Conflex Isolator Medium HD 100 x 60 x 48mm, Mackay Conflex Isolator Large 140 x 85 x 44mm, Mackay Conflex Isolator Neoprene Rubber.
| Option | SKU |
|---|---|
| 30kg / 80 x 50 x 28mm | A0166968 |
| 40kg / 80 x 50 x 28mm | A0166969 |
| 50kg / 80 x 50 x 28mm | A0166970 |
| 75kg / 80 x 50 x 28mm | A0166971 |
| 90kg / 100 x 60 x 32mm | A0166964 |
| 110kg / 100 x 60 x 32mm | A0166965 |
| 160kg / 100 x 60 x 32mm | A0166966 |
| 250kg / 100 x 60 x 32mm | A0166967 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Conflex Isolator: 30 kg / 80 x 50 x 28 mm
SKU: A0166968 | Model: M111135
Mackay A0166968: conflex isolator, 30kg, 80 x 50 x 28mm. Mackay part number: M111135. Hardness (Duro): 35. Load: 38 or 30kg.
