Mackay Neoprene Conflex isolator, 90kg

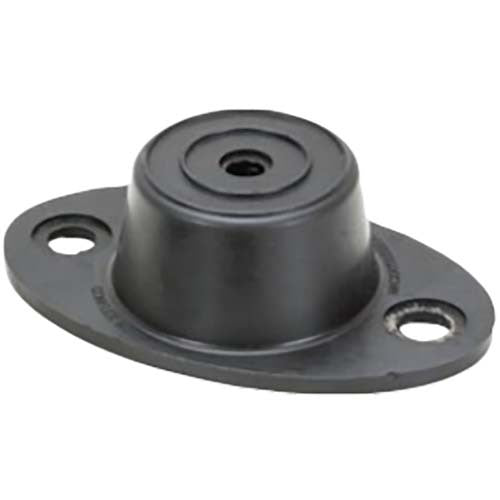

The neoprene Mackay Conflex isolator is the NM12 version of the medium Conflex foot, a two-hole elliptical-base machine foot with an M12 centre thread. Conflex isolators are designed to meet almost all machinery installations within their load range.

This is the neoprene version, marked with the NM12 suffix on the part number. It has three variants, M111235NM12-RED (Duro 35), M111255NM12-GRN (Duro 55) and M111265NM12-GRY (Duro 65), all 100 x 60 x 32mm with an M12 thread and 6mm deflection, with loads of 90 to 250kg.

Where this product is used

• Mobile or static machinery installations within their load range
• Standing equipment on the rubber base without bolting it to the floor: Mackay designs the underside as an anti-skid surface
• Stationary mounting with a centre bolt and nut, gives an easy-to-install machine footing

Features

• Elliptical base with two mounting holes
• Rubber base for anti-skid when used without bolting the base to the floor
• Duro 35, 55 and 65 versions in neoprene
• M12 centre thread
• Mobile mounting uses a bolt and nut with a steel washer and a rubber washer, Mackay does not supply the washers

Key specifications

Choosing the right option

The neoprene range has Duro 35, 55 and 65 only (no Duro 45), and uses an M12 centre thread; the standard rubber M1112 series uses M10. Check hole spacing (76mm) and hole diameter (8.5mm) against your frame. Mackay does not supply the bolt, nut or washers.
