Mackay Cushyfoot insert, 15 - 90kg
Available
In compression M1734245 takes 95kg at 2.5mm up to 970kg at 15.0mm, M1734255 145kg at 2.5mm up to 1500kg at 15.0mm and M1734260 185kg at 2.5mm up to 1930kg at 15.0mm. In shear the loads are 15kg at 2.5mm up to 90kg at 15.0mm for M1734245, 20kg at 2.5mm up to 135kg at 15.0mm for M1734255 and 25kg at 2.5mm up to 175kg at 15.0mm for M1734260.
Where this product is used
- Cushyfoot mounts, where the plate isolator is used as the insert
- Engines with limited space
- Wall mounting of the plate isolator
Features
- Three part numbers with increasing load: M1734245, M1734255 and M1734260
- Mackay part numbers: M1734245, M1734255, M1734260
- Deflection steps: 2.5, 5.0, 7.5, 10.0, 12.5 and 15.0mm
- Compression load, 2.5mm to 15.0mm: 95 to 970kg (M1734245), 145 to 1500kg (M1734255), 185 to 1930kg (M1734260)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Vibration Isolator |
| Mackay part numbers | M1734245, M1734255, M1734260 |
| Deflection steps | 2.5, 5.0, 7.5, 10.0, 12.5 and 15.0mm |
| Compression load, 2.5mm to 15.0mm | 95 to 970kg (M1734245), 145 to 1500kg (M1734255), 185 to 1930kg (M1734260) |
| Shear load, 2.5mm to 15.0mm | 15 to 90kg (M1734245), 20 to 135kg (M1734255), 25 to 175kg (M1734260) |
| Mackay part number | M1734245, M1734255, M1734260 |
| Compression load (kg) | 95 to 970, 145 to 1500, 185 to 1930 |
| Compression deflection (mm) | 2.5 to 15.0 |
| Shear load (kg) | 15 to 90, 20 to 135, 25 to 175 |
| Shear deflection (mm) | 2.5 to 15.0 |
Choosing the right option
Compression and shear loads are available separately, so use the column that matches the direction the load acts on the rubber. All properties are nominal.
Related Mackay products: Mackay Plate Isolator, Mackay Rectangular Plate Isolator, Mackay Square Plate Isolator.
| Option | SKU |
|---|---|
| 15 - 90kg | A0210232 |
| 20 - 135kg | A0210233 |
| 25 - 175kg | A0210234 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

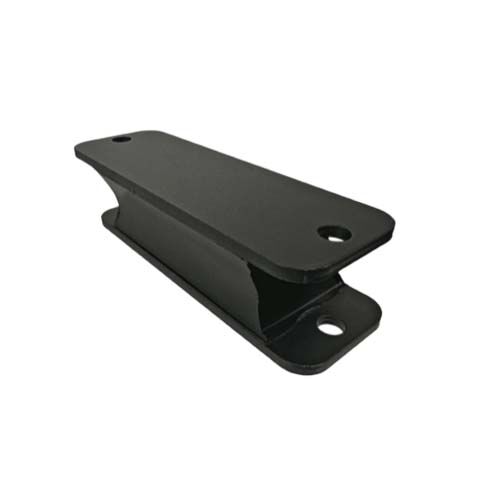

Mackay Cushyfoot Insert - Vibration Isolator: 15 - 90 kg
SKU: A0210232 | Model: M1734245
Mackay A0210232: cushyfoot insert, 15 - 90kg. Mackay part number: M1734245. Compression load: 95kg at 2.5mm up to 970kg at 15.0mm. Shear load: 15kg at 2.5mm up to 90kg at 15.0mm.
