Mackay Plate isolator, shear load 14 - 43
Available

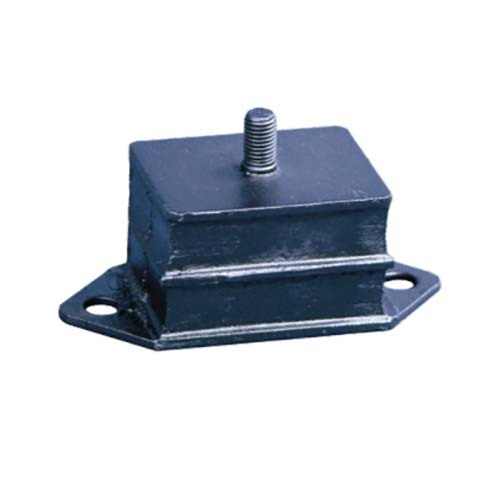

Mackay M8040 plate isolators (M8040645, M8040660 and M8040670) are small two-hole base mounts with a 5/16" UNF threaded stud, a 94 x 41mm base and a 36mm body height, in Duro 45, 60 and 70. The colour code is red for Duro 45, white for Duro 60 and marked 70 for Duro 70.
Where this product is used
- Controlling vibration and shock in equipment and machinery
- Mounting machinery and equipment where a compact stud-type isolator is wanted
Features
- Three hardnesses on one 94 x 41 x 36mm mount: Duro 45, 60 and 70
- 5/16" UNF threaded stud, 15mm stud length
- Colour coded: red (Duro 45), white (Duro 60) and marked 70 (Duro 70)
- Part numbers: M8040645, M8040660, M8040670
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Plate Vibration Isolator |
| Part numbers | M8040645, M8040660, M8040670 |
| Durometer (Duro) | 45, 60 or 70 |

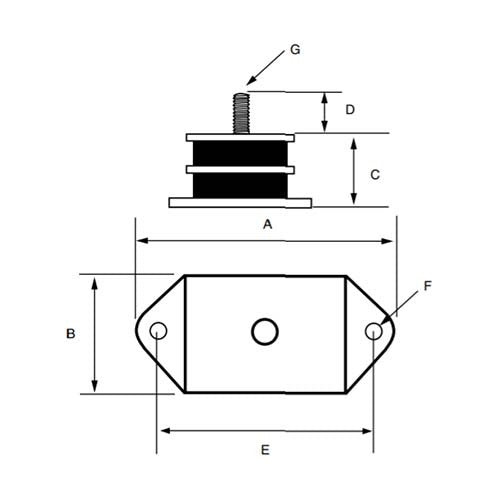

| Overall length (A) | 94mm |
| Width (B) | 41mm |
| Height (C) | 36mm |
| Stud length (D) | 15mm |
| Thread (G) | 5/16" UNF |
| Weight | 0.2kg each |
| Mackay part number | M8040645, M8040660, M8040670 |
| Duro | 45 to 70 |
| Colour | Red, White, Marked 70 |
| Compression load at 2.8mm (kg) | 150 to 400 |
| Shear load at 15mm (kg) | 66 to 180 |
Choosing the right option
Use a nut that suits the 5/16" UNF thread. All properties are nominal.
Related Mackay products: Mackay Plate Mount - Vibration Isolator, Mackay Rectangular Plate Isolator, Mackay Plate Isolator 270kg Compression Load - No Intermediate Plate M206035.
| Option | SKU |
|---|---|
| 14 - 43 | A0166466 |
| 27 - 70 | A0166467 |
| 42 - 120 | A0166468 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Plate Isolator: 14 - 43
SKU: A0166466 | Model: M8040645
Mackay A0166466: plate isolator, shear load 14 - 43. Mackay part number: M8040645. Durometer (Duro): 45. Colour code: Red.
