Mackay Plate Isolator 270kg Compression Load - No Intermediate Plate M206035

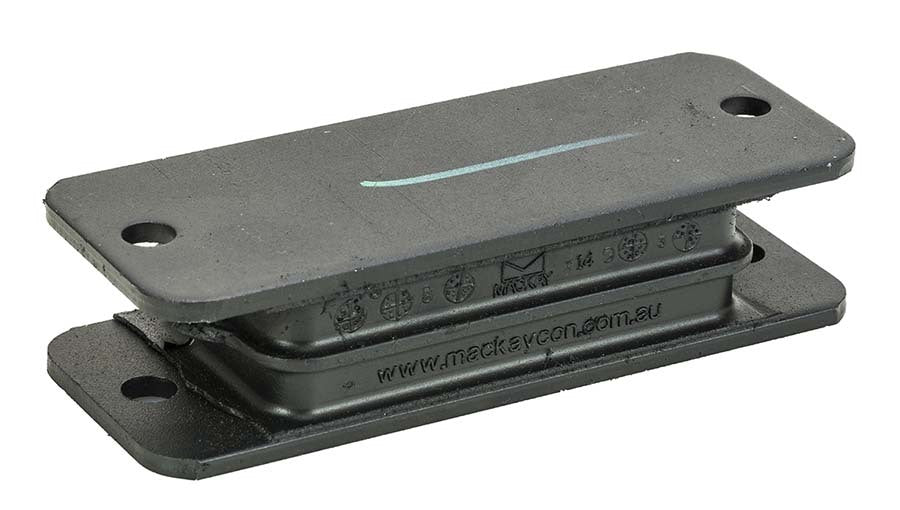

Mackay M206035 is a small rectangular plate isolator in Duro 35, 170mm long, 65mm wide and 40mm high. Mackay plate isolators are an uncomplicated, straightforward-design way to control vibration and shock, designed to protect equipment and machinery from damaging vibration and shock and with an excellent capacity for energy control.

Shear load runs from 20kg at 3.0mm to 50kg at 7.0mm of shear deflection. The two end holes are 11mm in diameter and the part weighs 1.2kg.

Where this product is used

• Controlling vibration and shock in equipment and machinery where a straightforward isolator design is wanted

Features

• Duro 35 with a 170 x 65 x 40mm body and 11mm mounting holes
• Compression load 100kg at 1.5mm, 200kg at 2.5mm and 311kg at 4mm
• Shear load 20kg at 3.0mm, 35kg at 5.0mm and 50kg at 7.0mm
• The M2060## group, with no intermediate plate
• Weight 1.2kg

Key specifications

Choosing the right option

A design load such as 270kg falls between the 2.5mm and 4mm rows, so check the deflection you will actually get with Mackay. Check the base against your steelwork: 170mm long, 11mm holes. All properties are nominal. If you need more load capacity in the same footprint, look at the M2061## rectangular plate isolators linked below.
