Mackay Plate Mount 10T Load Capacity M141004
Available

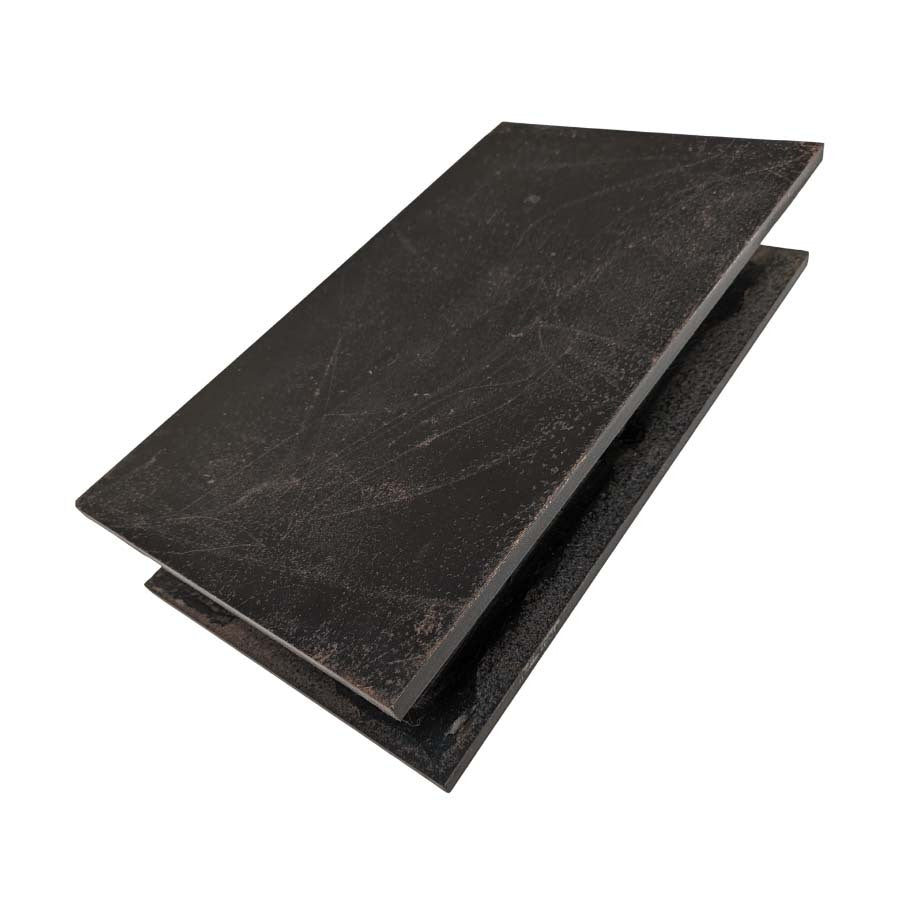

Mackay M141004 is a rectangular plate mount with 350 x 200mm plates and a 70mm overall height. Mackay plate isolators are an uncomplicated, straightforward-design way to control vibration and shock, designed to protect equipment and machinery from damaging vibration and shock and with an excellent capacity for energy control.
Where this product is used
- Controlling vibration and shock in equipment and machinery where a straightforward isolator design is wanted
Features
- Compression load 2000kg at 1.5mm, 5000kg at 3.5mm and 10,000kg at 7mm

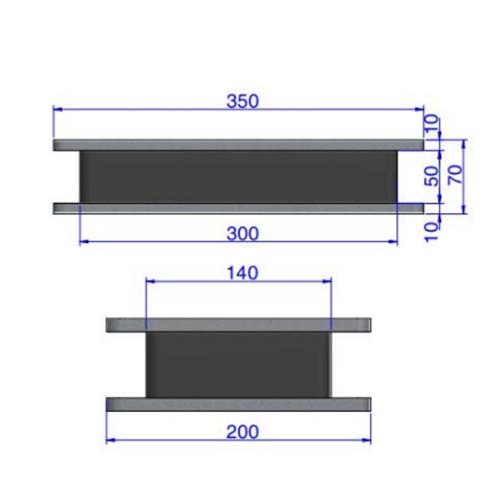

- 350 x 200mm plates, 10mm thick, with a 70mm overall height
- 300 x 140mm rubber block, 50mm high
- Designed to protect equipment and machinery from damaging vibration and shock
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Plate Vibration Isolator |
| Part number | M141004 |
| Plate size | 350 x 200mm |
| Overall height | 70mm |
| Plate thickness | 10mm |
| Comp load | 2000kg at 1.5mm, 5000kg at 3.5mm, 10,000kg at 7mm |
| Comp load (kg) | 2000 to 10,000 |
| Def (mm) | 1.5 to 7 |
Choosing the right option
All properties are nominal.
Related Mackay products: Mackay Square Plate Isolator M148208, Mackay Plate Mount - Vibration Isolator, Mackay Plate Isolator 270kg Compression Load - No Intermediate Plate M206035, Mackay Rectangular Plate Isolator.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Plate Mount 10T Load Capacity M141004
SKU: A0171065 | Model: M141004
Mackay A0171065: plate mount. Mackay part number: M141004. Compression load: 2000kg at 1.5mm, 5000kg at 3.5mm, 10,000kg at 7mm. Plate size: 350 x 200mm.
