Mackay Dock fendering rubber, 300 x 40 x 50mm long, Standard
Available
Mackay dock fendering rubber comes in three profile sizes, 50 x 40mm, 75 x 65mm and 105 x 90mm (width A x height B), each in 300mm and 1000mm lengths (C). That gives six part numbers, DR504003 to DR1059510.
Where this product is used
- Choose the 300mm lengths for short runs or individual contact points, and the 1000mm lengths for longer runs
- Dock fendering
- Longer lengths suit longer runs, shorter lengths suit individual contact points
Features
- Three profile sizes: 50 x 40mm, 75 x 65mm and 105 x 90mm
- Two lengths in every size: 300mm and 1000mm
- Nominal wall thickness of 10mm, 12mm or 18mm depending on size
- Nominal wall thickness: 10mm, 12mm or 18mm, by profile size
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Dock Buffer |
| Profile sizes (A x B) | 50 x 40mm, 75 x 65mm and 105 x 90mm |
| Lengths (C) | 300mm and 1000mm |
| Nominal wall thickness | 10mm, 12mm or 18mm, by profile size |
| Weight | 0.33kg to 5.6kg, by part number |
| Width (A) mm | 50 to 105 |
| Height (B) mm | 40 to 90 |
| Length (C) mm | 300, 1000 |
| Nominal wall thickness mm | 10 to 18 |
| Weight kg | 0.33 to 5.6 |
Choosing the right option
Pick the profile by the size of the contact area and the size of the vehicle or object it protects: the 105 x 90mm profile has the thickest nominal wall (18mm) and the 50 x 40mm the thinnest (10mm). Then pick the length that fits your fixing layout.
Related Mackay products: Mackay Docking Rubber Grooved Face, Mackay Moulded Docking Buffer, Mackay Impact Buffer Vibration Isolator.
| Option | SKU |
|---|---|
| 300 x 40 x 50 / Standard | A0166233 |
| 300 x 65 x 75 / Promo | A0166235-PROMO |

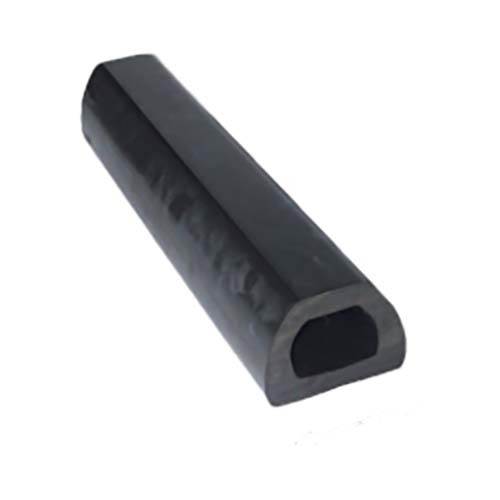

| 300 x 90 x 105 / Standard | A0166231 |

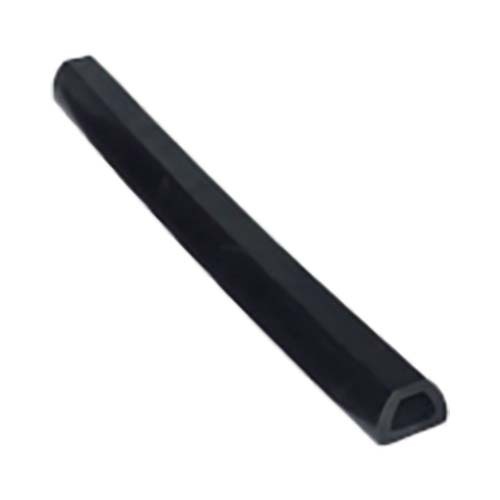

| 1000 x 40 x 50 / Standard | A0166234 |

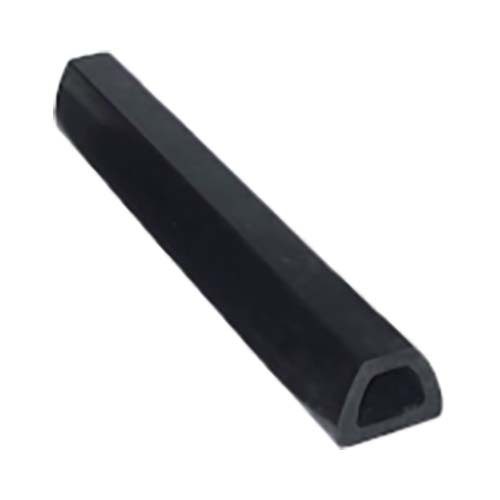

| 1000 x 65 x 75 / Standard | A0166236 |
| 1000 x 90 x 105 / Standard | A0166232 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Dock Fendering Rubber: 300 x 40 x 50 / Standard
SKU: A0166233 | Model: DR504003
Mackay DR504003: dock fendering rubber, 50 x 40mm profile, 300mm long, 10mm nominal wall, 0.33kg.
