Mackay Docking buffer, outer diameter 32
Available
Mackay moulded docking buffer is a tapered rubber block with two mounting holes. It suits truck trays and loading bays.
Where this product is used
- Truck trays and loading bays
- Mounted with two holes, 120mm apart
- Mounted with two holes, 87mm apart
- Mounted with two holes, 75mm apart
Features

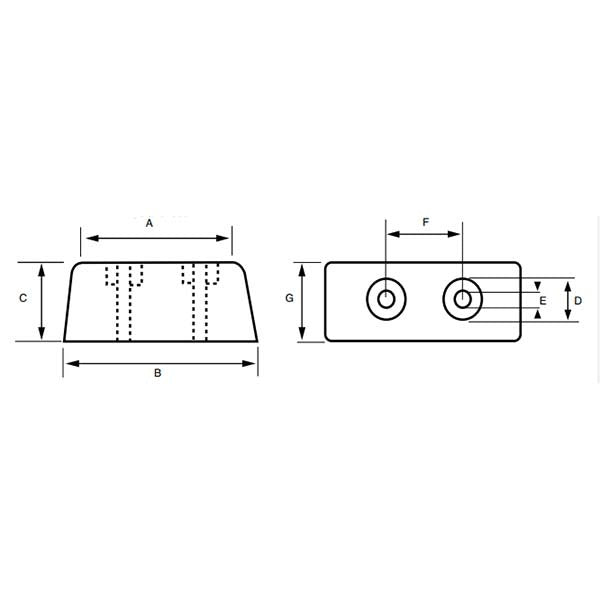

- Moulded rubber block with a tapered profile: the top length (A) is shorter than the base length (B)
- Two mounting holes per buffer, hole spacing 75, 87 or 120mm by part number
- Three sizes from 0.62kg to 1.2kg
- Top length (A): 145 to 185mm, by part number
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Dock Buffer |
| Top length (A) | 145 to 185mm, by part number |
| Base length (B) | 150 to 195mm, by part number |
| Height (C) | 50 to 90mm, by part number |
| Width (G) | 55 to 76mm, by part number |
| Mounting holes | two per buffer |
| Weight | 0.62kg to 1.2kg, by part number |
| Mackay part number | DB15090, DB15575, DB19555 |
| Top length (A) mm | 145 to 185 |
| Base length (B) mm | 150 to 195 |
| Height (C) mm | 50 to 90 |
| Width (G) mm | 55 to 76 |
| Outer diameter at hole (D) mm | 32 to 40 |
| Hole diameter (E) mm | 11 to 14 |
| Hole spacing (F) mm | 75 to 120 |
| Weight kg | 0.62 to 1.2 |
Choosing the right option
Choose by the space you have and the hole spacing on your tray or dock: hole spacing (F) is 75mm on DB15090, 87mm on DB15575 and 120mm on DB19555, with hole diameters (E) of 13.5, 14 and 11mm.
Related Mackay products: Mackay Dock Fendering Rubber, Mackay Docking Rubber Grooved Face, Mackay Impact Buffer Vibration Isolator, Mackay Bonded Rectangular Buffer M15260.
| Option | SKU |
|---|---|
| 32 | A0166230 |
| 36 | A0166229 |
| 40 | A0166228 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Moulded Docking Buffer: 32
SKU: A0166230 | Model: DB19555
Mackay DB19555: moulded docking buffer, 195 x 50 x 55mm (base length x height x width), holes 120mm apart, 0.62kg. Top length (A): 185mm.
