Mackay Rectangular buffer

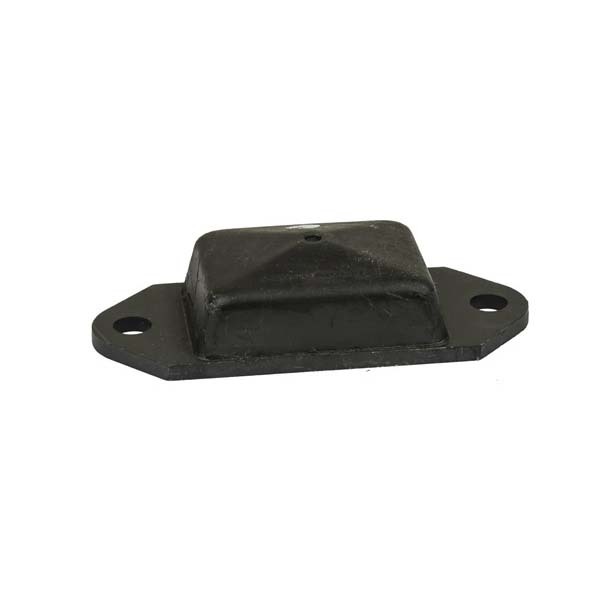

Mackay M15260 is a rectangular buffer on a flat base plate. It is easily fitted; reducing transmitted shock loads lets equipment be designed more economically, and it is designed to protect structures and equipment from impact forces.

It is usually fitted as non-metallic stops or built into vehicle suspension systems to give progressive stiffening under increasing load. The M15260 has a 156mm long plate (K), is 64mm wide (B) and 37mm high (H), and carries a 250kg compression load at 13mm deflection. It weighs 0.6kg.

Where this product is used

• Dump trucks, off-road vehicles, cranes and handling equipment
• Vehicle suspensions, where it gives progressive stiffening under increasing load
• Fitted as non-metallic stops to protect structures and equipment from impact forces

Features

• Easily fitted
• Reduces transmitted shock loads so equipment can be designed more economically
• Protects structures and equipment from impact forces
• Gives progressive stiffening under increasing load when built into vehicle suspension systems

Key specifications

Choosing the right option

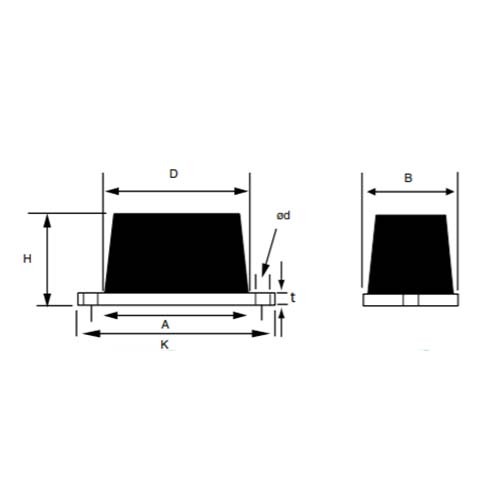

Compare the 250kg compression load and 13mm deflection with your impact or suspension duty. Check your fixing points against the 127mm hole centre spacing (A), 13.5mm hole diameter (d) and 156mm plate length (K). All properties are nominal.
