Mackay Bonded buffer
Available

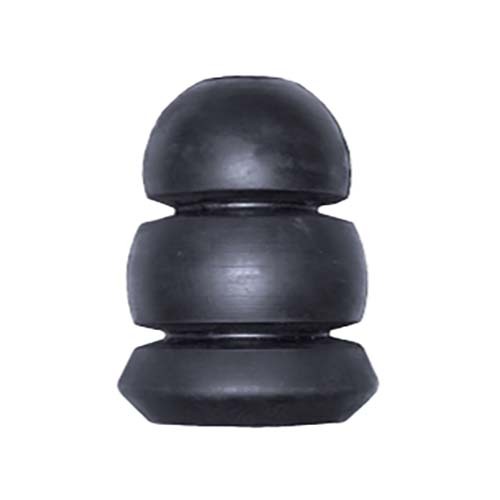

Mackay M190 is a bonded buffer with a hollow, two-bulb rubber body. These buffers are equally adaptable when controlling impact or when used as machine feet, and says a rugged rubber bonded to metal unit keeps application and installation simple.

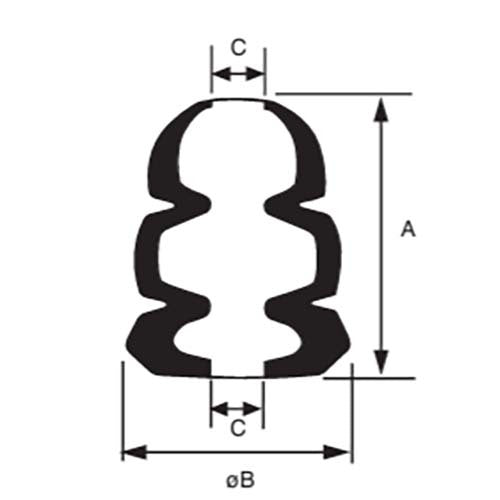

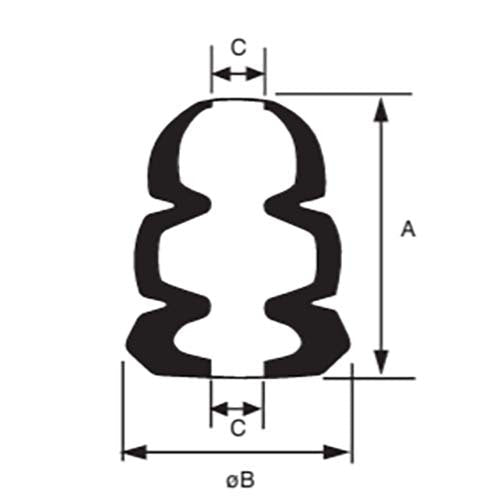

The M190 is 103mm high (A) with a 79mm diameter (B) and a 20mm dimension C, and weighs 0.3kg. It has a static load of 150kg with 25mm deflection and a buffing load of 450kg with 45mm deflection.
Where this product is used
- Controlling impact, or used as machine feet
- Snubbing rubber where excessive shock loads are met in resiliently mounted equipment
Features
- Rugged rubber bonded to metal, simple to apply and easy to install
- Can be used as machine feet or to control impact
- Deflection of 25mm at the 150kg static load and 45mm at the 450kg buffing load
- May be used as a snubbing rubber where excessive shock loads are met
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Bonded Buffer |
| Mackay part number | M190 |
| Height (A) | 103mm |
| Diameter (B) | 79mm |
| Dimension C | 20mm |
| Static load | 150kg |
| Deflection at static load (DEF) | 25mm |
| Buffing load | 450kg |
| Deflection at buffing load (DEF) | 45mm |
| Weight | 0.3kg |
Choosing the right option
All properties are nominal.
Related Mackay products: Mackay Bonded Rectangular Buffer M15260, Mackay Cylindrical Bonded Buffer, Mackay Conical Bonded Buffer.
