Mackay Cylindrical bonded buffer, 400kg
Available

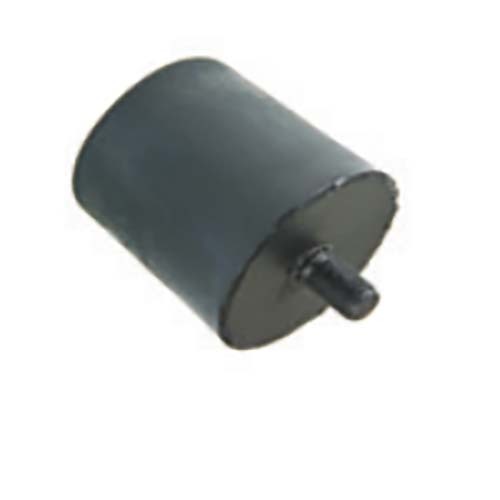

Mackay M175 and M174 are cylindrical bonded buffers: a cylindrical rubber body with a threaded stud on one face. Each part has a static load and a buffing load, with a deflection for each. The M175 is 63mm in diameter and 36mm high in Duro 45 with a 1/2W stud; the M174 is 50mm in diameter and 50mm high in Duro 60 with a 3/8 UNF stud. Refer to MA17460".
Where this product is used
- Buffers with a static load and a buffing load, each with its own deflection
- A buffer with a static load and a buffing load, each with its own deflection
Features
- Static load of 115kg (M175) or 125kg (M174)
- Buffing load of 400kg (M175) or 600kg (M174)
- Duro 45 on the M175 and Duro 60 on the M174
- Hardness (Duro): 45 or 60
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Cylindrical Bonded Buffer |
| Hardness (Duro) | 45 or 60 |
| Static load | 115kg or 125kg |
| Buffing load | 400kg or 600kg |
| Weight | 0.21kg or 0.15kg |
| Mackay part number | M175, M174 |
| Duro | 45, 60 |

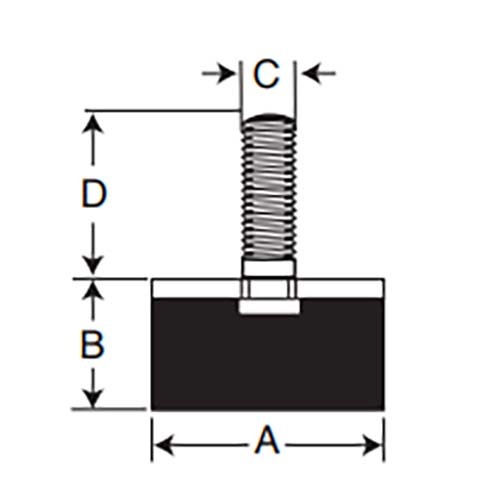

| Diameter A (mm) | 63, 50 |
| Height B (mm) | 36, 50 |
| Stud thread C | 1/2W, 3/8 UNF |
| Stud length D (mm) | 33, 16 |
| Static load (kg) | 115, 125 |
| Def (mm) | 5, 6 |
| Buffing load (kg) | 400, 600 |
| Weight (kg) | 0.21, 0.15 |
Choosing the right option
For a Duro 60, 50 x 50mm buffer, Mackay points to the MA17460 (linked below); compare its thread, static load and buffing load with the M174 first. All properties are nominal.
Related Mackay products: Mackay Rubber Buffer - MA174, Mackay Conical Bonded Buffer, Mackay Bonded Buffer M190.
| Option | SKU |
|---|---|
| 400kg | A0170767 |
| 600kg | A0170768 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Cylindrical Bonded Buffer: 400 kg
SKU: A0170767 | Model: M175
Mackay M175: cylindrical bonded buffer, 63mm diameter x 36mm high, Duro 45, 1/2W stud, 115kg static, 400kg buffing load.
