Mackay Bonded buffer
Available

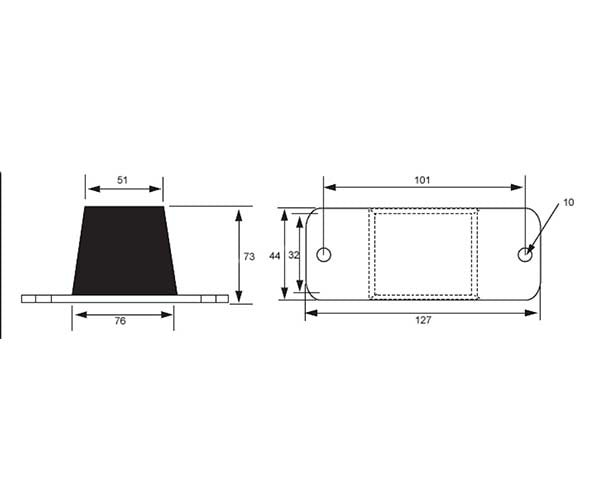

Mackay M176 is a bonded buffer: a tapered rubber block on a flat base plate with two mounting holes. The M176 measures 127mm long (B) by 44mm wide (D) by 73mm high (A) and weighs 0.3kg. It has a static load of 87kg with 10mm deflection and a buffing load of 200kg with 20mm deflection.
Where this product is used
- Rated for a static load and a buffing load, each with its own deflection
Features
- Static load of 87kg at 10mm deflection
- Buffing load of 200kg at 20mm deflection
- Two 10mm mounting holes, 101mm apart
- Mackay part number: M176
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Bonded Buffer |
| Mackay part number | M176 |
| Height (A) | 73mm |
| Plate length (B) | 127mm |
| Plate width (D) | 44mm |
| Hole diameter (C) | 10mm |
| Hole centre spacing (E) | 101mm |
| Static load | 87kg |
| Deflection at static load (DEF) | 10mm |
| Buffing load | 200kg |
| Deflection at buffing load (DEF) | 20mm |
| Weight | 0.3kg |
Choosing the right option
The 200kg in the product name is the buffing load; the static load is 87kg, so check which rating matches your duty. Check your fixing points against the 101mm hole spacing (E) and 10mm hole diameter (C). All properties are nominal.
Related Mackay products: Mackay Rubber Buffer Vibration Isolator 120 x 1000kg (Static x Buffing Load), Mackay Impact Buffer Vibration Isolator, Mackay Bonded Rectangular Buffer M15260, Mackay Bonded Buffer M190.
