Mackay Rubber buffer
Available

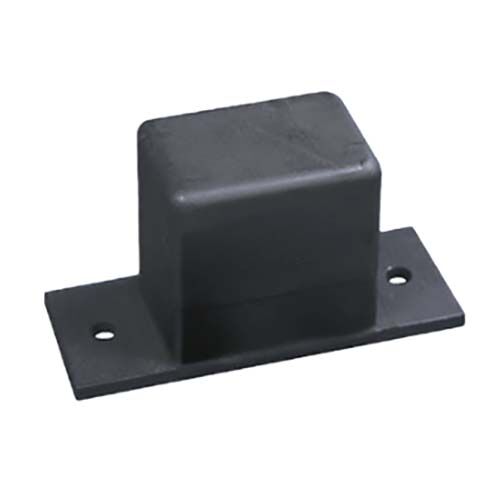

Mackay MA5925055 is a rubber impact buffer: a rubber block on a flat base plate with two mounting holes. The MA5925055 is 70mm high (A) on a 130 x 50mm plate (B x C) and weighs 0.5kg. It has a static load of 120kg with 10mm deflection and a buffing load of 1000kg with 30mm deflection, which is the 120 x 1000kg in the product name.
Where this product is used
- An impact buffer
- Rated for a static load and a buffing load, each with its own deflection
Features
- Static load of 120kg at 10mm deflection
- Buffing load of 1000kg at 30mm deflection
- Two 8.5mm mounting holes, 100mm apart on a 130mm plate
- Mackay part number: MA5925055
Key specifications

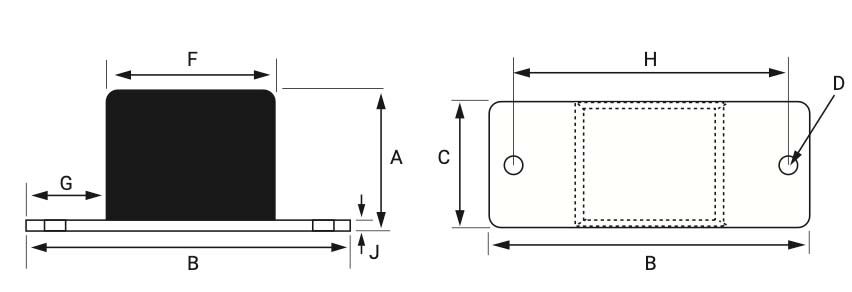

| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Rubber Buffer |
| Mackay part number | MA5925055 |
| Height (A) | 70mm |
| Plate length (B) | 130mm |
| Plate width (C) | 50mm |
| Hole diameter (D) | 8.5mm |
| Hole centre spacing (H) | 100mm |
| Plate thickness (J) | 5mm |
| Static load | 120kg |
| Deflection at static load (DEF) | 10mm |
| Buffing load | 1000kg |
| Deflection at buffing load (DEF) | 30mm |
| Weight | 0.5kg |
Choosing the right option
Check which rating matches your duty: 120kg is the static load and 1000kg is the buffing load. Check your fixing points against the 100mm hole spacing (H) and 8.5mm hole diameter (D). All properties are nominal.
Related Mackay products: Mackay Impact Buffer Vibration Isolator, Mackay M176 Bonded Buffer 127 x 44 x 73mm 200kg.
