Mackay Light duty flange isolator, 25 - 40kg
Available

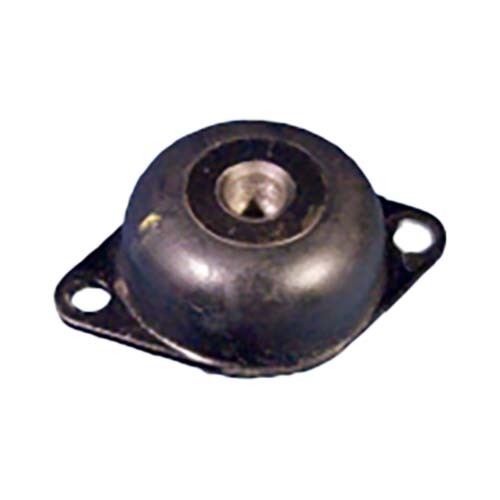

Mackay M110 is the smaller of the two light duty flange isolators: a base 76mm long, a body 48mm wide and a height of 22mm, weighing 0.1kg. The telescopic metal inserts provide considerable stability in all directions, and its upper metal insert is tapped to receive standard bolts or set screws.
Available as three part numbers, M11040, M11050 and M11060, in Duro 40, 50 and 60, with compression load ranges of 25 to 40kg, 40 to 55kg and 31 to 85kg. The upper insert thread is 7/16" - 20 UNF, and the base is bolted down through two 8.7mm holes, 60.3mm apart.
Where this product is used
- Fastening the isolator to the floor or other base with bolts through the two lugs of the lower metal stamping
- Fixing standard bolts or set screws into the tapped upper metal insert (7/16" - 20 UNF)
- Mounting in the four suggested arrangements: tandem series, compression series, tension and shear
Features
- Telescopic metal inserts give considerable stability in all directions
- Upper metal insert tapped 7/16" - 20 UNF to receive standard bolts or set screws
- Fastened down with bolts through the two lugs of the lower metal stamping
- Hardness colour code: Duro 40 red, 50 yellow, 60 white
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Flange Vibration Isolator |

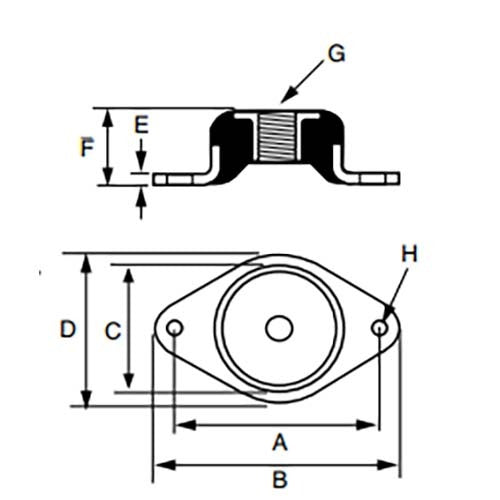

| Overall length (B) | 76mm |
| Body width (D) | 48mm |
| Height (F) | 22mm |
| Mounting hole spacing (A) | 60.3mm |
| Mounting hole diameter (H) | 8.7mm |
| Base plate thickness (E) | 3mm |
| Dimension C (plan view) | 41mm |
| Top insert thread (G) | 7/16" - 20 UNF |
| Weight | 0.1kg each |
| Hardness range (Duro) | 40 to 60 |
| Compression load range | 25 to 55kg for Duro 40 and 50, and 31 to 85kg for Duro 60 |
| Mackay part number | M11040, M11050, M11060 |
| Hardness (Duro) | 40 to 60 |
| Colour code | red, yellow, white |
| Compression load (kg) | 25 to 40, 40 to 55, 31 to 85 |
| Compression deflection (mm) | 2.3 to 3.7, 2.5 to 3.5, 1.0 to 3.0 |
| Shear load (kg) | 20 to 35, 35 to 50, 21 to 54 |
| Shear deflection (mm) | 2.2 to 3.8, 2.5 to 3.5, 1.0 to 2.0 |
Choosing the right option
Choose by load first. Each part number has its own compression load range and its own Duro. Then check the base against your supporting steelwork: two 8.7mm holes, 60.3mm apart, 76mm overall length, and the 7/16" - 20 UNF thread for the fixing into the top. All properties are nominal.
Related Mackay products: Mackay Light Duty Flange Isolator M114, Mackay Heavy Duty Flange Isolator M139, Mackay Heavy Duty Flange Isolator M140, Mackay BRB Flange Isolator - Small.
| Option | SKU |
|---|---|
| 25 - 40kg | A0166356 |
| 40 - 55kg | A0166357 |
| 31 - 85kg | A0166358 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Light Duty Flange Isolator M110: 25 - 40 kg
SKU: A0166356 | Model: M11040
Mackay M11040: light duty flange isolator M110, Duro 40, compression load 25 to 40kg, deflection 2.3 to 3.7mm, shear load 20 to 35kg. Colour code: red.
