Mackay Heavy duty flange isolator, 400 - 550kg
Available

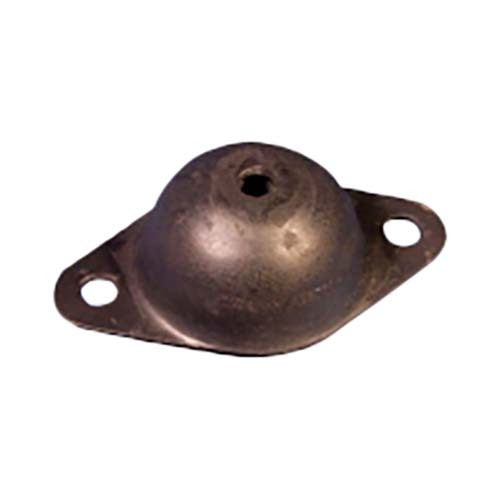

Mackay M139 is the larger of the two heavy duty flange isolators: a base 157mm long, a body 102mm wide and a height of 48mm, weighing 0.6kg. The telescopic metal inserts provide considerable stability in all directions; loads can be suspended as well as supported, and interlocking flanges ensure suspension even if the rubber is completely destroyed by fire, etc..
Available as four part numbers, M13940, M13950, M13960 and M13970, in Duro 40, 50, 60 and 70. The base is bolted down through two 14.2mm holes, 127.0mm apart. A stainless steel version is available separately as M13960SS.
Where this product is used
- Fastening the isolator to the floor or other base with bolts through the two lugs of the lower metal stamping
- Suspending loads as well as supporting them (M139 and M140)

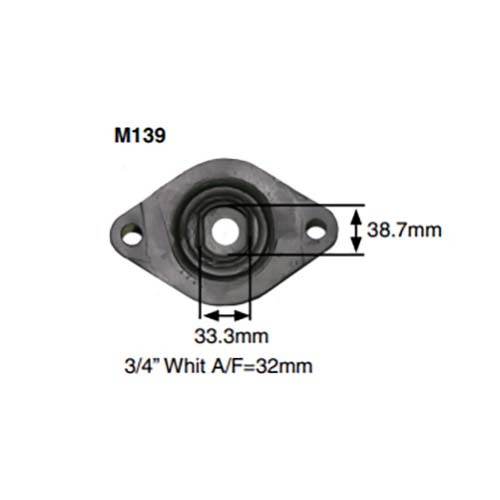

- Seating the bolt head in the recess: a 3/4" Whitworth recess, 32mm across flats, for the M139
- Mounting in the four suggested arrangements: tandem series, compression series, tension and shear
Features
- Telescopic metal inserts give considerable stability in all directions
- Loads can be suspended as well as supported
- Interlocking flanges ensure suspension even if the rubber is completely destroyed by fire, etc
- Fastened down with bolts through the two lugs of the lower metal stamping
- Bolt head recess for a 3/4" Whitworth bolt, 32mm across flats
- Hardness colour code: Duro 40 red, 50 yellow, 60 white, 70 marked 70
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Flange Vibration Isolator |

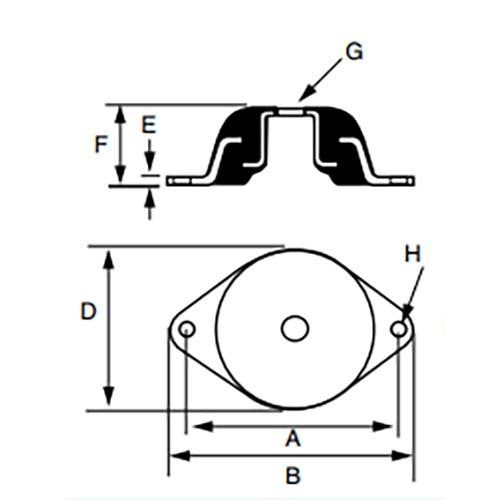

| Overall length (B) | 157mm |
| Body width (D) | 102mm |
| Height (F) | 48mm |
| Mounting hole spacing (A) | 127.0mm |
| Mounting hole diameter (H) | 14.2mm |
| Base plate thickness (E) | 3mm |
| Dimension G | 13/16" |
| Bolt head recess | 3/4" Whitworth, 32mm across flats |
| Weight | 0.6kg each |
| Hardness range (Duro) | 40 to 70 |
| Compression load range | 400 to 900kg for Duro 40 to 60, and 1100 to 1275kg for Duro 70 |
| Mackay part number | M13940, M13950, M13960, M13970 |
| Hardness (Duro) | 40 to 70 |
| Colour code | red, yellow, white, marked 70 |
| Compression load (kg) | 400 to 550, 550 to 725, 725 to 900, 1100 to 1275 |
| Compression deflection (mm) | 3.4 to 4.6, 3.5 to 4.5, 3.6 to 4.4, 3.5 to 4.2 |
| Shear load (kg) | 150 to 250, 250 to 400, 400 to 550, 550 to 725 |
| Shear deflection (mm) | 3.0 to 5.0, 3.1 to 4.9, 3.4 to 4.6, 3.1 to 4.5 |
Choosing the right option
Choose by load first. Each part number has its own compression load range and its own Duro, so work out the share of the machine weight each isolator will carry and pick the range that contains it. Then check the base against your steelwork: two 14.2mm holes, 127.0mm apart, 157mm overall length. All properties are nominal.
Related Mackay products: Mackay Heavy Duty Flange Isolator M140, Mackay M13960SS Heavy Duty Flange Isolator 157 x 102 x 48mm - 725 to 900kg, Mackay Heavy Duty Flange Isolator Stainless Steel 141 x 83 x 41mm - 350 to 500kg, Mackay Light Duty Flange Isolator M110.
| Option | SKU |
|---|---|
| 400 - 550kg | A0166362 |
| 550 - 725kg | A0166363 |
| 725 - 900kg | A0166364 |
| 1100 - 1275kg | A0166365 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mackay Heavy Duty Flange Isolator M139: 400 - 550 kg
SKU: A0166362 | Model: M13940
Mackay M13940: heavy duty flange isolator M139, Duro 40, compression load 400 to 550kg, deflection 3.4 to 4.6mm, shear load 150 to 250kg.
