Description
Description
***Dust/Oil Seal Shield M189 sold separately. Contact AIMS for assistance***

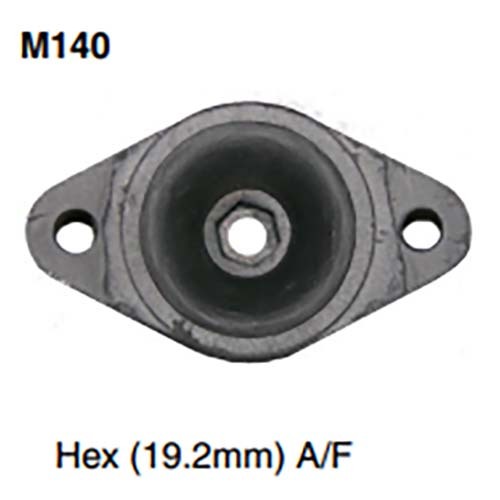

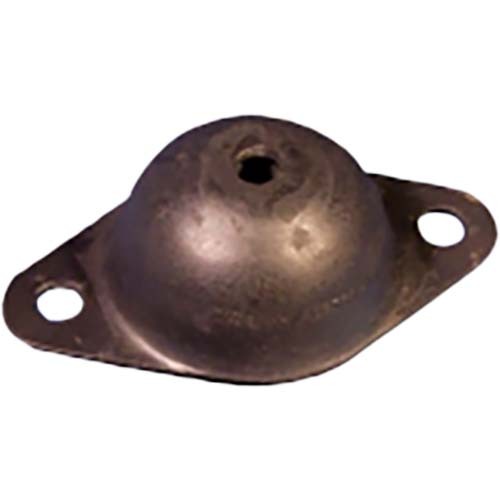

Mackay Heavy Duty Flange Isolator 304 Stainless Steel
- These special heavy-duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
- Loads can be suspended as well as supported.
- The isolators can be fastened to the floor or other base
- Shield available (Part No. M189) to protect isolators from mechanical and chemical attacks. Sold separately, contact AIMS for assistance.
Specifications
Specifications

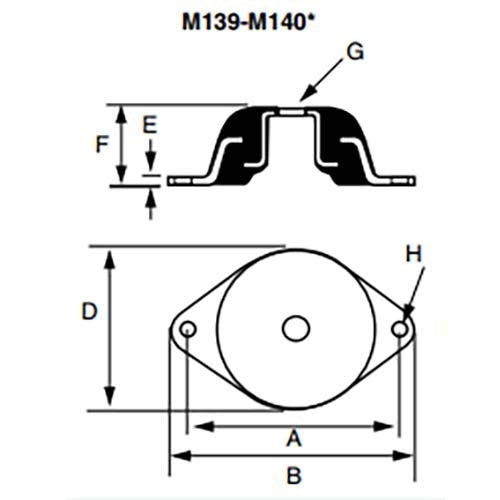

Dimensions
- Compression Load (kg): 350 - 500
- Compression Deflection (mm): 3.3 - 4.7
- Shear Load (kg): 160 - 200
- Shear Deflection (mm): 3.6 - 4.4
- Centre to Centre (mm): 110
- Length (mm): 141
- Width (mm): 83
- Plate Thickness (mm): 3
- Height Size (mm): 41
- Thread Size (inc): 17/32
- Hole Diameter (mm): 13.5
- Weight (kg): 0.4
- Durometer: 60
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Mackay Heavy Duty Flange Isolator Stainless Steel 141 x 83 x 41mm - 350 to 500kg
Mackay Heavy Duty Flange Isolator Stainless Steel 141 x 83 x 41mm - 350 to 500kg
SKU: A0166497
Type: Flange Isolator
- Wide Range
- Reliable Services
- Proven Trust
Available
The Mackay Heavy Duty Flange Isolator Stainless Steel 141 x 83 x 41mm by Mackay is a Flange Isolator made of 304 Stainless Steel. It provides a 350 to 500 kg compression load range and is suitable for Anti-Vibration Mounts.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
***Dust/Oil Seal Shield M189 sold separately. Contact AIMS for assistance***
Mackay Heavy Duty Flange Isolator 304 Stainless Steel
- These special heavy-duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
- Loads can be suspended as well as supported.
- The isolators can be fastened to the floor or other base
- Shield available (Part No. M189) to protect isolators from mechanical and chemical attacks. Sold separately, contact AIMS for assistance.
Specifications
Specifications
Dimensions
- Compression Load (kg): 350 - 500
- Compression Deflection (mm): 3.3 - 4.7
- Shear Load (kg): 160 - 200
- Shear Deflection (mm): 3.6 - 4.4
- Centre to Centre (mm): 110
- Length (mm): 141
- Width (mm): 83
- Plate Thickness (mm): 3
- Height Size (mm): 41
- Thread Size (inc): 17/32
- Hole Diameter (mm): 13.5
- Weight (kg): 0.4
- Durometer: 60
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Mackay Heavy Duty Flange Isolator Stainless Steel 141 x 83 x 41mm - 350 to 500kg
