Mackay M164 Machinery Mounting Pad 457 x 457mm

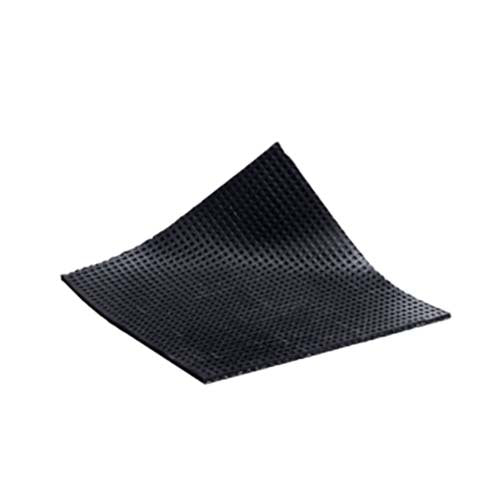

Mackay M164 machinery mounting pad is a 457mm x 457mm sheet of oil-resistant neoprene, 7mm thick and 1.7kg, used under machinery to control vibration, shock and acoustic noise. The loading guide is in kilograms per square centimetre rather than a single load rating: the pad is suitable from 0.7 to 4.2kg/sq.cm, with 3.5kg/sq.cm (50 psi) for optimum operation. It can be cut to size with scissors or a knife and stacked in layers for more deflection.

Where this product is used

• Under machinery for control of vibration, shock and acoustic noise

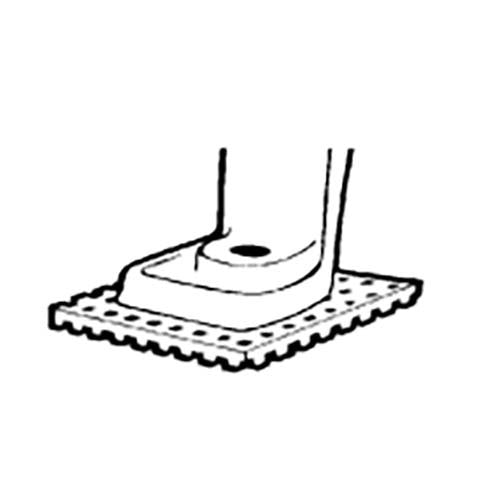

• Under impact-type machinery such as punch presses, loading the pad at 1.8kg/sq.cm
• Where more deflection is needed at the same loading: the pad can be stacked in layers

Features

• Oil-resistant neoprene, similar products may not be suitable in and around oils and greases

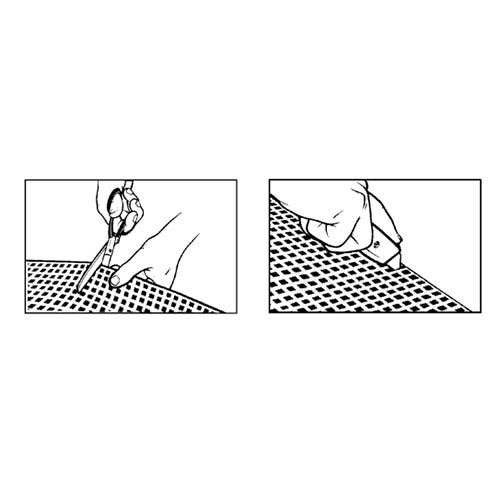

• Can be cut to the required size with scissors or a knife
• Layers can be stacked for increased deflection at the same loading, with a 1.5 to 2mm metal shim plate between layers when more than two are used
• Allow a 6mm overlay around the feet of the machine when installing

Key specifications

Choosing the right option

Work out the loading in kg/sq.cm: the weight carried divided by the area of pad under the machine feet. 3.5kg/sq.cm gives optimum operation, anywhere from 0.7 to 4.2kg/sq.cm is suitable, and 1.8kg/sq.cm for impact machinery. Allow 6mm of pad beyond the machine feet. All properties are nominal.

Separate each layer with a metal shim plate of 1.5 to 2mm thickness when more than two layers are used, and keep the height of the stack less than the length or width.

Related Mackay products: Mackay Anti Vibration Mat EPDM 450 x 450 x 8mm - MA165, Mackay M181 General Machinery Isolator 5/16" x 24UNF - 230kg Load.
