Mackay M181 General Machinery Isolator 5/16in x 24UNF - 230kg Load

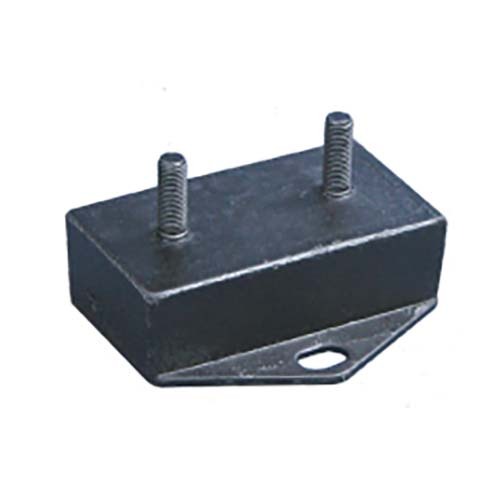

Mackay M181 is a general machinery isolator with two 5/16" x 24 UNF studs on a 90mm long body and a mounting base plate. It has compression loads from 125 to 230kg and shear loads from 15 to 30kg. The load rating at 3mm deflection is 230kg in compression and 30kg in shear.

Where this product is used

• Machinery that needs mounting against the vibratory problems found within industry: the general machinery isolators were engineered for these and are easily applied to a variety of applications

Features

• All angle flexibility
• Ease of installation
• Designed for stability
• Increased service life on equipment
• Ease of selection

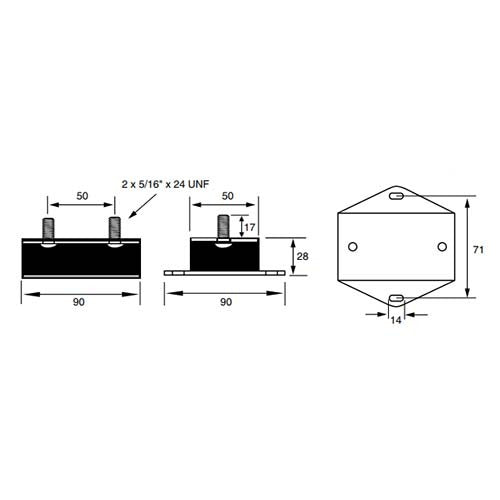

• Two 5/16" x 24 UNF studs, 50mm apart, on a 28mm high body

Key specifications

Choosing the right option

Pick the compression load that matches the weight each isolator carries, then check the deflection beside it: 125kg gives 1.6mm and 230kg gives 3.0mm. If the isolator will also be loaded sideways, use the shear column. Check the 5/16" x 24 UNF studs and the 50mm stud spacing against your equipment. All properties are nominal.

Load and deflection: compression 125kg at 1.6mm, 150kg at 1.9mm, 175kg at 2.3mm, 200kg at 2.6mm, 230kg at 3.0mm; shear 15kg at 1.5mm, 20kg at 2.0mm, 25kg at 2.5mm, 30kg at 3.0mm.
