Mackay M183 General Machinery Isolator 50 to 110kg Load

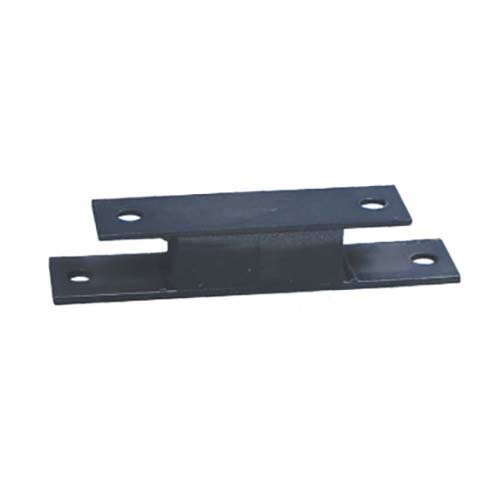

Mackay M183 is a general machinery isolator built as a rubber block between two flat plates, each drilled for fixing. It has compression loads from 50 to 110kg and shear loads from 5 to 13kg.

Where this product is used

• Machinery that needs mounting against the vibratory problems found within industry: the general machinery isolators were engineered for these and are easily applied to a variety of applications

Features

• All angle flexibility
• Ease of installation
• Designed for stability
• Increased service life on equipment
• Ease of selection

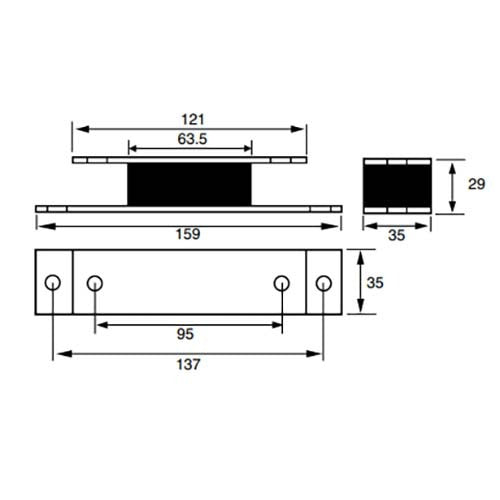

• Flat plate construction, 35mm wide and 29mm high, with mounting holes in both plates

Key specifications

Choosing the right option

Pick the compression load that matches the weight each isolator carries, then check the deflection beside it: 50kg gives 1.4mm and 110kg gives 3.0mm. If your load is higher, the M181 and M21345 are linked below. All properties are nominal.

Load and deflection: compression 50kg at 1.4mm, 75kg at 2.0mm, 100kg at 2.7mm, 110kg at 3.0mm; shear 5kg at 1.1mm, 10kg at 2.3mm, 13kg at 3.0mm.
