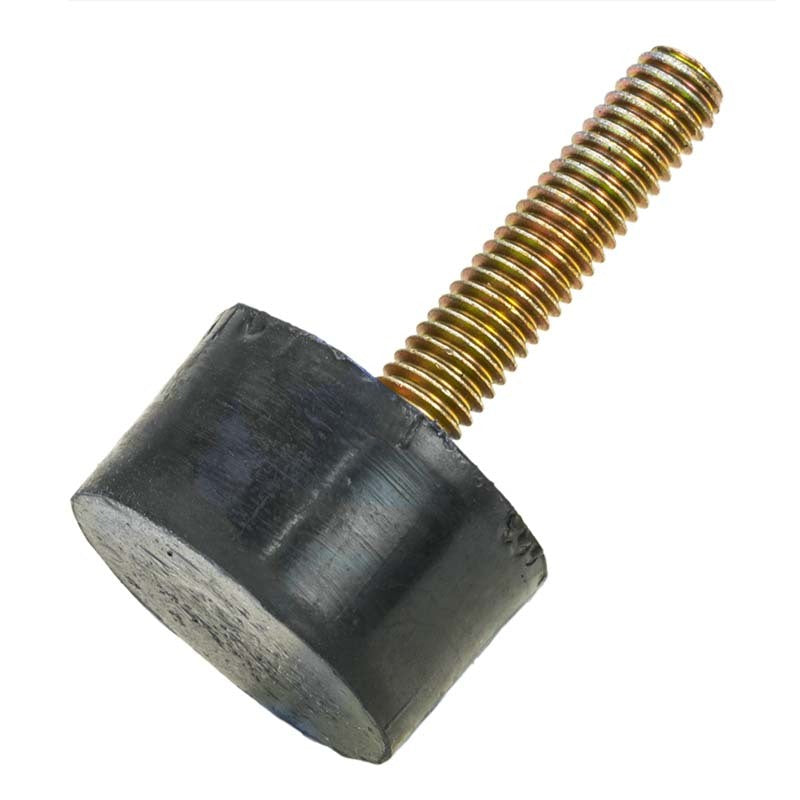

Mackay Bonded Buffer

• For inexpensive and effective control of machinery vibration, shock and acoustic noise. These buffers are equally adaptable when controlling impact or when used as machine feet; they also may be used as snubbing rubbers when excessive shock loads are encountered in resiliently mounted equipment.

Specifications

• Dimensions A: 22 mm
• Dimensions B: 35 mm
• Dimensions C: 3/8 Whitworth
• Dimensions D: 38 mm
• Static Load: 64 kg
• Static Deflection: 3 mm
• Buffing Load: 180 kg
• Buffing Deflection: 8 mm

Features

• Designed specifically to control impact and torque reaction loads.
• Built to limit movement and stabilize equipment at critical frequencies.
• A rugged rubber bonded to metal unit ensures simplicity of application and ease of installation.
