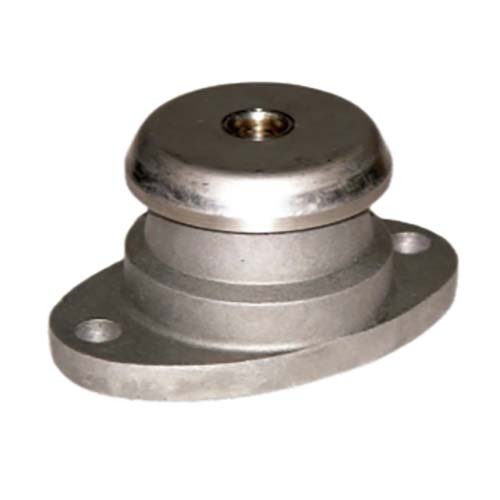

Mackay Pedestal mount with overload and rebound washers

Mackay pedestal mount combines isolation characteristics with convenient installation features. It is typically used to mount pumps, compressors, fans and other machinery in static and some mobile applications.

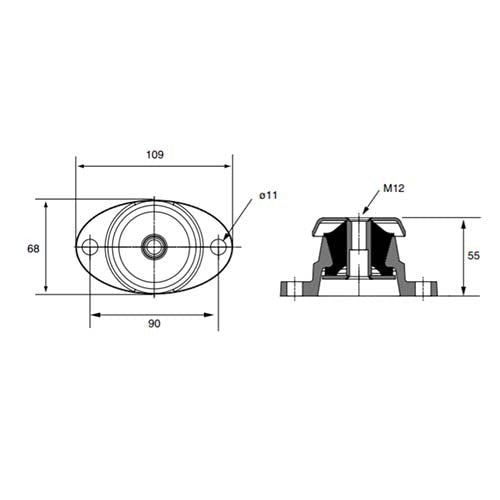

It has a cast aluminium base, a protective stainless steel cover and integral overload and rebound washers. The base is 109 x 68mm with hole spacing 90mm, and the unit is 55mm high with an M12 centre thread. Two variants: M70150 (90kg normal load) and M70165 (180kg normal load), both with 6mm deflection at normal load.

Where this product is used

• Mounting pumps
• Mounting compressors and fans
• Other machinery in static and some mobile applications

Features

• Security against excessive overload and rebound movement
• Integral overload and rebound washers
• Protective stainless steel cover
• Lightweight cast aluminium base
• Duro rating stamped on the base

Key specifications

Choosing the right option

Choose the part by normal load: M70150 is rated at 90kg and M70165 at 180kg, so work out the share of machine weight each pedestal carries and pick the one that matches. Check the 90mm hole spacing, 11mm holes and 55mm height against your frame, and the M12 thread against your fixing.
