Mackay Recessed Flange Washer M15286
Available
Mackay M15286 is a Type C washer, a rebound washer with rubber. It is the bottom (rebound) washer for the M80409 recessed flange isolator, the Type 409 in this range. It has a 48mm outer diameter, 12mm hole, 28.5mm diameter E, heights of 3mm (C) and 6mm (D), and a weight of 0.1kg. Overload and rebound washers (top and bottom) are necessary to limit maximum movement in the event of shock loading. The matching overload washer for M80409 is M18409A.
Where this product is used
- Fitted as the bottom (rebound) washer on the M80409 recessed flange isolator, where that installation calls for washers
- Limiting movement of the suspended equipment under shock loads
Features
- Type C rebound washer with rubber
- 48mm outer diameter with a 12mm hole
- Weight 0.1kg
- Washer type: Type C, rebound washer with rubber

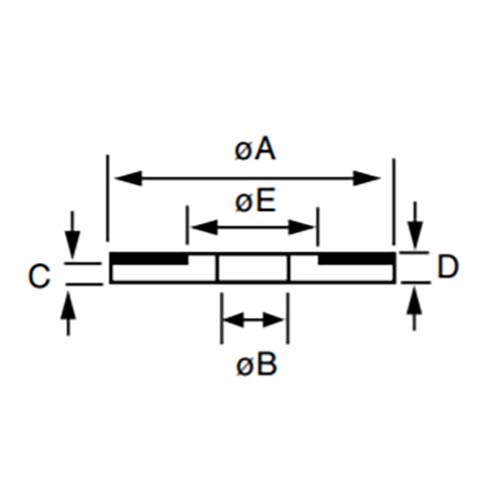

Key specifications
| Specification | Detail |
|---|---|
| Brand | Mackay |
| Product type | Specialty Washer |
| Washer type | Type C, rebound washer with rubber |
| Outer diameter (A) | 48mm |
| Hole diameter (B) | 12mm |
| Height C | 3mm |
| Height D | 6mm |
| Diameter E | 28.5mm |
| Weight | 0.1kg |
| Mackay part number | M15286 |
| Type | C |
| A (mm) | 48 |
| B (mm) | 12 |
| C (mm) | 3 |
| D (mm) | 6 |
| E (mm) | 28.5 |
| Weight (kg) | 0.1 |
Choosing the right option
Check that there is clearance between the rebound washer and the base of the isolator under static load, as Mackay advises. M80409 may or may not need washers depending on the installation.
Related Mackay products: Mackay Recessed Flange Isolator Type 409, 89 x 54 x 30mm, Mackay Overload Washer - M18409A.
