The MAX reel by Macnaught represents the first hose reel developed worldwide with integrated flow meter and flow register.
The marriage of the brand new MX range of oval gear flow meter products featuring the revolutionary M-Lock mounting system and the equally new MAN narrow face hose reel products offers unparalleled simplicity for OEMs, installers and users alike.
With the MAX range of metered hose reels there is no longer any need for separate mounting of meters, intermediate plumbing or vulnerable wiring between meters and registers.
The reel comes completely fitted and wired to be placed in situ ready to function. The only installation required is bolting the unit down and the connection of the inlet fluids and outlet control.
Although equally at home in static workshop situations,the MAX range of metered hose reels has been specifically designed to meet the rigors of the mobile lube service vehicle.
Specifications
Specifications
Technical Specifications
- Nominal Size: 1/2"
- Fluid Type: Oil
- Swivel Working Pressure: 1,250psi
- Flow Range: 3-30L/min
- Meter accuracy: 0.5%
- Meter Repeatability: 0.03%
- Meter seal material: Viton
- Meter body material: Aluminium
- Shaft Material: Stainless Steel
- O'ring Material: Viton
- Housing Material: Zinc Coated Brass
- Hose Working Pressure: 1,250psi
- Hose ID: 1/2"
- Hose Length: 15m
- Reel Inlet: 1/2"BSPM
- Includes 1m feeder hose: Yes
- Hose Outlet: 1/2"BSP
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

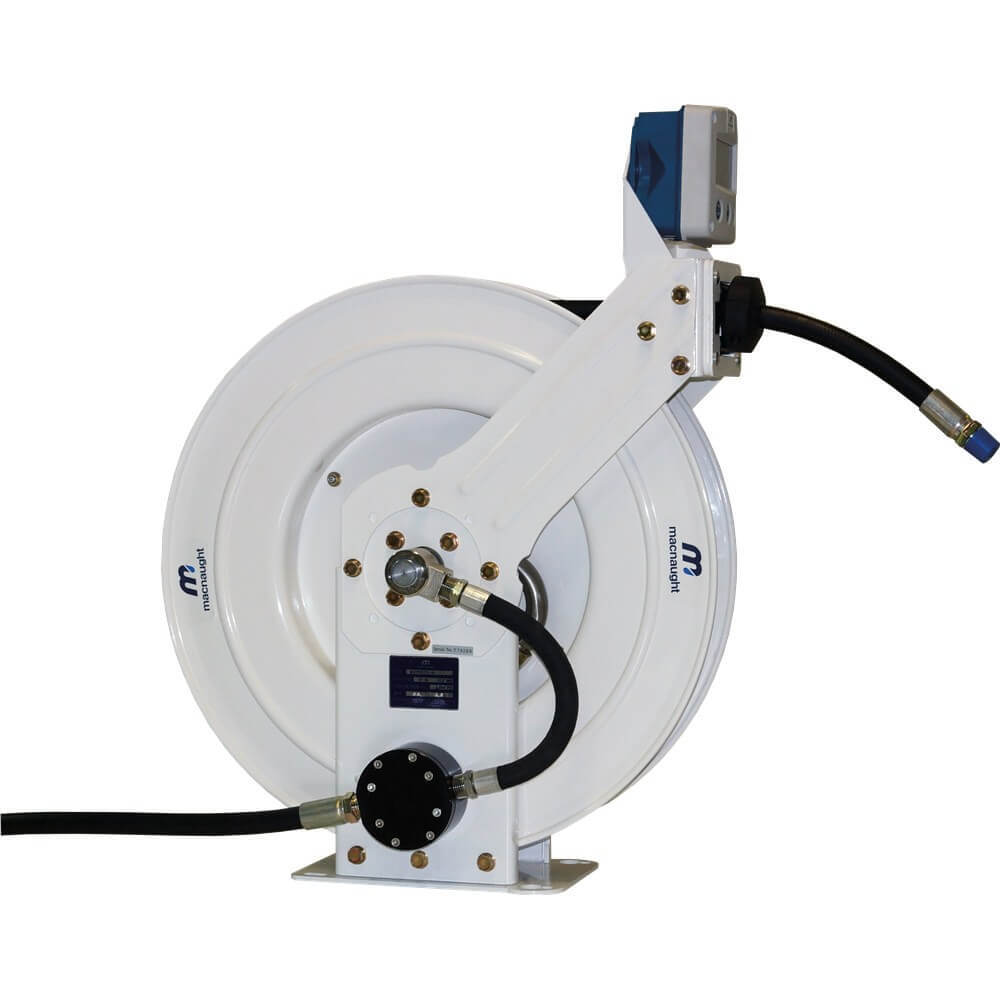

Macnaught 12mm x 15m Service Vehicle Oil Hose Reel MAX1215-01
Macnaught 12mm x 15m Service Vehicle Oil Hose Reel MAX1215-01
SKU: A0082782
- Wide Range
- Reliable Services
- Proven Trust
Available
The Macnaught 12mm x 15m Service Vehicle Oil Hose Reel features an integrated flow meter for precise measurements. With a working pressure of 1,250psi and a flow range of 3-30L/min, it is ideal for mobile lube service vehicles. Easy install
