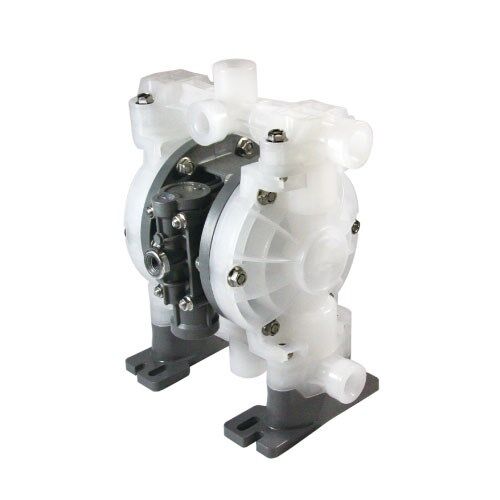

Macnaught Air Operated Double Diaphragm Pump - 1/2"
Available
The Macnaught M-DDP13PN-01 is a 1/2" air-operated double diaphragm pump from the Macnaught Max Flow Series. It runs on compressed air, has a 1:1 ratio and is made in Japan, with a maximum flow of 62 LPM (16 GPM). It is self-priming, so you do not need to prime it by hand, it runs dry without overheating and it withstands a closed discharge without damage.
Ports are 1/2" BSPT (F) (BSPT is a tapered British Standard Pipe thread, and (F) means female). No inline lubrication is required. Check its pump compatibility chart before pumping anything outside the fluids. Do not use a fluid the pump parts cannot resist. Other sizes in the Max Flow Series suit lower and higher flows, so choose by the flow you need.
Where this product is used
- Transferring new and used oils, new and used engine coolants, oily water and diesel
- Applications that need a pump that can run dry or deadhead without damage
Features
- Maximum flow of 62 LPM (16 GPM) at a 1:1 ratio
- Self-priming, dry-run safe and deadhead resistant
- No inline lubrication required
- Lighter spool for faster, smoother operation, and an easily accessible air motor for servicing
- Wetted parts are polypropylene (PP) and nitrile Buna-N (NBR)
- Maximum solids handling 1mm
- Suction lift 2 m (dry) and 8 m (wet)
- Supplied with an airline ball valve and four liquid inlet and outlet plugs
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | M-DDP13PN-01 |
| Part number | M-DDP13PN-01 |
| Type | Air-operated double diaphragm pump, Max Flow Series |
| Ratio | 1:1 |
| Maximum flow | 62 LPM (16 GPM) |
| Fluid inlet/outlet | 1/2" BSPT (F) |
| Air inlet | 1/4" BSPT (F) |
| Air pressure | 20 to 100 psi (1.37 to 6.89 bar) |
| Maximum solids | 1mm |
| Suction lift | 2 m dry, 8 m wet |
| Fluid temperature | 0 to 60°C |
| Wetted materials | Polypropylene (PP), nitrile (NBR) |
| Diaphragm | Nitrile Buna-N (NBR) |
| Maximum air consumption | 700 L/min (ANR) |
| Noise level | 84 dB (ISO 1996) |

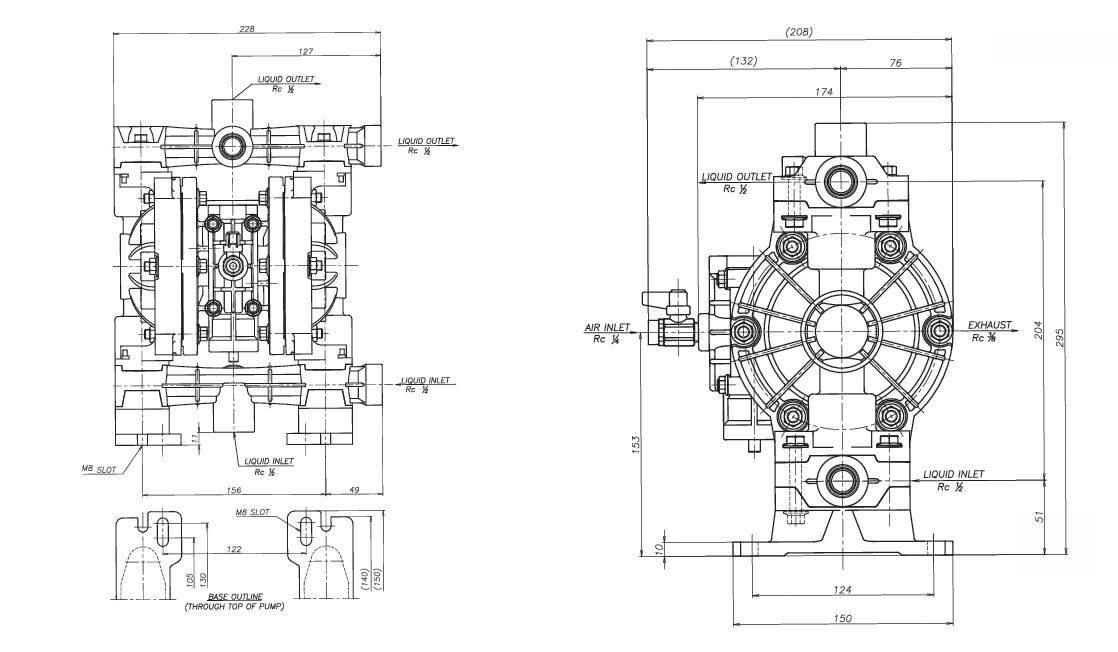

| Dimensions | 29.5 cm high, 22.8 cm wide, 17.4 cm deep |
| Made in | Japan |
Supplied with
- Pump
- Airline ball valve
- Four liquid inlet and outlet plugs
- Pipe seal tape and hexalobular tool (T45, T55)
