Specifications +

Technical Specifications

Max air pressure: 20 to 101 PSI or 1.37 to 6.96 bar
Port Definition: Center Port
Inlet/outlet: 2" BSPT (F) & 2" DIN
Air inlet: 3/4" BSPT (F)
Max flow rate: 800 LPM ( 211 GPM)
Suction lift : 5.5m (dry)
Suction lift: 8m (Wet)
Max solids handling: 8mm
Fluid temperature: 0ºC – 70ºC & (32ºF - 158ºF)
Wetted Parts (Diaphragm/Balls/Seats): Aluminium, SUS (Cast Iron), NBR

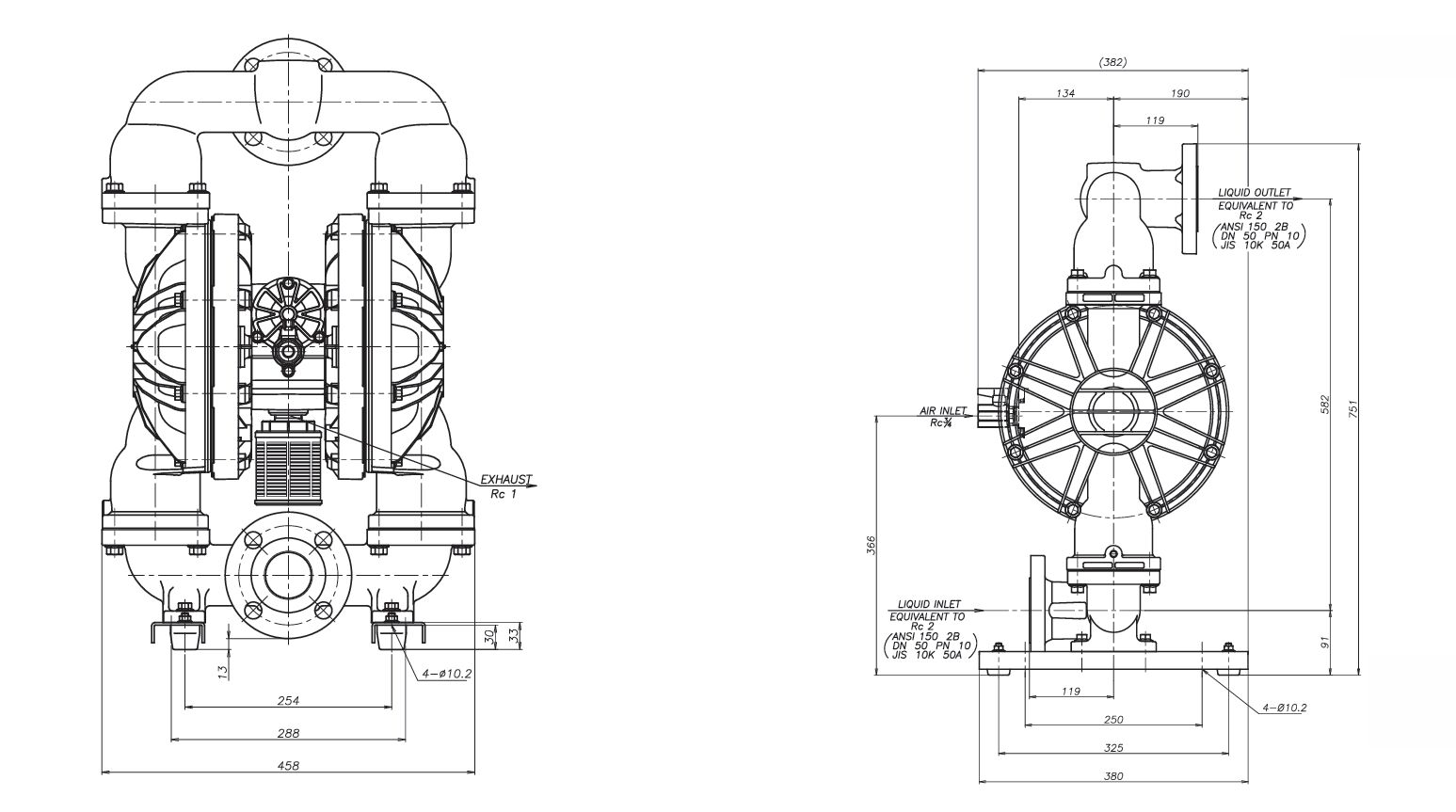

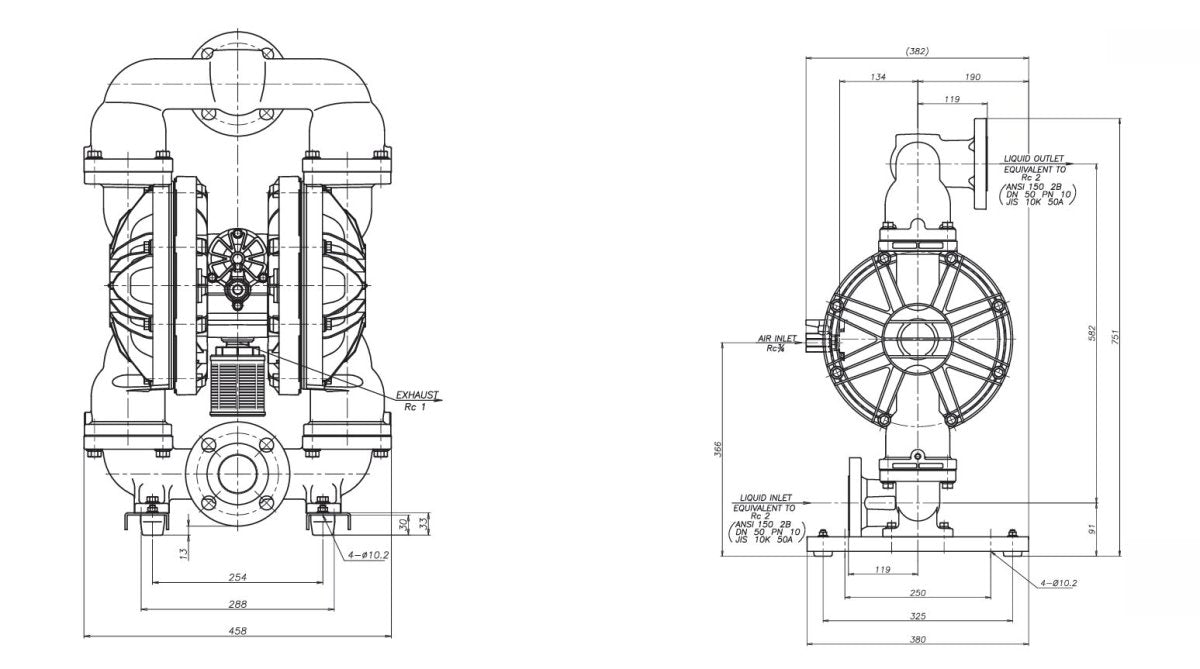

Height: 75.1cm, Width: 45.8cm, Depth: 38cm
Air Motor: Aluminum

Features & Benefits +

Features & Benefits

Optimized Flow: Lighter spool ensures faster, smoother operation.
Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
Dry-Run Safe: No overheating, runs without liquid.
Deadhead Resistant: Withstands closed discharge without damage.
Self-Priming: Eliminates the need for manual priming.
No inline lubrication required: Reduces maintenance and operational costs.
Diaphragm: Nitrile Buna-N (NBR).
Pump Wetted Parts: Aluminium and Nitrile Buna-N
Threaded Flange Manifolds: Provides a wider option of both flange and threaded connection availability.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

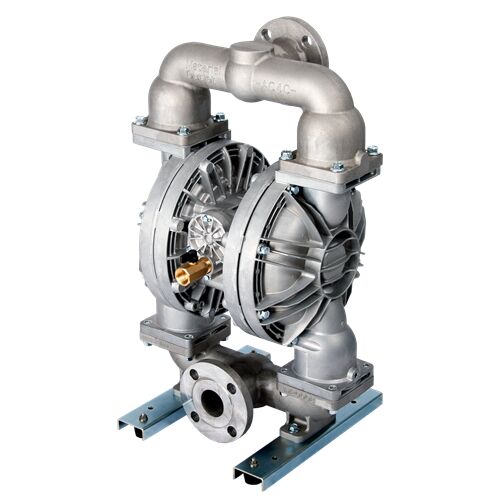

Macnaught Air Operated Double Diaphragm Pump - 2"

SKU: A0210547

Type: Diaphragm Pump

$3,900.26

Inc. GST

💧Australian Engineered Quality

⚙Air Operated Double Diaphragm

📐2" Sizing

🔩Fuel & Fluid Transfer

🏗Workshop & Fleet Maintenance

☑Suits Chemical & Fluid Transfer

Available

Product Highlights −

Macnaught Air Operated Double Diaphragm Pump - 2"

Experience the next level of fluid transfer efficiency with our Max Flow Series Double Diaphragm Pump.
Made in Japan for precision and durability, these pumps operate at a 1:1 ratio with a 800 LPM flow rate, making them ideal for high-volume, low air consumption across industries.
Dependable, low-maintenance, and versatile.
Designed to keep your operations running smoothly.

Package Includes

1 unit of Diaphragm Pump

Note: Recommended fluids (Oils and Engine Coolants (new & used), Oily water, Diesel, Paints, Mild Adhesives)
