Macnaught Hand-operated Spring-Loaded Gear Oil Pump (60L drum) S60H-01
Available

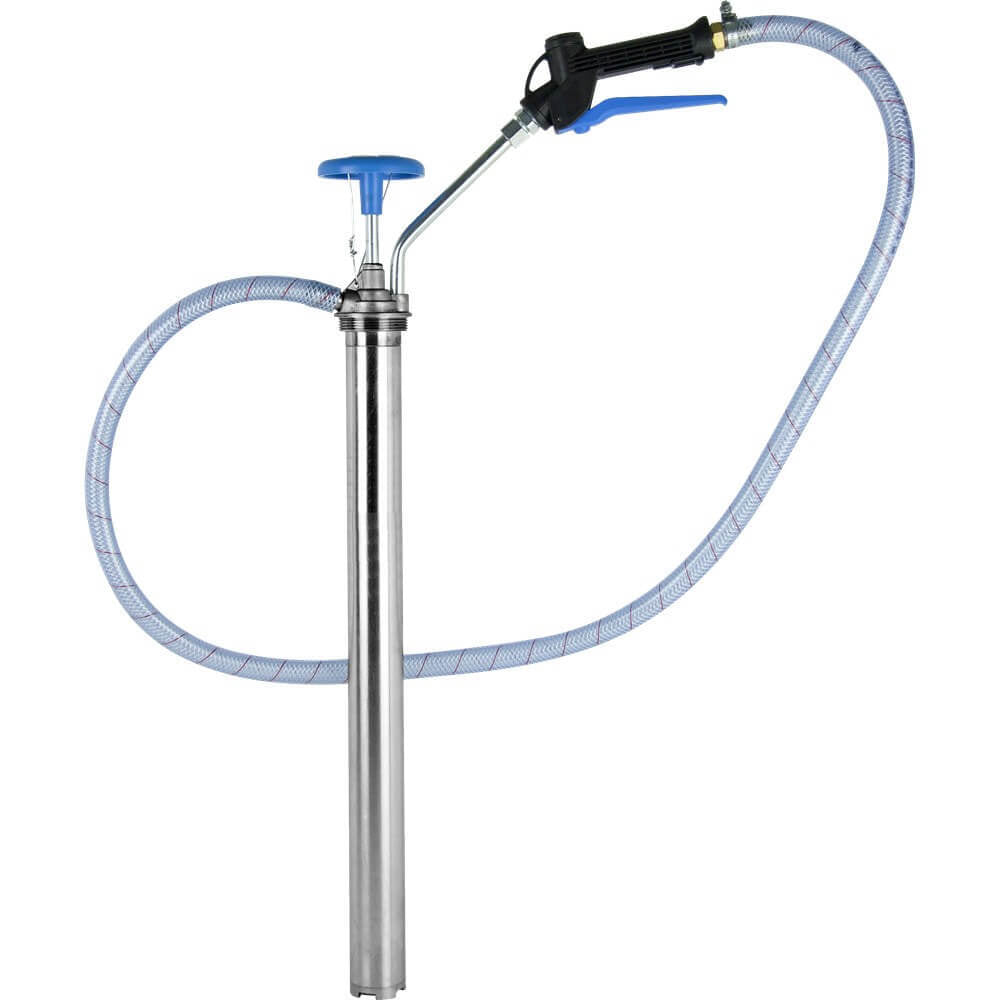

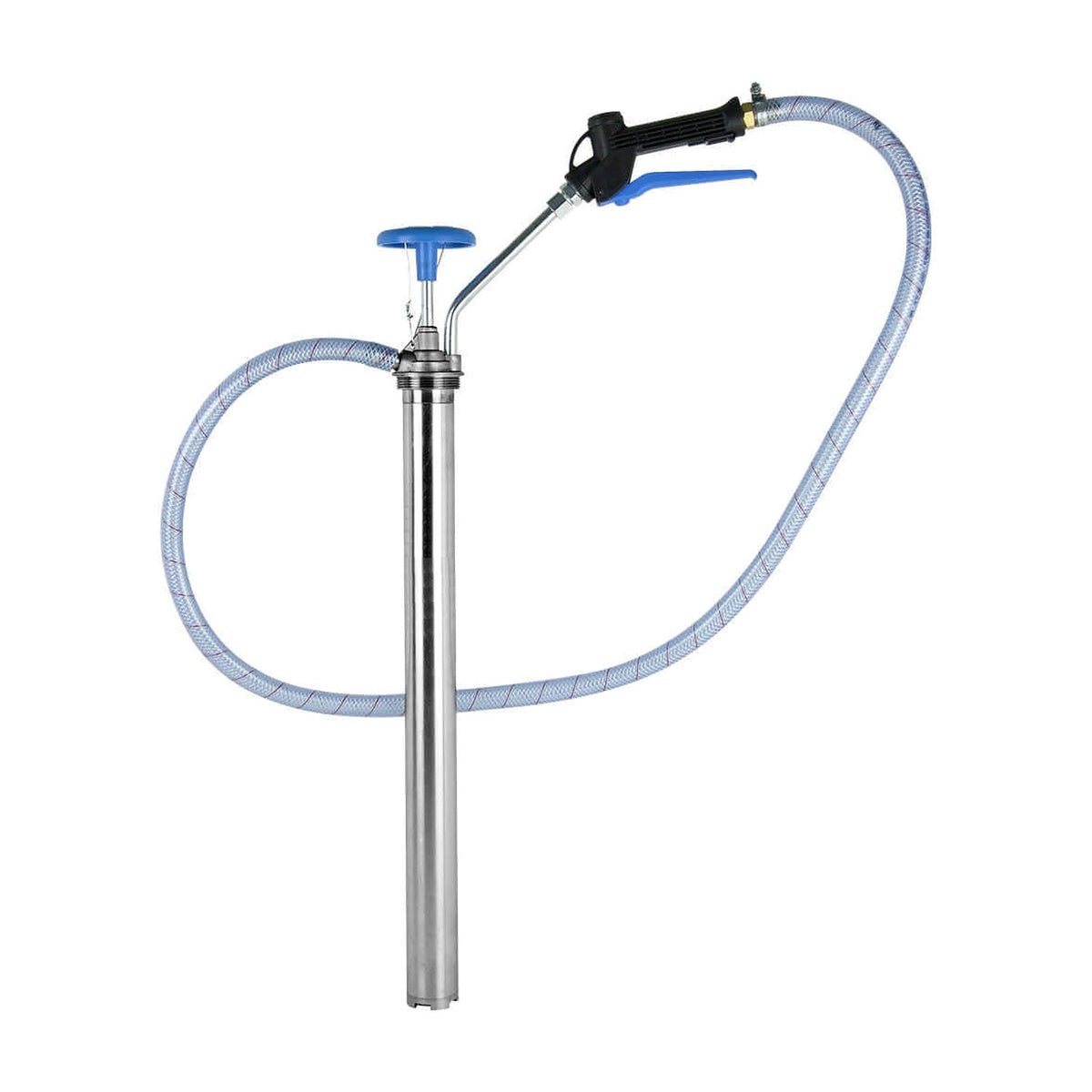

The Macnaught S60H-01 is a spring-loaded hand pump for 60 L drums, supplied with a hose and a dispense gun. Each stroke delivers 500 ml, and the drain-back design lets oil run back from the hose. It is for engine oil, gear oils, ATF and hydraulic fluid. This model has no ATF filter.
The hose is a 1.5 m kink-resistant hose. The pump has a spacer tube fitted for the longer 60 L drum. If you need a 20 L drum, look at the S20H-01.
Where this product is used
- Dispensing engine oil from a 60 L drum
- Pumping gear oils, ATF and hydraulic fluid into equipment
- Workshop or fleet oil top-ups from a drum with a hose and gun
Features
- Spring-loaded hand pump, 500 ml per stroke
- Fits 60 L drums with a bung
- 1.5 m kink-resistant hose with a dispense gun
- Drain-back design
- No ATF filter on this model
- Suits engine oil, gear oils, ATF and hydraulic fluid
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | S60H-01 spring-loaded gear oil pump |
| Part number | S60H-01 |
| Type | Spring-loaded hand pump with hose and dispense gun |
| Output | 500 ml per stroke |
| Drum size | 60 L with bung |
| Hose | 1.5 m kink-resistant hose with dispense gun |
| Drain-back | Yes |
| ATF filter | None on this model |
| Fluids | Engine oil, gear oils, ATF and hydraulic fluid |
| Seal kit | SA60-1K |
| Gun assembly | SA11B-1K |
| Trolley | TR6-01 |
Supplied with
- S60H-01 pump
- 1.5 m kink-resistant hose
- Dispense gun
