Macnaught IBC Mounted Oil Dispensing System With T312 Pump & Gun

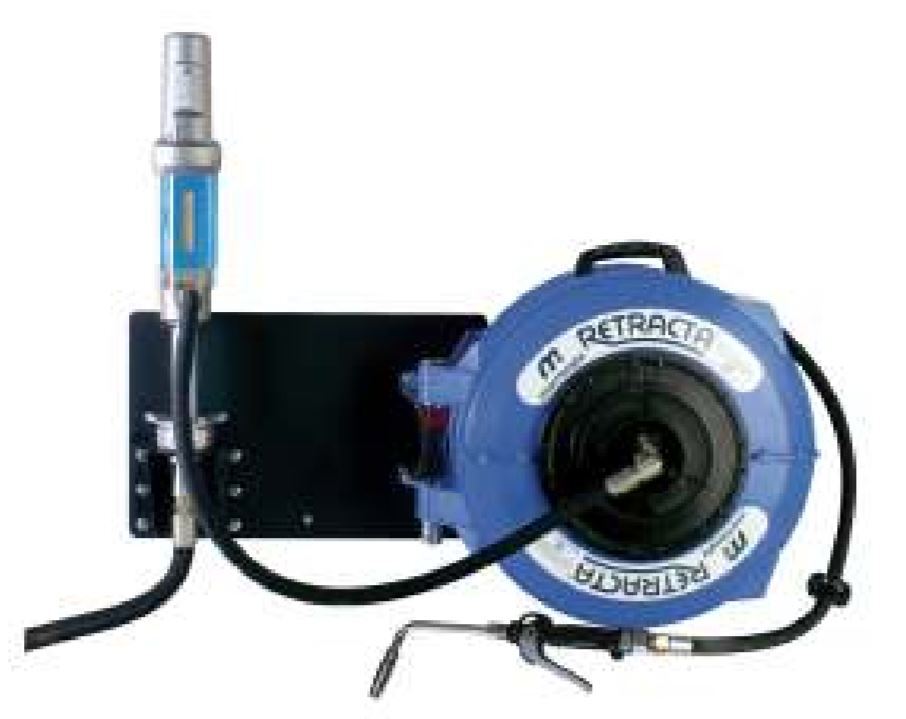

The Macnaught OS400G-01 is a ready-made oil dispensing system for mounting on an IBC or a wall. It has an air-operated pump, a hose reel and a hose-end oil gun on a mounting plate, with suction and feeder hoses. It is the version with a gun.

The pump is an OilMaster T312, a 3:1 T-series pump. It has a free flow of up to 13 L/min and is rated for oils and coolants up to SAE140. OilMaster T-series pumps have a polymer air motor and a built-in pressure relief valve. The ratio is how much the pump multiplies your air pressure at the oil outlet. A higher ratio gives more push for long hose runs and thick oil, but usually less oil per minute. A lower ratio usually moves more oil with less push. The OS400G is the same system as the OS500G, except that the OS500G has the R300 pump. The R300S-01 pump has a free flow of up to 23 L/min. Choose the OS400G for the T-series pump, or the OS500G for more oil per minute. In Macnaught part numbers, B means no gun, G means an unmetered gun, GE means a metered gun (the meter is built into the gun) and IM means an in-line meter (the meter is fitted in the hose line).

Where this product is used

• Pumping and dispensing oil from an IBC or bulk container
• Wall mounted oil dispensing with a gun on the reel
• Pumping oils and coolants up to SAE140

Features

• Ready-made oil system for IBC or wall mounting, with a gun
• T312 3:1 OilMaster air-operated pump, free flow up to 13 L/min
• Hose reel and mounting plate included, with suction and feeder hoses
• Hose-end oil gun included
• The only differences to the OS500G-01 are the pump and its flow
• How to choose: OS400G-01 has the T312 pump and a gun, OS400B-01 has no gun and OS500G-01 has the higher-flow R300 pump
