Macnaught IBC or Pod Mounted Oil Dispensing System - T512 Pump
Available

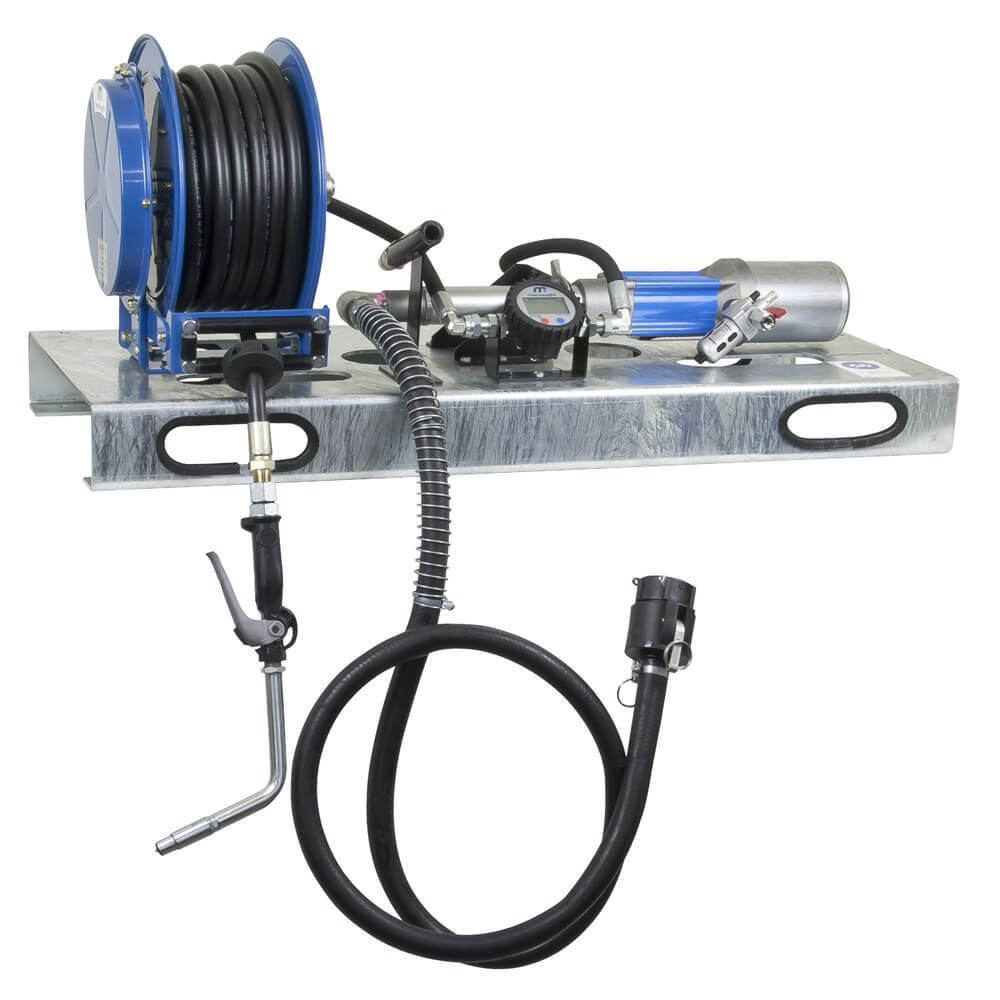

The Macnaught OS900IM-01 is an IBC oil system with a T512 5:1 pump and an in-line oil meter, so you can see how much oil you have pumped. It is made to mount on a 1000 litre tote with a metal support frame. The tote is not included.
An in-line meter sits in the hose line. The Macnaught meter for this range is the IM012E, an oval gear meter with a digital display and a resettable batch total. Its accuracy is +/-0.5% and its flow range is 1-30 L/min. The pump is a 5:1 OilMaster T-series pump with a free flow of up to 11 L/min. OilMaster T-series pumps have a polymer air motor and a built-in pressure relief valve. The ratio is how much the pump multiplies your air pressure at the oil outlet. A higher ratio gives more push for long hose runs and thick oil, but usually less oil per minute. A lower ratio usually moves more oil with less push. OS900IM-01 has the meter, OS900-01 has no gun and no meter, OS900G-01 has an unmetered gun and OS900GE-01 has a metered gun. In Macnaught part numbers, B means no gun, G means an unmetered gun, GE means a metered gun (the meter is built into the gun) and IM means an in-line meter (the meter is fitted in the hose line).
Where this product is used
- Pumping oil out of a 1000 litre IBC and keeping track of how much you dispense
- Workshops and fleet depots that need to record oil volumes
- Pumping oils and coolants up to SAE140
Features
- IBC oil system with an in-line oil meter

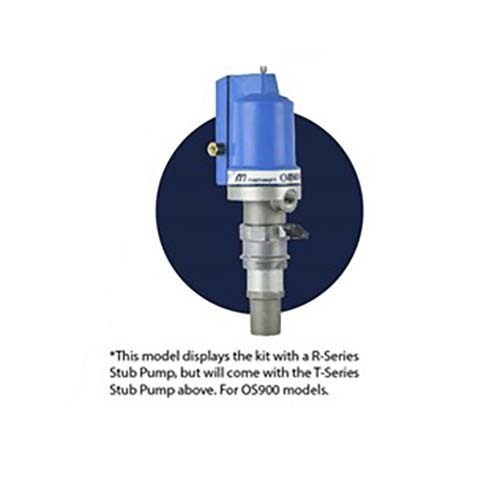

- T512S-01 5:1 OilMaster pump, free flow up to 11 L/min
- Solid galvanised steel base frame
- Twin pedestal oil reel with 15 m of 1/2" hose
- Includes connecting fittings, hoses, breather and couplers
- IM012E in-line meter: digital display with a resettable batch total, accuracy +/-0.5%, flow range 1-30 L/min
- Designed for 1000 litre totes with a metal support frame, with the tote not included
- Fit a ball valve to the pump air inlet and take care when pumping inflammable liquids
- How to choose: OS900IM-01 has an in-line meter, OS900-01 has no gun, OS900G-01 has an unmetered gun and OS900GE-01 has a metered gun
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | OS900IM-01 |
| Part number | OS900IM-01 |
| Type | IBC oil system with in-line oil meter |
| Pump | T512S-01 5:1 OilMaster T-series air-operated pump |
| Pump free flow | Up to 11 L/min |
| Frame | Solid galvanised steel base frame |
| Hose reel | Twin pedestal oil reel, 15 m of 1/2" hose |
| Meter | In-line oil meter |
| Suits | 1000 litre totes with a metal support frame |
| Tote included | No |
| Suitable fluids (pump) | Oils and coolants up to SAE140 |
Related Macnaught products
- Macnaught IBC or Pod Mounted Oil Dispensing System - T500 Pump: Other size or version
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught IBC or Pod Mounted Oil Dispensing System - T512 Pump
SKU: A0082821 | Model: OS900IM-01
The OS900IM-01 is Macnaught's IBC oil system with a T512S-01 5:1 pump and an in-line oil meter. It has a galvanised steel base frame, a twin pedestal reel with 15 m of 1/2" hose, and all connecting fittings, hoses, breather and couplers. It is made for 1000 litre totes. The tote is not included.
