Macnaught Multi-Purpose Gear Oil Pump - Delivery Spout Only C7N-01
Available

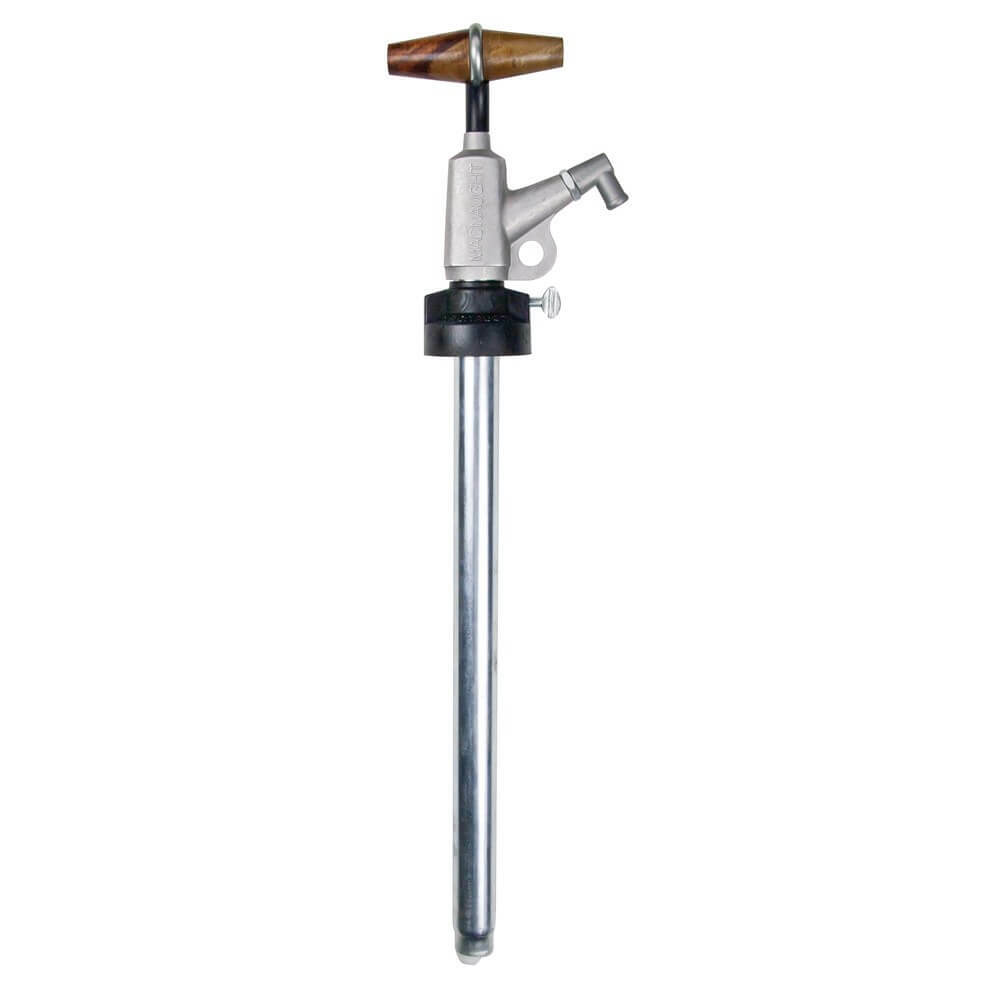

The Macnaught C7N-01 is the C7 hand-operated oil pump without a hose or nozzle. It has a delivery spout and a built-in nozzle holder. It is for gear oils, transmission fluids and other lubricating oils up to SAE 140, as well as kerosene and two-stroke mix, and it fits most drums from 15 to 25 L using the bung adaptors supplied.
The pump is supplied with three bung adaptors only. The C7 range has four models: C7-01 (standard), C7-51 (adds the CF strainer for ATF and hydraulic oils), C7N-01 (no hose) and C7Z-01 (zinc, for underground mining). It delivers about 100 ml per stroke on the down stroke.
Where this product is used
- Pumping gear oils and transmission fluids from 15 to 25 L drums straight into a container
- Dispensing lubricating oils up to SAE 140
- Moving kerosene or two-stroke mix
Features
- Supplied without a hose or nozzle
- Delivery spout with a built-in nozzle holder
- Delivers about 100 ml per stroke on the down stroke
- Fits most drums from 15 to 25 L using the bung adaptors
- Pumps gear oils, transmission fluids and lubricating oils up to SAE 140, plus kerosene and two-stroke mix
- Wood handle and fully serviceable
- Optional CF strainer for ATF, hydraulic oils and oils of similar viscosity
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | C7N-01 multi-purpose gear oil pump with delivery spout |
| Part number | C7N-01 |
| Type | Hand-operated drum pump, no hose |
| Output | About 100 ml per stroke |
| Drum size | Most drums from 15 to 25 L |
| Hose and nozzle | Not supplied |
| Fluids | Gear oils, transmission fluids and lubricating oils up to SAE 140, kerosene and two-stroke mix |
| Wetted parts | Aluminium, steel, Viton, Delrin and zinc |
| Bung adaptors | Three supplied |
| Seal kit | C7-1K |
| Trolleys for the range | TR20G and TR5-01 |
Supplied with
- C7 pump with delivery spout
- Three bung adaptors
- No hose or nozzle supplied
