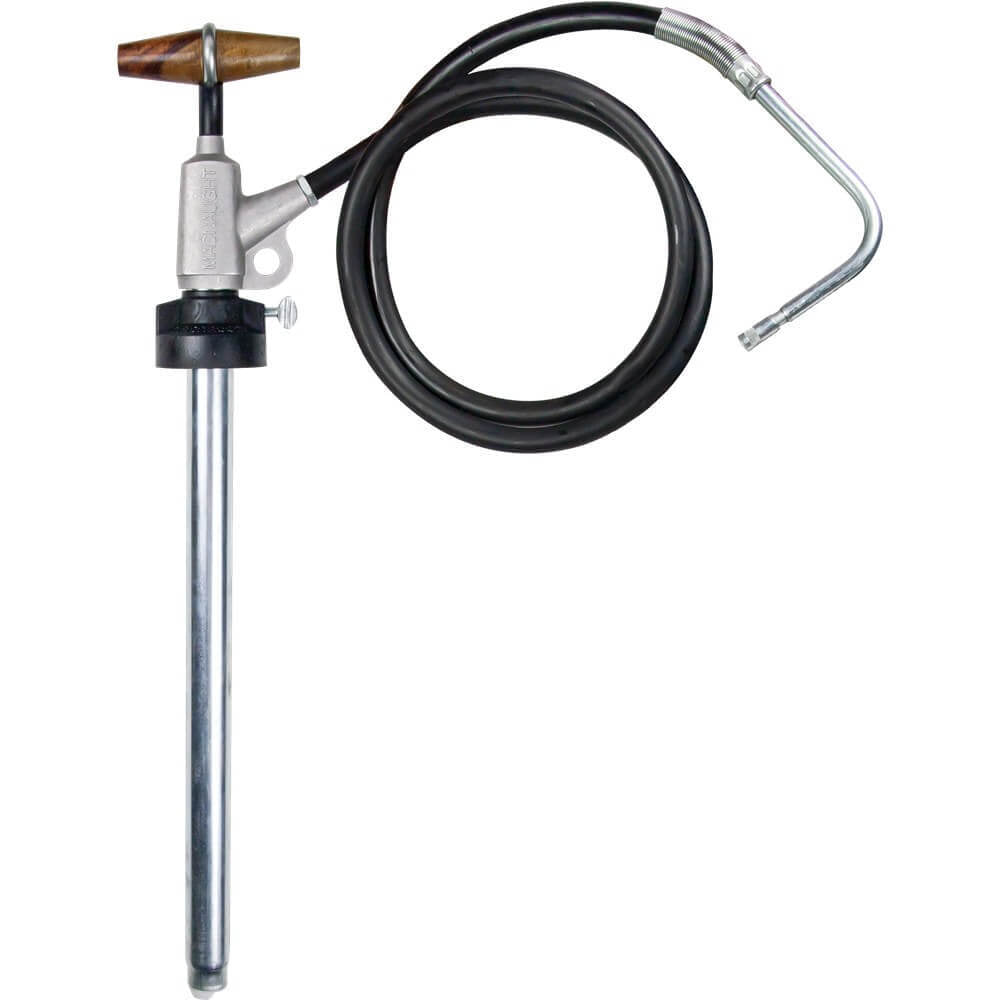

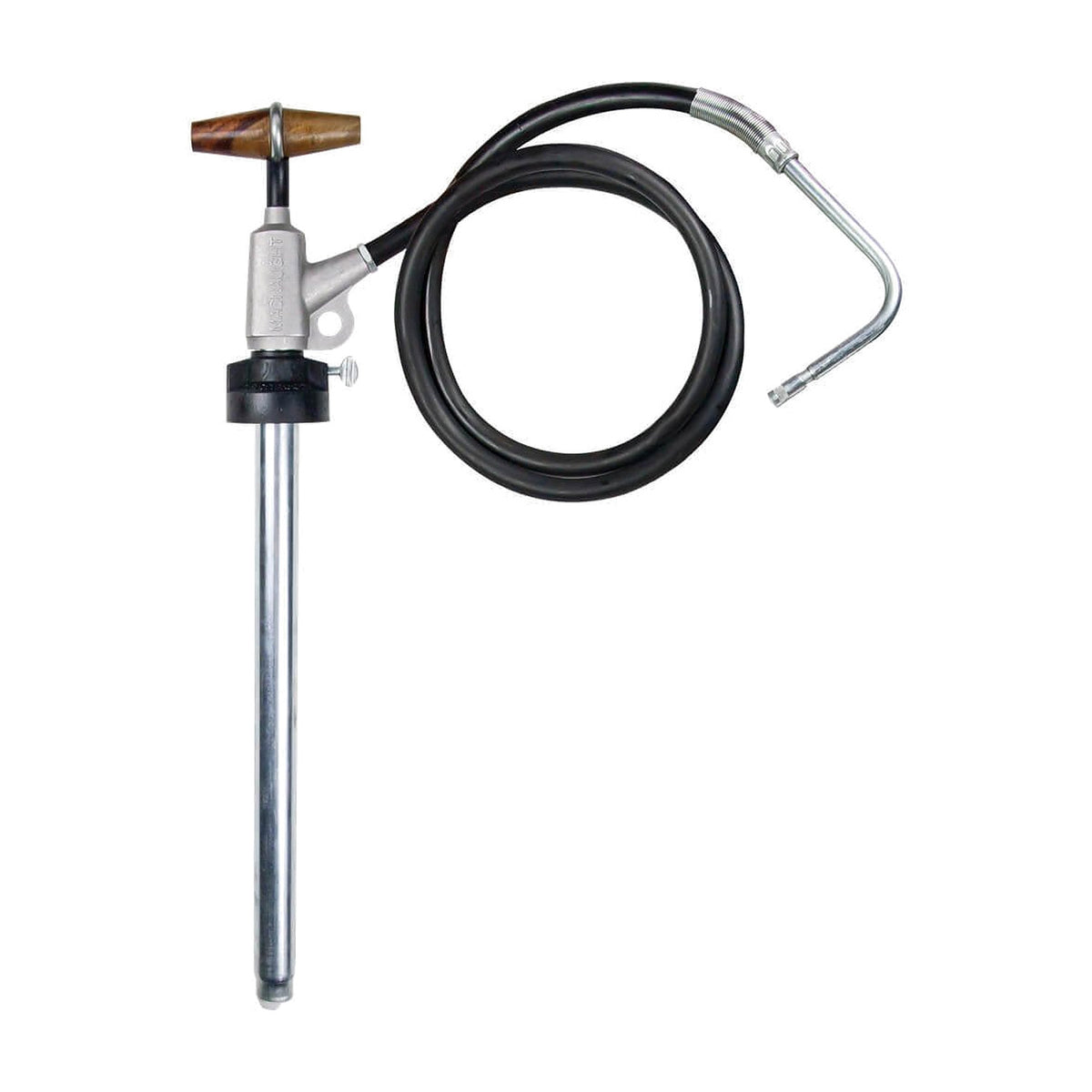

Macnaught Multi-Purpose Oil Pump Underground Mining (20L Drum) C7Z-01

The Macnaught C7Z-01 is the zinc version of the C7 hand-operated oil pump, made for underground mine sites. It pumps gear oils, transmission fluids and other lubricating oils up to SAE 140, plus kerosene and two-stroke mix, and it fits most drums from 15 to 25 L using the three bung adaptors supplied.

It comes with a 1.8 m delivery hose with a manual shut-off (non-drip) nozzle and a built-in nozzle holder. The pump delivers about 100 ml per stroke on the down stroke. The C7 range has four models: C7-01 (standard), C7-51 (adds the CF strainer for ATF and hydraulic oils), C7N-01 (no hose) and C7Z-01 (zinc, for underground mining). The C7-51 with strainer is not the zinc model. Open the nozzle before you pump so pressure cannot build up and damage the hose.

Where this product is used

• Pumping gear oils and transmission fluids on underground mine sites
• Dispensing lubricating oils up to SAE 140 from 15 to 25 L drums
• Moving kerosene or two-stroke mix

Features

• Zinc version of the C7, for underground mining
• Delivers about 100 ml per stroke on the down stroke
• Fits most drums from 15 to 25 L using three bung adaptors
• Pumps gear oils, transmission fluids and lubricating oils up to SAE 140, plus kerosene and two-stroke mix
• 1.8 m hose with manual shut-off (non-drip) nozzle
• Built-in nozzle holder and wood handle
• Fully serviceable
• Optional CF strainer for ATF, hydraulic oils and oils of similar viscosity

Key specifications

Supplied with

• C7 pump (zinc model)
• 1.8 m delivery hose with manual shut-off nozzle
• Three bung adaptors for 15 to 25 L containers
