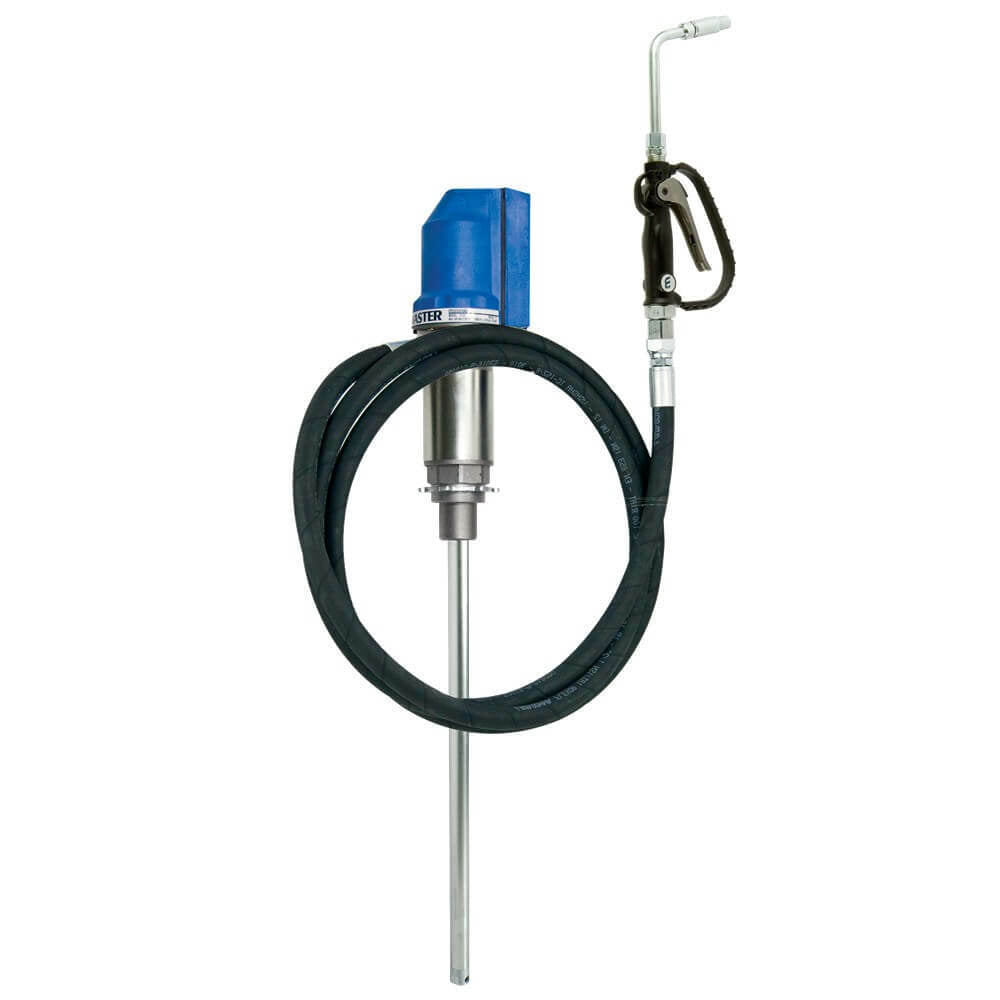

Macnaught Oil Dispensing Kit 1:1 - OILMASTER Unmetered Oil Gun
Available
The Macnaught T112THG-01 is a 1:1 oil dispensing kit for workshops that fill from a 205 L drum. It combines the OilMaster T112T-01 1:1 air-operated drum pump, the HG20R-01 unmetered oil gun and a 3m delivery hose, so the main parts come in one box. The kit has an estimated maximum flow of 8 L/min on SAE10 oil. The gun is unmetered, so there is no meter display.
The pump is from the OilMaster T-series, which uses less air than the R-series but moves less oil at the same ratio. At 1:1 it moves the most oil but has the least push, so keep the hose run short and the oil thin. The ratio is how much the pump multiplies your air pressure at the oil outlet. A higher ratio gives more push for long hose runs and thick oil, but usually less oil per minute. A lower ratio usually moves more oil with less push. The HG20R-01 gun is an unmetered oil control gun with a rigid extension, an automatic non-drip nozzle, a latching trigger with trigger guard and a rating up to 6,900 kPa (1,000 psi). For thicker oil or a longer hose run, step up to the 3:1 or 5:1 OilMaster kit. If you want a meter on the gun, choose the metered version of this kit.
Where this product is used
- Dispensing oil from a 205 L drum in a workshop
- Service work that needs a pump, hose and gun supplied together
Features
- Complete kit of a T112T-01 drum pump, a gun and a 3m hose
- Unmetered oil control gun with a non-drip nozzle and a latching trigger
- Gun rating up to 6,900 kPa (1,000 psi)
- Rigid gun extension and an automatic non-drip nozzle
- Estimated maximum flow of 8 L/min on SAE10 oil through the whole kit
- Suits oils up to SAE90, coolants, kerosene and diesel
- Hose included: 3m x 3/4" inside diameter
- Pump is the OilMaster T112T-01 drum pump, with a free flow of up to 23 L/min on its own
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | T112THG-01 |
| Part number | T112THG-01 |
| Range | OILMASTER / T-SERIES |
| Type | Air-operated oil dispensing kit |
| Ratio | 1:1 |
| Pump | T112T-01 drum pump |
| Gun | HG20R-01 unmetered oil control gun |
| Hose | 3m x 3/4" inside diameter |
| Estimated maximum kit flow, SAE10 oil | Up to 8 L/min |
| Pump free flow (pump on its own) | Up to 23 L/min |
| Suitable fluids | Oils up to SAE90, coolants, kerosene, diesel |
| Gun rating | Up to 6,900 kPa (1,000 psi) |
| Drum size | 205 L |
Supplied with
- T112T-01 1:1 air-operated drum oil pump for 205 L drums
- HG20R-01 unmetered oil control gun
- Delivery hose, 3m x 3/4" inside diameter
Related Macnaught products
- Macnaught Overhaul Kit to Suit T112 T112-1K: Overhaul kit
- Macnaught Oil Dispensing Kit 3:1 - OILMASTER Unmetered Oil Gun: Other size or version
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught Oil Dispensing Kit 1:1 - OILMASTER Unmetered Oil Gun
SKU: A0082883 | Model: T112THG-01
The T112THG-01 kit has the OilMaster T112T-01 1:1 drum pump, the HG20R-01 unmetered oil gun and a 3m delivery hose. Estimated flow through the whole kit is up to 8 L/min on SAE10 oil. The pump on its own has a free flow of up to 23 L/min.
