Macnaught OTL-L5E1500 1500L OTSB Tank, Lubemate Pump

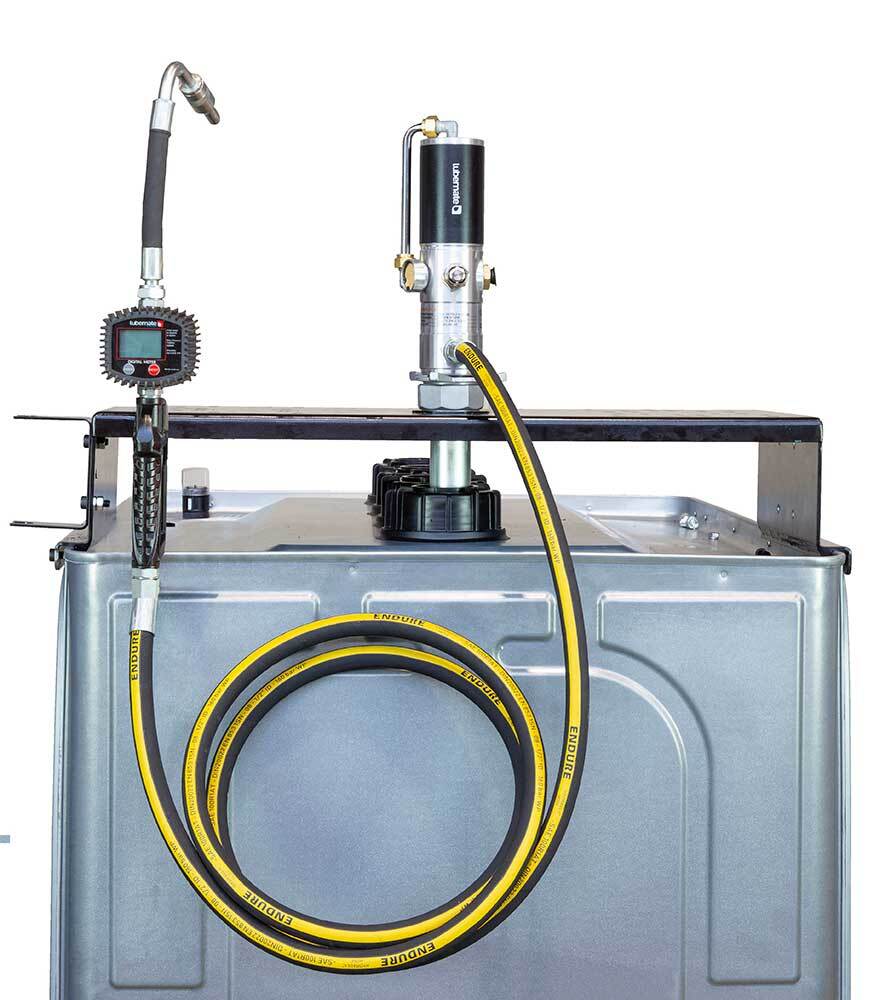

The Macnaught OTL-L5E1500 is a 1500L OTSB double-wall oil tank package for a workshop, depot or farm that wants the tank and the pump matched. It comes with the OTSB1500 tank, a Lubemate 5:1 ratio oil pump, a metered oil gun and a mounting bracket. There is no hose reel in this package.

The tank is double-walled. The inner tank is blow-moulded HDPE and the outer tank is galvanised sheet metal. The outer tank works as a collecting tray and can hold the full volume of the inner tank. A 5:1 pump puts out oil at 5 times the pressure you feed it. How to choose: the OTSB1500 tank holds 1500 L. The IM version adds an in-line meter with an unmetered gun instead.

Where this product is used

• Storing and dispensing oil from a double-wall tank
• Oil top-ups in a workshop, depot or farm shed
• Dispensing jobs where you want a metered gun

Features

• 1500L OTSB1500 double-wall tank with an HDPE inner tank and a galvanised sheet metal outer tank
• Outer tank works as a collecting tray and can hold the full volume of the inner tank
• Lubemate 5:1 ratio oil pump with mounting bracket (IBC030)
• No hose reel in this package, choose the 1215 version if you want one
• Metered oil gun version (E)
• Leak detector between the inner and outer tank, plus an optical leak probe and level indicator
• Base frame for ventilation under the tank and integrated handles
• Four connections on the top only, none below the oil level

Key specifications

Supplied with

• 1500L OTSB1500 double-wall tank
• Lubemate 5:1 ratio oil pump
• Mounting bracket (IBC030)
• No hose reel
• Metered oil gun (E version)
