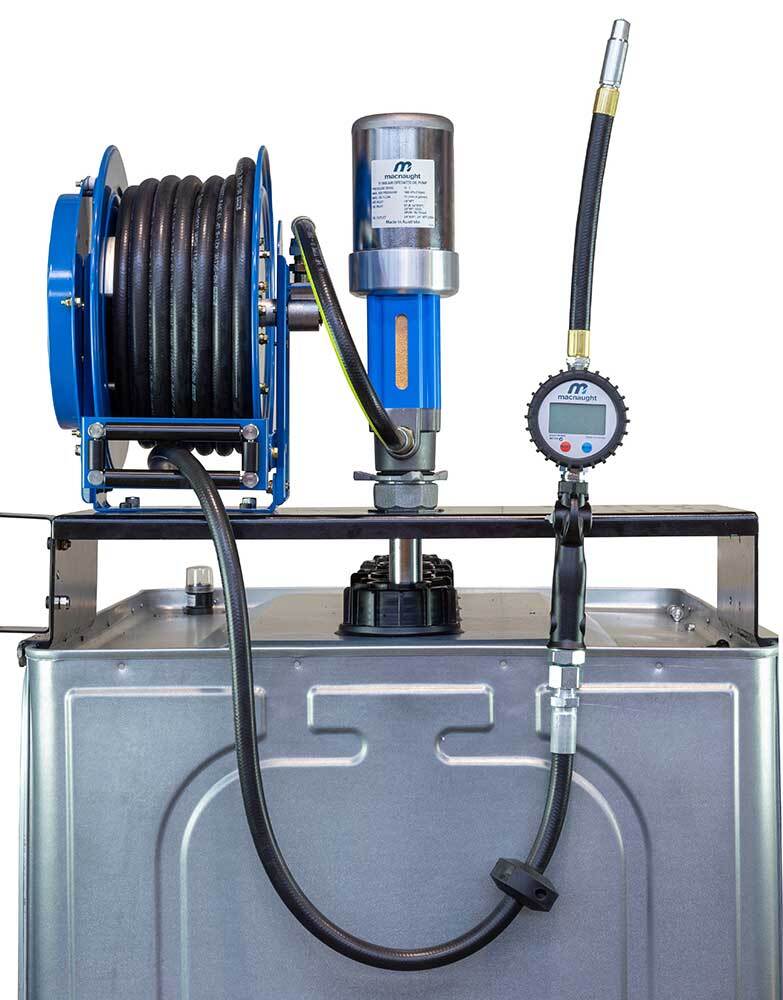

OTSB Tank 1000L With R Series Oil Pump, Reel, and Metered Gun

• Macnaught OTSB Tank Packages provides a complete solution from small to heavy duty fluid dispense applications.
• The Macnaught Tank packages are built and configured exclusively with Macnaught branded equipment's.
• The package includes a 1000L Tank, R-Series 5:1 pump, sturdy mounting bracket, heavy-duty Oil Reel, Metered oil gun.
• The packages will be shipped with all the necessary components and accessories to build a complete storage and dispensing system.
• Warranty: 2 years (Tank) & respective product warranty.

Package Contents

• OTSB1000 - 1000L Tank
• R500S-01 - Macnaught R-Series 5:1 ratio pump
• HG20F-012E-01 - Flexible Metered Oil Control Gun
• MOTP1215-01 - Macnaught Twin pedestal 1/2" x 15m oil reel
• IBC031 - Sturdy Mounting Bracket
• All hoses, clamps, components and fittings

All About Macnaught OTSB Tank

• The OTSB inner tank is manufactured from high molecular HDPE, with the outer tank constructed from galvanised sheet metal.
• The outer tank functions as a collecting tray and has the capacity to hold the full volume of the inner tank.
• The tank design is suitable for the storage of a single fluid and can be used for the storage of many fluids such as Lubricating oils, heat transfer oils, mineral oils, hydraulic oils, fatty oils, fuel oil, diesel in the private, industrial and commercial sector.
• Integrated handles enable easy handling of the tank.
• The low centre of gravity provides a high degree of static stability.
• These tanks are compact and available in different sizes (400L/750L/1000L/1500L) providing more flexibility for placement in any workshop

Features

• Suitable for lubricating oils, transfer oils, mineral oils, hydraulic oils, fuel oil and diesel.
• A low centre of gravity provides a high degree of static stability.
• Optical leak probe and level indicator.
• Inner tanks blow moulded, high molecular HDPE, is corrosion-resistant.
• The outer tank is galvanised sheet metal that acts as a collecting tray to hold a full volume of the inner tank.
• The base frame ensures adequate ventilation under the tank.
