Macsafe MAC-ADJ Adjustable Prop Lock - Suits Most Acrow and Formwork Props
Available
The Macsafe Proplock Adjustable (MAC-ADJ) is a lock-out device for adjustable construction props that adjusts to suit different prop diameters, up to a maximum internal diameter of 65mm. It is for Acrow and Gorilla-type props, telescopic steel multi props, adjustable jack props and formwork props.

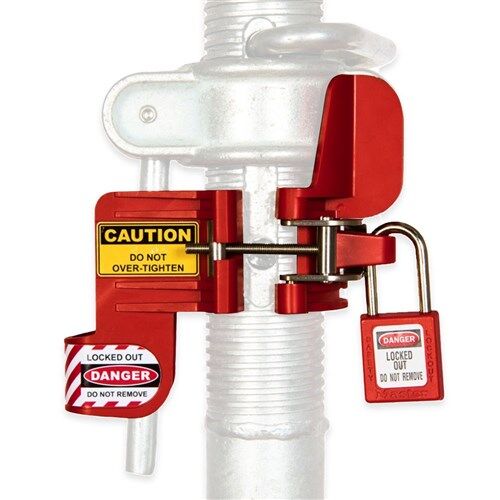

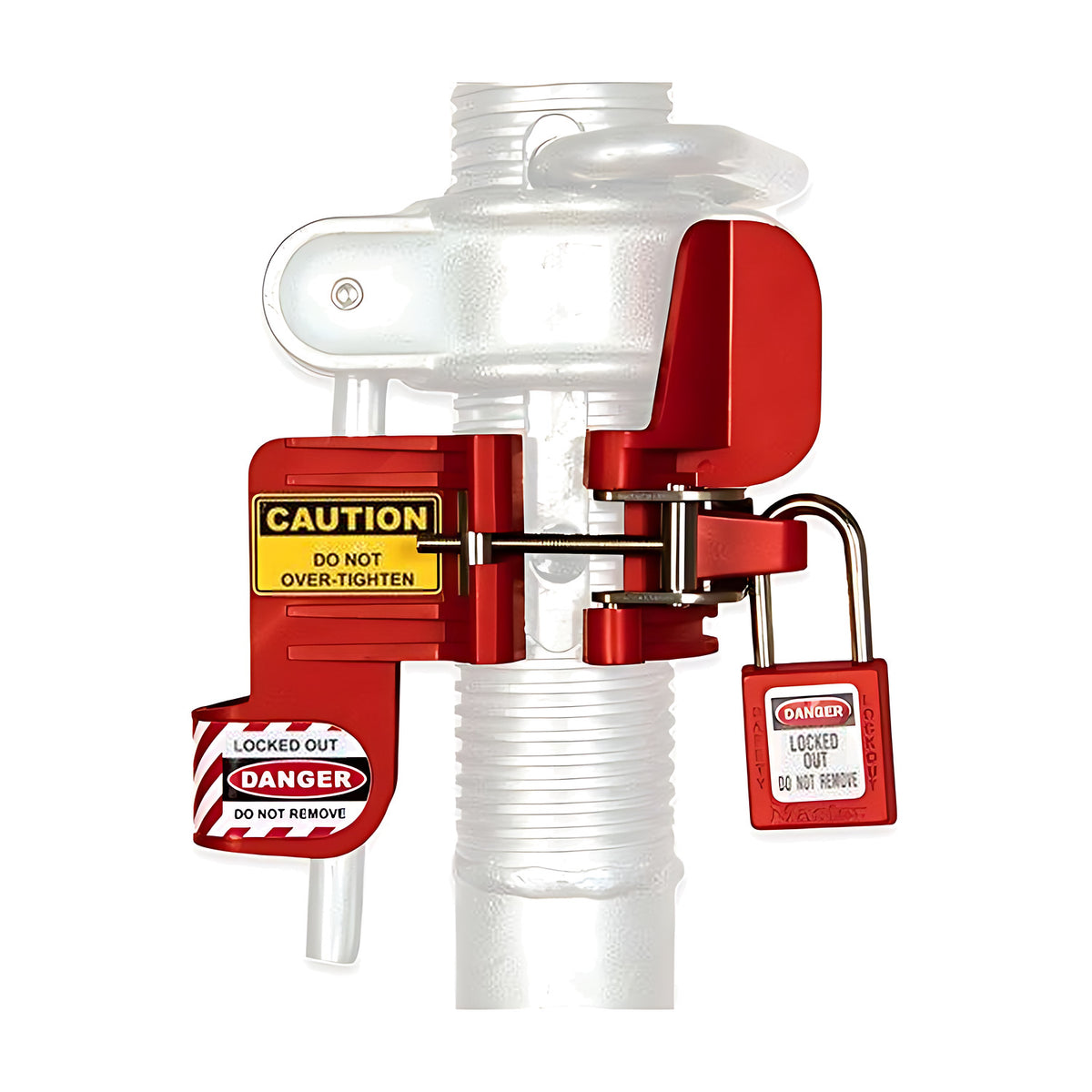

A stainless steel screw thread sets the lock to the prop diameter and a cam lock handle tightens it into position. Once locked, a personal safety lock, or a hasp for several locks, goes through the clamp to prevent unauthorised use of the prop. It is made from impact-resistant nylon and stainless steel, fits or removes in under 10 seconds, and can be fitted to a prop that is already erected without dismantling it. It is reusable and designed not to shrink or swell in harsh weather. It is a device that locks out the prop's adjustment and does not publish a load rating for the lock. For standard Acrow props of 60 to 63mm see the Macsafe MAC-STD Standard Prop Lock.
Where this product is used
- Locking out adjustable props of different diameters, including Acrow, Gorilla-type and formwork props
- Construction, civil, mining, renewable energy, defence, and rescue and safety work using adjustable props
Features
- Screw thread adjusts the lock to the prop diameter, up to 65mm internal diameter
- Cam lock handle tightens it into position
- Suits Acrow and Gorilla-type, telescopic steel multi, adjustable jack and formwork props
- Fits or removes in under 10 seconds, including on an erected prop
- Impact-resistant nylon and stainless steel construction
- Accepts a personal safety lock, or a hasp for several locks
- Patented and registered design
Key specifications
| Specification | Detail |
|---|---|
| Brand | MacSafe |
| Type | MAC-ADJ Proplock Adjustable |
| Suits | Acrow and Gorilla-type, telescopic steel multi, adjustable jack and formwork props |
| Size (H x W x L) | 100 x 160 x 175mm |
| Internal diameter | Up to 65mm |
| Weight | 420g |
| Material | Impact-resistant nylon and stainless steel |
| Colour | Red |
| Padlock | Not included |
| Closure | Expansion joint and lever |
Supplied with
- Set the prop to the required height on a clean, flat, stable surface, then fit the lock over the prop so that the adjusting handle is captured. Put a personal safety lock, or a hasp for several locks, through the clamp, and before removing any lock confirm that it is safe to do so under your site lock-out tag-out procedure. Padlocks are not included
Choosing the right option
Choose the MAC-ADJ when your props vary in diameter or come from different makers, up to 65mm internal diameter. If all your props are the common 60 to 63mm Acrow or Gorilla-type, the Macsafe MAC-STD Standard Prop Lock is smaller and lighter at 220g against 420g. The lock does not include a padlock, and Macsafe does not publish a load rating, so follow your site lock-out tag-out procedure.
Related Macsafe products: Macsafe MAC-STD Standard Prop Lock.
