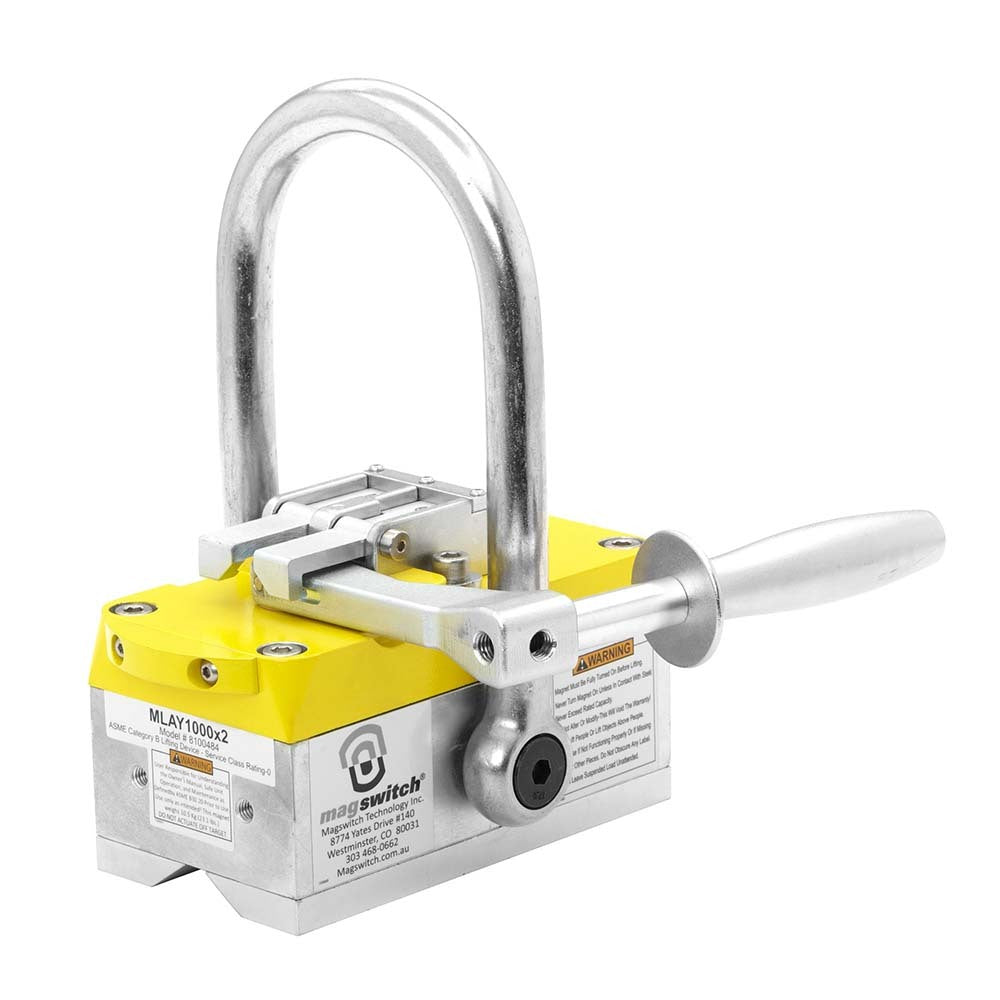

Magswitch MLAY1000x2 Lifting Magnet

• Magswitch LAY series magnets utilize different size magnets to attain different field depths.
• This allows for greater working loads and increased control over larger work pieces.

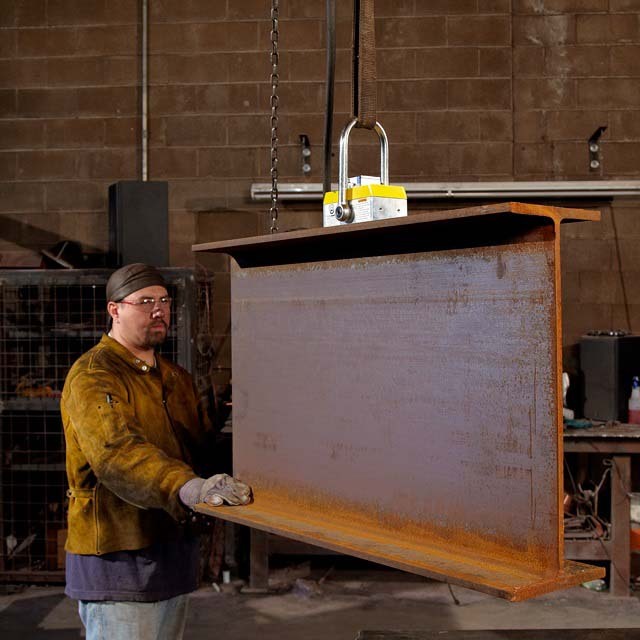

• The MLAY1000x2 is a lightweight heavy lifting magnet ideal for lifting thick sheet, beams, pipe, and performs well on air gaps such as rust and dirt.
• It features a unique single swivel hook design for lifting from horizontal to vertical.

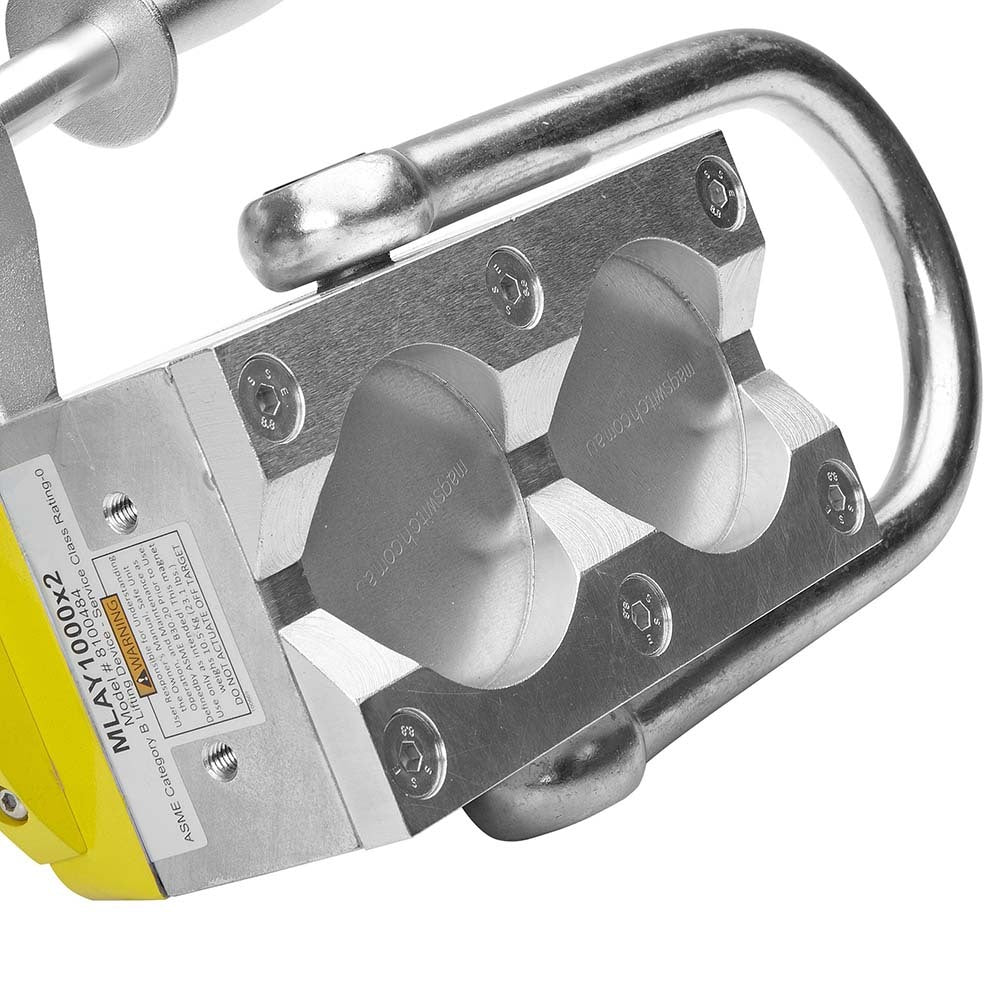

• With customizable pole shoes to fit almost any application, the LAY is a great all around tool that is perfect for picking pipe and round as well as large plate steel.

Max Breakaway*
2000 lbs/907 kg
Safe Working Load*
667 lbs/303 kg
Full Saturation Thickness
12.7mm
Max Safe Shear*
125.4 lbs/57 kg
Minimum Thickness for De-Stack
0.8" / 19.1mm
Net Weight
23.8 lbs/10.8 kg
Mounting Thread
M8x1.25
Overall Height
269.5 mm
Magnetic Pole Footprint
177.5x96.0 mm

* Max Breakaway determined in laboratory environment on 2" thick SAE1018 Steel with surface application. Always test the magswitch in each application before deployment.

About MSA Magswitch

• The Magswitch Lifting Magnets are a powerful tool designed for moving heavy steel sections, beams, and components.
• These magnets allow for operators to safely and easily lift steel material on and off trucks, cutting beds, guillotines, saws, etc.
• Not only do these magnets substantially save time and allow for increase in production, they also greatly reduce WHS risks such as back injury caused by lifting heavy steel objects.
• Magswitch technology values Heavy Lifting capabilities to a whole new level of strength & safety.

Specifications

Features

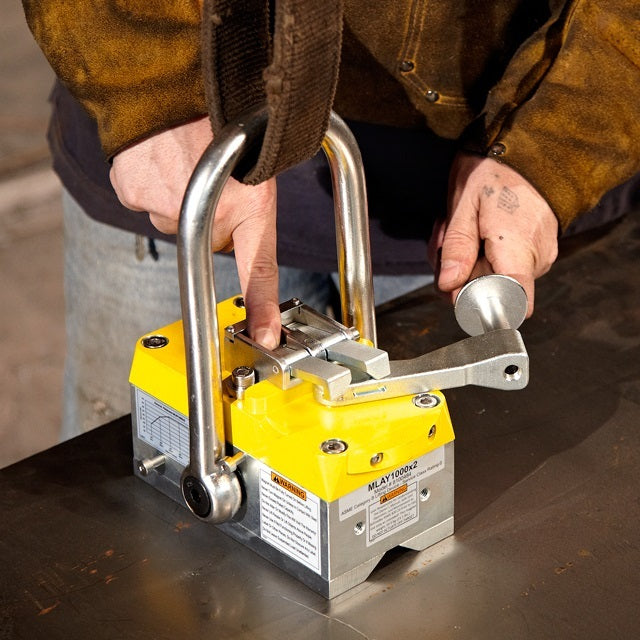

• Lock On and Off handle – Magnet turns completely On and Of
• Superior hold on thin steel (7mm deep field)
• Compact, lightweight and easy actuation
• Lifts large flat sheets, beams and pipe
• Performs well on air gaps such as rust and dirt
• Customizable pole shoes to fit almost any application
• Magnet stays clean as you can wipe off debris easily
