Magswitch MLAY600 Lifting Magnet
Available
The Magswitch MLAY600 is a light-duty lifting magnet for thin sheet and small to medium jobs, including tight spaces. You switch the magnet on and off by hand, so it needs no power, and a locking handle holds it in the on or off position. A pivoting full-swivel hook lets you lift from the top or the side.
It holds flat and round steel and grips thin material and uneven surfaces. It has a 3:1 safe working load of 88kg (194 lb) and a maximum breakaway of 265kg (584 lb). Maximum breakaway is the force needed to pull the magnet off clean, flat, thick steel in the lab test (2" thick SAE1018 steel). It is not a safe working load, and many factors change the real figure, so test the magnet on your job before you lift.
Where this product is used
- Lifting thin steel sheet
- Small to medium lifting jobs
- Lifting steel in tight spaces

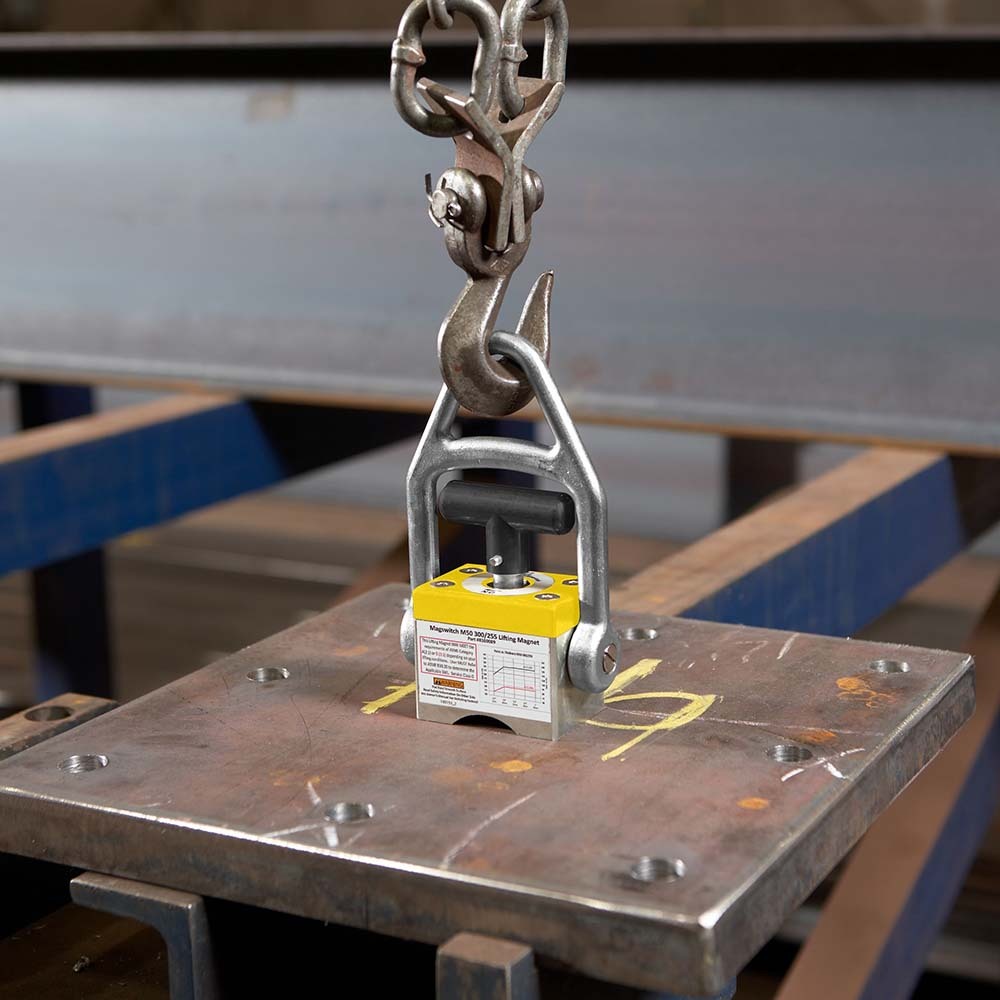

- Lifting flat and round steel from the top or the side
Features
- Mechanical on/off switch, so no power source is needed
- Safety locking handle holds the on and off positions

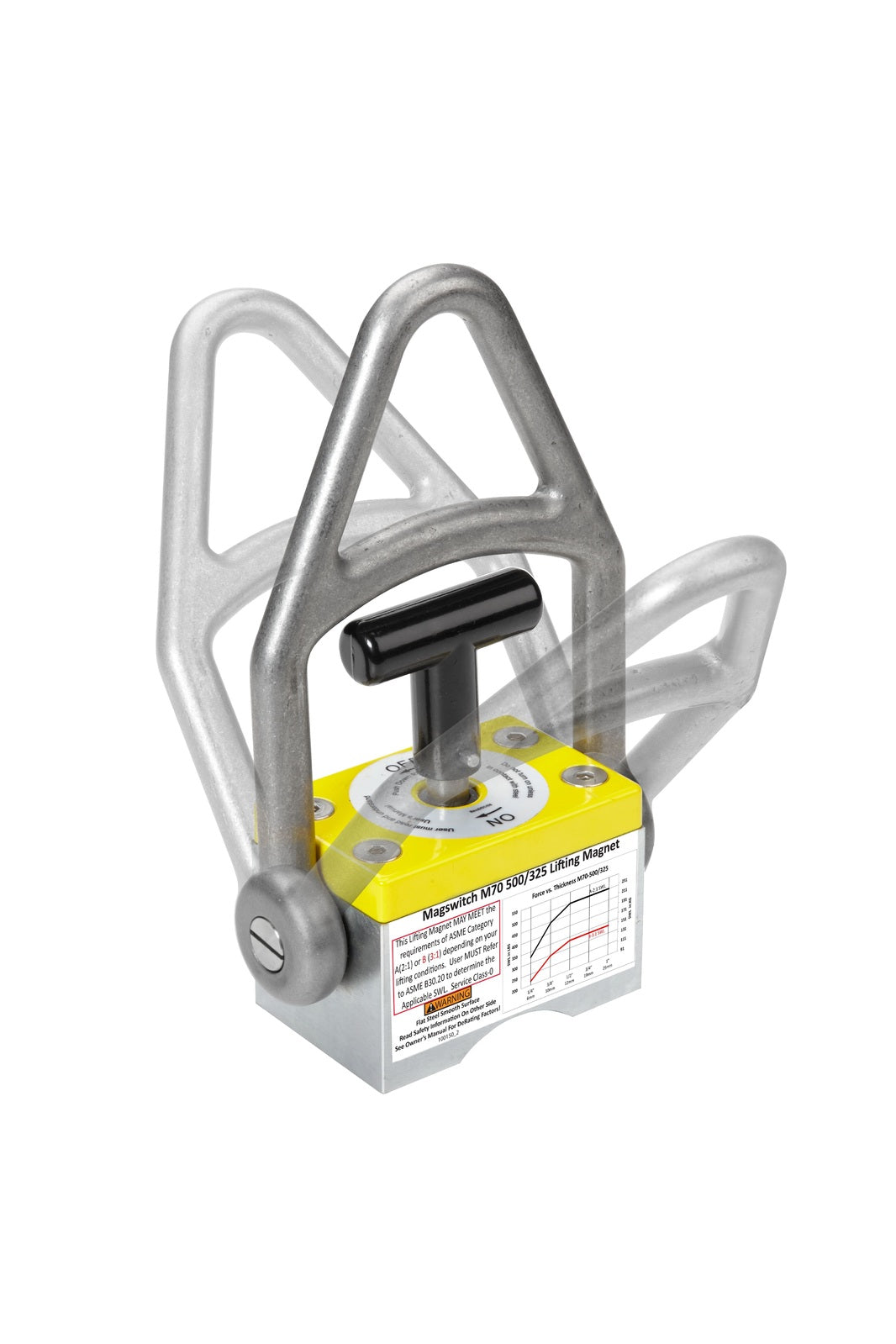

- Pivoting full-swivel hook lifts from the top or the side
- Holds flat and round steel and grips thin material and uneven surfaces
- Maximum breakaway of 265kg (584 lb), a lab figure and not a safe working load
- Maximum safe shear of 31.8kg (70 lb), which is the sideways pull along the steel surface
- Light at 2.0kg (4.4 lb) net weight
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Model | MLAY600 |
| Part number | 8100089 |
| Type | Switchable lifting magnet with swivel hook |
| Maximum breakaway | 265kg (584 lb) |
| Safe working load (3 to 1) | 88kg (194 lb) |
| Maximum safe shear | 31.8kg (70 lb) |
| Full saturation thickness | 12.7mm |
| Magnet size | 50mm |
| Net weight | 2.0kg (4.4 lb) |
| Overall height | 184.0mm |
| Pole footprint | 75.0 x 51.5mm |
| Operation | Mechanical on/off, no power source |
| Test conditions for breakaway | 2" thick SAE1018 steel, surface roughness 63 micro inches |
| Warning | Do not operate unless in contact with a ferrous target |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Magswitch MLAY600 Lifting Magnet
SKU: A0159632 | Model: 8100089
The MLAY600 (part 8100089) is a light-duty switchable lifting magnet for thin sheet and tight spaces. It has a 3:1 safe working load of 88kg (194 lb), a maximum breakaway of 265kg (584 lb) and weighs 2.0kg (4.4 lb). Maximum breakaway is a lab figure on thick, clean, flat steel and is not a safe working load.
